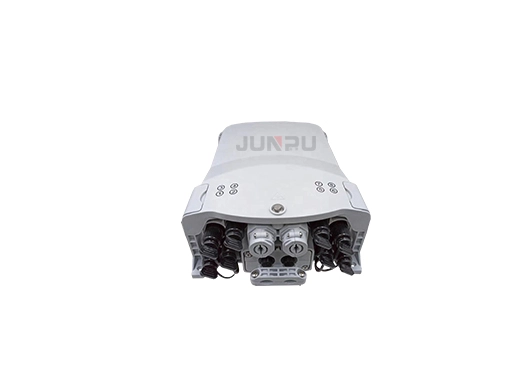

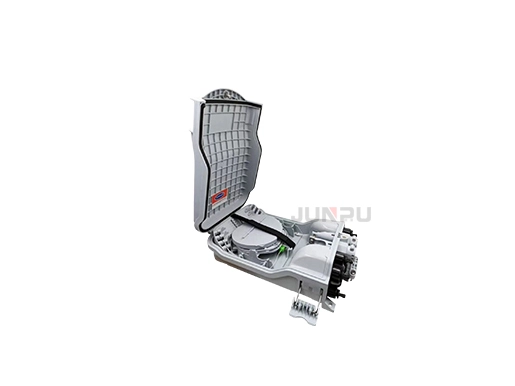

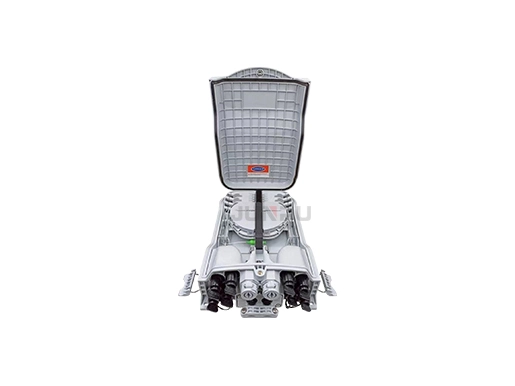

FODB-8SX 8 Core Outdoor Fiber Distribution Box

FODB-8SX 8 Core Outdoor Fiber Distribution Box

As the most advanced FTTX network distribution node equipment, the pre connected optical distribution box provides fast and reliable connection, good protection and management for the FTTX network.


Specifications of FODB-8SX 8 Core Outdoor Fiber Distribution Box

ItemSpecificationRemark
MaterialPC+ABS
Metal accessory materialsHigh-quality stainless steel

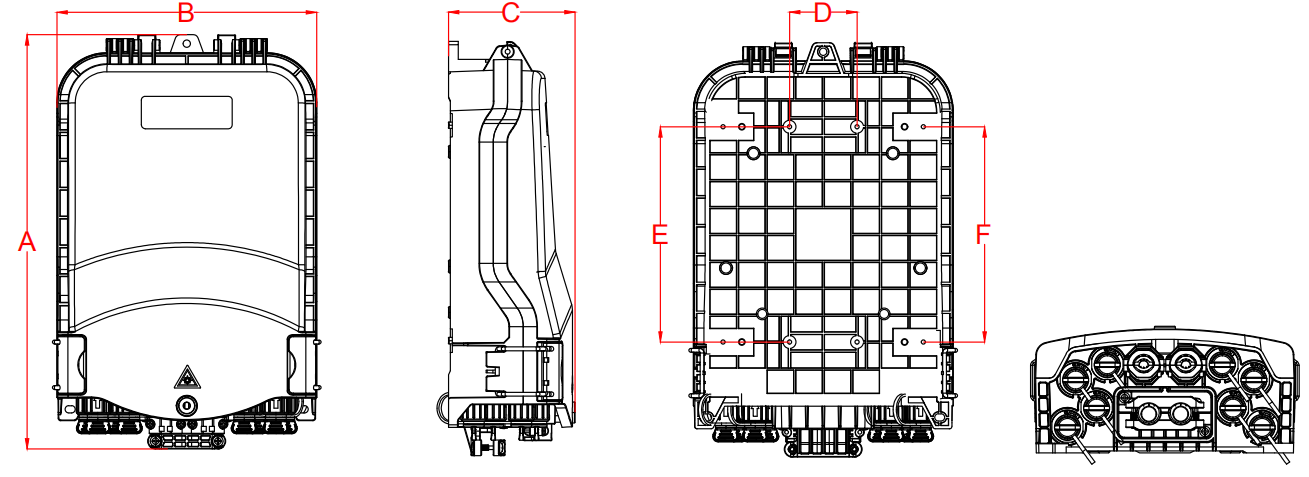

External dimensions (mm)319.3*200*97.5 (A*B*C)
Installation hole position (mm)52*166*166 (DxExF)
Size and quantity of fiber optic cable holes1 elliptical fiber optic cable entry, 2 derived fiber optic cable entries, and 8 pre connected adapters
Capacidad de fusión (Max)48Tray A, 12x4=48, 2-layer heat shrink splice protection handle.
64Tray B, 8x8=64, 1-layer heat shrink splice protection handle.
96Tray C, 8x12=96, 1-layer heat shrink splice protection handle.
96Tray D and Tray E, 24x4=96, 2-layer heat shrink splice protection handle.
108Max:1C+4D=108
Micro PLC Splitter1x2Centrifuge size: 60x7x4mm.
1x4It can be installed in both A-type and E-type junction boxes, with one for each junction box.
1x8
1*16Centrifuge size: 60x12x4mm.

It can be installed in both A-type and E-type junction

boxes, with one for each junction box.

Fiber optic cable diameterΦ8~Φ14
Through uncut ports (mm)
Fiber optic cable sizeΦ16
IP protection levelIP65

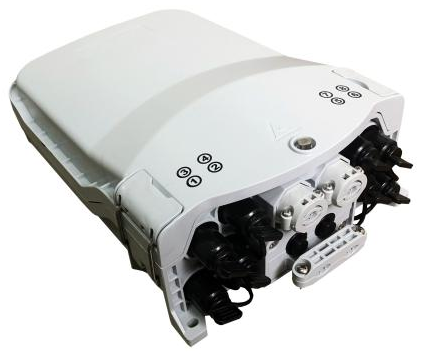

FODB-8SX

Pre connected fiber optic cable distribution box


odb fiber



Application Environment of FODB-8SX 8 Core Outdoor Fiber Distribution Box

Item

Value

working temperature

-40 ºC~+65 ºC

Installation temperature

-15 ºC~+40 ºC

Storage temperature

-45 ºC~+75 ºC

atmospheric pressure

≤85% (+30℃)

relative humidity

70KPa~106Kpa


Features of FODB-8SX 8 Core Outdoor Fiber Distribution Box

  • Advanced structural design, easy operation, and reasonable routing.

  • Material: PP or PC+ABS.

  • Damp proof, waterproof, dustproof and anti-aging.

  • Protection level IP65.

  • oval entry, 2 derivative product entries, and 8 pre connected adapters

  • splicing trays.

  • Installation method: Install on a pole, in the air, or on a wall.

  • Pallets can be equipped to accommodate the storage of 50 meters and 5 millimeters of circular cables.
