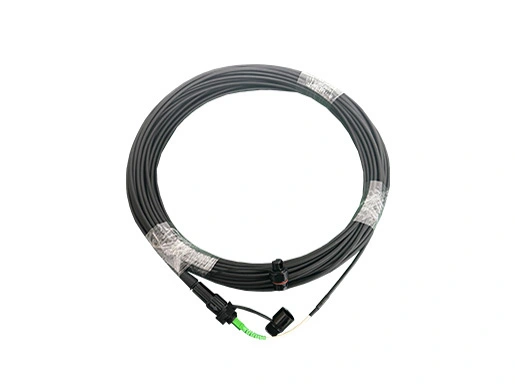

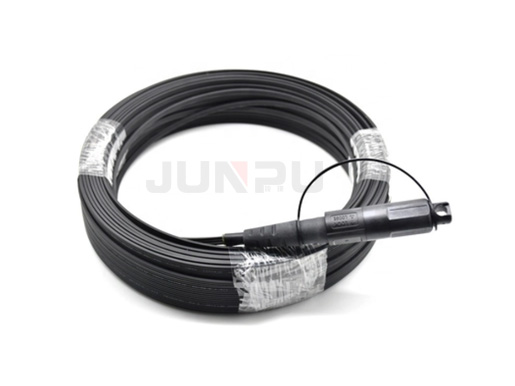

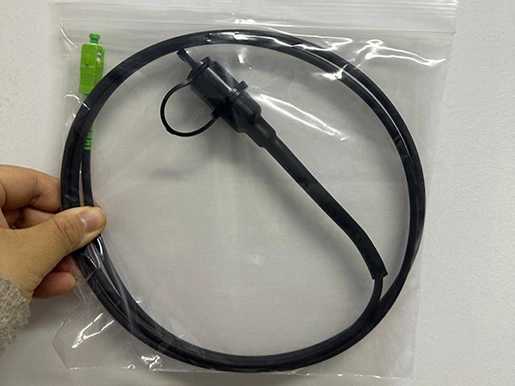

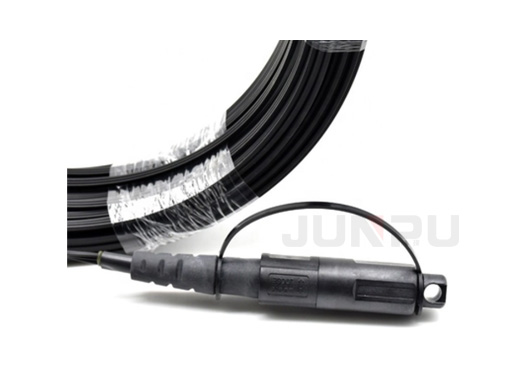

Pre-connected MINI SC Drop Cable with optitap Connector

Pre-connected MINI SC Drop Cable with optitap Connector

The H optitap Connector SC/APC-SC/APC drop cable adopts anti-vibration design and provides watertight seal to the connector. it helps customers deploy the drop cable easy and fast by plug and play (no splicing) in the outside plant. In addition, it ensures high network reliability and durability.

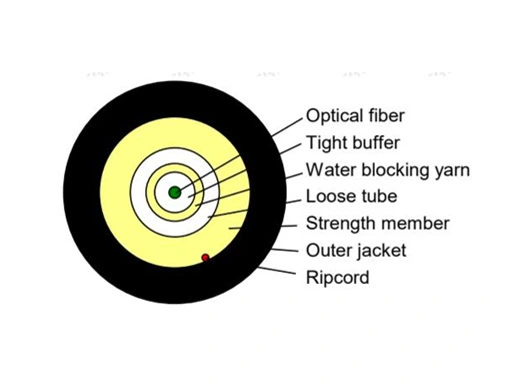

Specifications of Pre-connected MINI SC Drop Cable with optitap Connector

NO.ItemsUnitSpecification
G.657A2
1Mode Fiel Diameter1310nmμm8.6±0.4
1550nmμm9.6±0.5
2Cladding Diameterμm125.0±0.7
3Cladding Non-Circularity%≤0.7
4Coating Diameterμm245±5
5Attenuation(max.)1310nmdB/km≤0.4
1550nmdB/km≤0.3
6Tight-buffered FiberFiber counts1
Diameter(mm)0.9±0.05
Tight buffer colorBlue
7Strength MemberMaterialAramid yarn and water blocking material
8Inner cableDiametermm2.0±0.1mm
9Inner sheathThicknessmm≥0.4mm
MaterialLSZH
10Outer sheathThicknessmm≥0.8mm
MaterialLSZH
ColorBlack
11Ripcord (1pcs)ColorRed
12Cable diametermm5.0±0.2mm


Features of Pre-connected MINI SC Drop Cable with optitap Connector

  • Fast deployment, plug and play

  • Double locked anti-vibration design

  • Easy to install and uninstall

  • Low insertion loss: less than 0.3dB

  • Waterproof meet IP68













Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.
