Passive Optical Receiver

Passive Optical Receiver

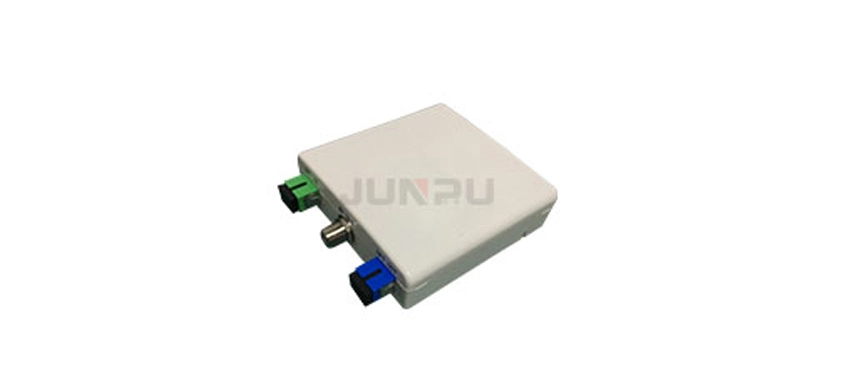

JP-1000W CATV converter for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=68dBuV, economic, flexible application integration, application of fiber to the home network.

Types of Passive Optical Receiver

Key Components of A Passive Optical Receiver

1. Photodiode: The photodiode is the primary light-sensitive component in a passive optical receiver. It converts incoming optical signals into electrical current. There are different types of photodiodes used in passive optical receivers, with the most common being PIN (positive-intrinsic-negative) photodiodes and avalanche photodiodes (APDs). PIN photodiodes are suitable for lower-speed applications, while APDs are employed in high-speed and long-distance communication systems due to their higher sensitivity and gain.


2. Optical Filter: An optical filter is often integrated into passive optical receivers to filter out unwanted optical wavelengths or noise. These filters help ensure that only the desired signal wavelength is detected by the photodiode, improving the receiver's signal-to-noise ratio (SNR) and overall performance. Filters can be implemented using various technologies, such as thin-film interference filters or fiber Bragg gratings, depending on the specific application and wavelength requirements.


3. Signal Processing Electronics: Passive optical receivers include signal processing electronics to amplify, condition, and sometimes digitize the electrical output from the photodiode. These electronics help boost the weak electrical signal generated by the photodiode, compensate for losses in the optical path, and ensure that the signal is suitable for further processing or transmission. Signal processing may also involve equalization and error correction to enhance the quality of the received signal.


These three key components work together to receive, process, and convert optical signals into electrical signals in passive optical receivers. The selection and integration of these components are critical for achieving optimal receiver sensitivity and overall system performance in optical communication systems.


Why Choose A Passive Optical Receiver?

1. Cost Efficiency: Passive optical receivers are cost-effective due to their simple design with fewer active components, making them an economical choice for optical communication systems.


2. Reliability: They have fewer components that can fail, resulting in higher reliability and longer operational lifespans, which is crucial for critical applications.


3. Low Power Consumption: Passive optical receivers typically consume less power compared to active counterparts, reducing energy costs and heat generation in optical network infrastructure.


4. Compatibility: They are compatible with various optical wavelengths and standards, providing flexibility for different network architectures and protocols while simplifying maintenance and upgrades.

Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.
