EDFA Optical Amplifier & WDM PON Combiner

An optical amplifier in optical fiber communication is a device used to amplify optical signals without converting them into electrical signals. It boosts the strength of optical signals to extend transmission distances in fiber optic networks. Optical amplifiers are commonly used in long-haul communication systems and can amplify multiple wavelength signals simultaneously.

Types of JUNPU Optical Amplifier

EDFA WDM PON

EDFA

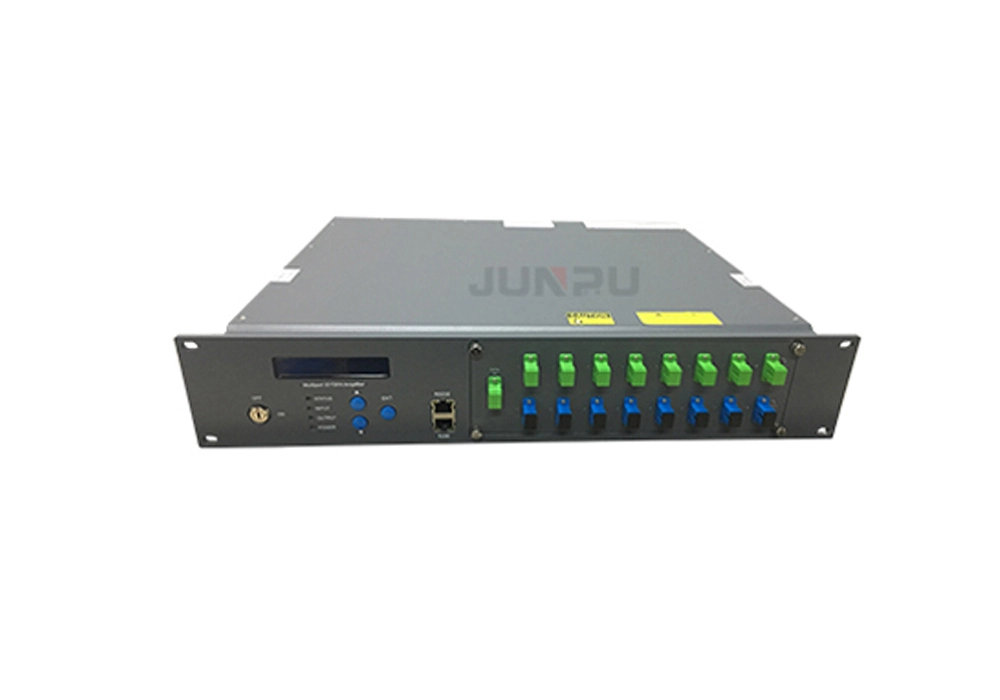

JP6420EAP EDFA WDM PON

Technical Specifications: JUNPU EDFA Optical Amplifier & WDM PON Combiner Series

This technical comparison table outlines the performance parameters, port configurations, and network applications of JUNPU's high-performance fiber optic amplifiers, helping telecom engineers and ISPs make precise equipment selections.

Product Model / Type	Operational Wavelength	Ports / Outputs	Application Scenario	Key Technical Features
8 Ports XGS-PON EDFA WDM Combiner	Pass-through: 1310/1490/1270/1577nm	8 Ports (Input) + 8 Ports (COM)	Next-Generation XGS-PON FTTH Networks	• Low noise figure ($P_{in}=0\text{dBm}$)
	CATV: 1540~1563nm			• Integrated WDM for triple-play
				• High-density 1U rack-mount

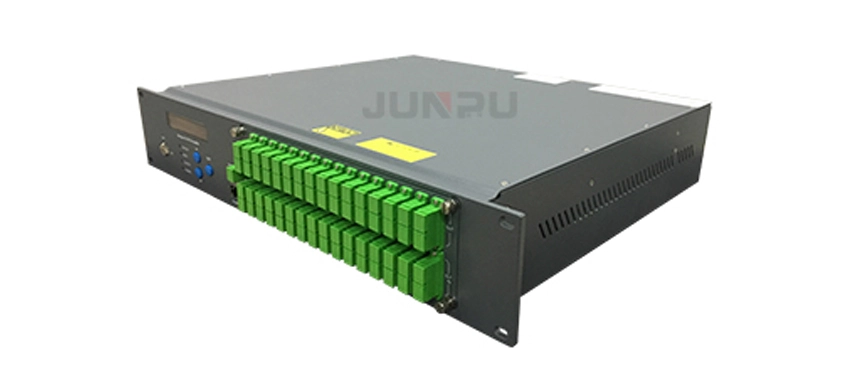

16 Outputs 1550nm EDFA WDM	1540 ~ 1563nm	16 Output Ports	Triple-Play / Coaxial CATV Networks	• Stable total output power up to 40dBm
				• Dual switching power supply
				• SNMP network management support

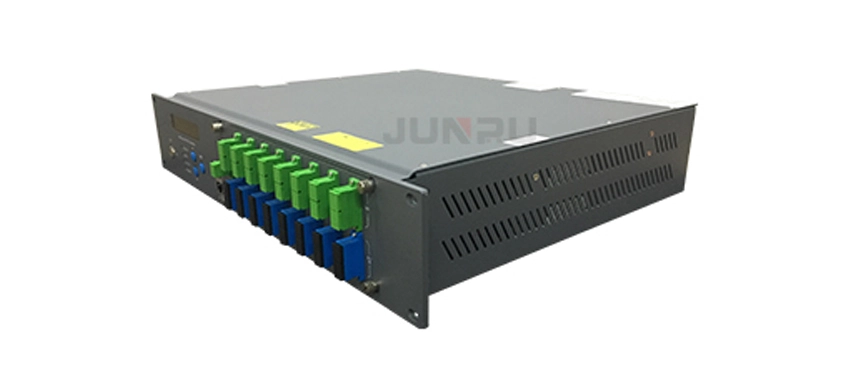

1550nm WDM EDFA 8 Ports XGPON Amplifier	Pass-through: 1310/1490/1270/1577nm	8 Ports	XG-PON & GPON Migration	• Perfect optical characteristics
	CATV: 1550nm			• Built-in reliable APC, ATC, and AGC circuits
				• Front panel LCD status display
JP1623EAP EDFA WDM PON	1550nm + 1310/1490nm	16 / 32 Ports Optional	Multi-Dwelling Unit (MDU) FTTH	• Flexible output power adjustment (-3~0dB)
				• Carrier-grade reliability
				• High optical isolation ($>40\text{dB}$)
XG(S)-PON WDM EDFA 32 Puertos	1550nm Multiplexed with 1270/1310/1490/1577nm	32 Ports	Large-scale GPON/EPON/XGS-PON FTTH	• Ultra-high power Er-Yb co-doped fiber tech
				• 32 multi-ports to save central office space
				• Smart cooling system with dual fans
JP0110OEA Outdoor EDFA	1540 ~ 1565nm	1 or 2 Outputs (Customized)	Field / Outdoor HFC Infrastructure	• IP65 weatherproof cast aluminum housing
				• Wide operating temperature range
				• Built-in lightning protection ($>6\text{kV}$)

Advantages of Optical Amplifier

Signal Amplification:

Optical amplifiers in fiber optic communication equipment can amplify optical signals without the need for electrical conversion, preserving the integrity of the signal and allowing for longer transmission distances without degradation.

Wavelength Multiplexing:

Optical amplifiers are capable of amplifying multiple wavelengths simultaneously, enabling wavelength-division multiplexing (WDM) and increasing the capacity of fiber optic networks.

Regeneration of Signals:

Optical amplifiers in optical fiber communication can regenerate weak or degraded signals, ensuring a high-quality and reliable transmission in long-haul communication systems.

Simplified Network Architecture:

By using optical amplifiers, the need for frequent signal regeneration or conversion to electrical signals is minimized, leading to a simpler and more efficient network design.

Enhanced Network Flexibility:

Optical amplifiers can be easily integrated into existing fiber optic systems, allowing for flexible network expansion and capacity upgrades without the need for major infrastructure changes.

What is the application of an optical fiber amplifier?

A fiber optic amplifier is a device used to amplify optical signals, mainly used to enhance the strength and transmission distance of optical signals. Its functions and functions include:

Enhanced optical signal strength: Fiber optic amplifiers can amplify input optical signals, resulting in higher optical power output, thereby improving signal transmission quality and distance.

Expanding the bandwidth of optical signals: Fiber amplifiers can amplify the spectral range of optical signals, allowing them to have a wider frequency band and transmit more information.

Improving transmission speed: By increasing the strength and bandwidth of optical signals, fiber amplifiers can improve the transmission speed of optical signals, and accelerate the speed and efficiency of data transmission.

Enhanced signal quality: Fiber optic amplifiers can reduce attenuation and distortion of optical signals during transmission, improving signal quality and stability.

Fiber amplifiers play a crucial role in fields such as optical communication, optical networks, and optical sensing, and are one of the key devices for achieving high-speed and high-quality optical signal transmission.

JUNPU Products Recommendation

JUNPU's hot sale fiber optic communication equipment

JP1623EAP EDFA WDM PON

XG(S)-PON WDM EDFA 32 Puertos

Internal Modulated CATV Optic Transmitter

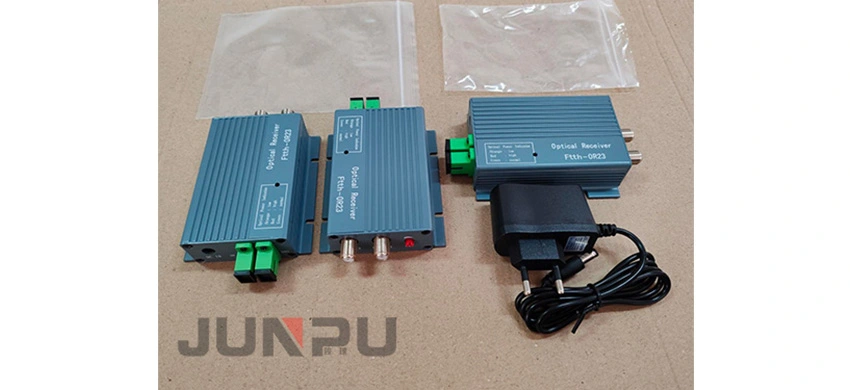

FTTH XGS-PON Optical Receiver

FAQs of Optical Amplifier

How does an optical amplifier work?

Optical amplifiers work by using a pump laser to excite the rare earth ions in the optical fiber. These ions then transfer their energy to the signal, amplifying it without the need for electrical conversion.

What are the types of optical amplifiers?

The main types of optical amplifiers are erbium-doped fiber amplifiers (EDFAs), raman amplifiers, and semiconductor optical amplifiers (SOAs).

What are the applications of optical amplifiers?

Optical amplifiers are used in long-haul telecommunications networks, cable TV systems, submarine communications, and high-speed data transmission applications.

Can optical amplifiers amplify multiple wavelengths simultaneously?

Yes, optical amplifiers can amplify multiple wavelengths simultaneously, allowing for wavelength-division multiplexing (WDM) in fiber optic networks.

Can optical amplifiers compensate for signal loss in fiber optic networks?

Yes, optical amplifiers can compensate for signal loss due to attenuation in fiber optic networks, allowing signals to travel longer distances without degradation.

What is the difference between a 1550nm CATV EDFA and a WDM PON EDFA?

A standard 1550nm CATV EDFA is dedicated solely to amplifying single-wavelength 1550nm video signals to extend their reach in HFC networks. In contrast, a WDM PON EDFA (such as the JUNPU 1550nm EDFA WDM 16 Ports Optic Amplifier) built-in a WDM multiplexer. It combines the 1550nm analog/digital TV signal with 1310/1490nm or 1270/1577nm data streams from an OLT, allowing triple-play services to be delivered over a single fiber to the home (FTTH).

Why is low noise figure critical for fiber optic signal amplifiers in HFC networks?

In high-speed data and video transmission, a high noise figure degrades the Carrier-to-Noise Ratio (CNR), leading to snowy analog video or high bit error rates (BER) in digital systems. High-quality EDFA amplifiers utilize premium internal components and a precise optical design to keep the noise figure exceptionally low (typically under 5.0dB or 4.5dB). Maintaining a low noise figure ensures optimal signal clarity over long distances, which is why choosing a reliable optical amplifier manufacturer with strict quality control is crucial for telecom operators.

How do I choose between an indoor rack-mount EDFA and an outdoor optical amplifier?

The choice depends entirely on your deployment environment and network architecture:

Indoor Rack-mount EDFA: Designed for central offices or server rooms, typically in a standard 1U 19-inch chassis with dual hot-swappable power supplies and SNMP management.

Outdoor Field EDFA: Designed for rural or decentralized HFC distribution networks where no climate-controlled room is available. For these scenarios, you should deploy a ruggedized unit like the JP0110OEA Outdoor EDFA, which features an IP65 weatherproof cast aluminum housing to protect against extreme temperatures and moisture.

What are the core building blocks inside a commercial fiber optic communication system?

A standard optical link relies on several interconnected active and passive components working together. Aside from the optical transmitters that generate the signal and the receivers that catch it, optical amplifiers in optical fiber communication serve as the baseline for compensating for attenuation over long distances. Understanding how these pieces interact is essential for network design; you can explore our comprehensive breakdown on the core components of a fiber optic communication system to learn more about optimization.
