JUNPU XG(S)-PON WDM EDFA 32 Puertos has a stable function.

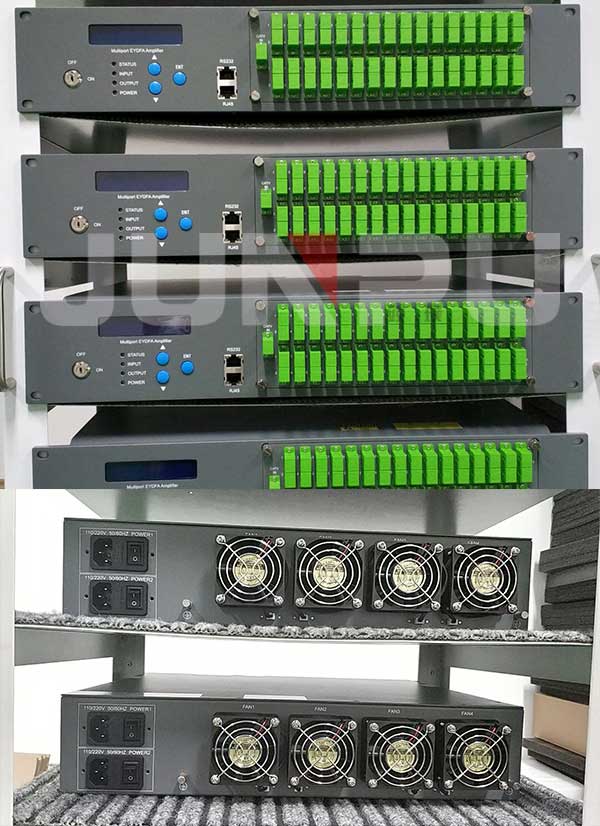

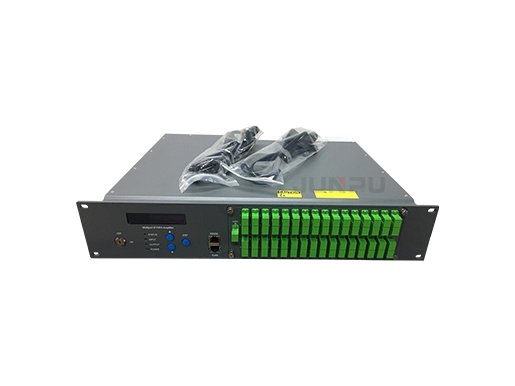

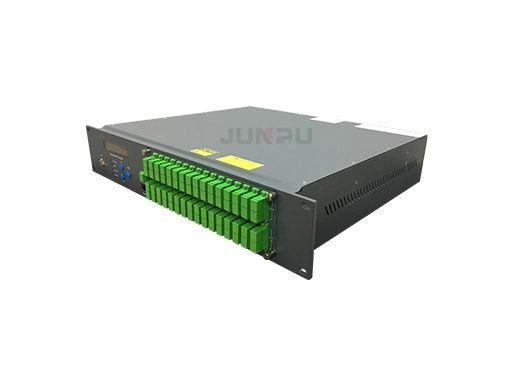

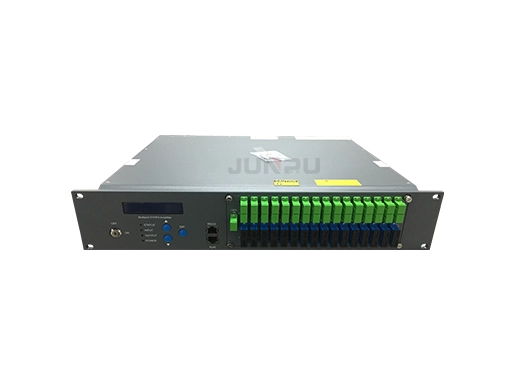

XG(S)-PON WDM EDFA 32 ports at the front panel offer the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical ports of the optical amplifier can be installed in the front panel or back panel.
| Performance | Index | Supplement | ||||
| Min. | Typ. | Max. | ||||
| Optical feature | CATV operation wavelength | (nm) | 1540 | 1565 | CATV | |
| OLT pass wavelength | (nm) | 1310/1490 | ||||
| CATV pass wavelength loss | (dB) | 0.8 | 1550nm | |||
| OLT pass wavelength loss | (dB) | 0.8 | 1310/1490nm | |||
| CATV input power (Pi) | (dBm) | -10 | 10 | |||
| Number of output ports | (pcs) | 32 | 32 PORTS | |||
| Each port output power | (dBm) | 0 | 13 ~23dbm | 20dbm | ||
| Difference of each output power | (dB) | -0.5 | 0.5 | |||
| Output optical power monitoring | (dB) | -20 | ||||
| Output power adjustable range | (dBm) | -3 | 0 | |||
| Noise figure | (dB) | 4.5 | 5 | |||
| 5 | 6 | |||||
| Polarization dependence loss | (dB) | 0.3 | ||||
| Polarization dependence gain | (dB) | 0.4 | ||||
| Polarization mode dispersion | (ps) | 0.3 | ||||
1540~1565nm operating bandwidth for the optical amplifier.
Each output optical port is with built-in high-performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
Output is adjustable by buttons in the front panel or web SNMP, the range is down 4dBm.
Can be compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON.
Multi-port output, can built in 1310/1490/1550WDM.
Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB ).
Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
With laser key to turn on/off the laser.
Led displays the working condition of the machine.

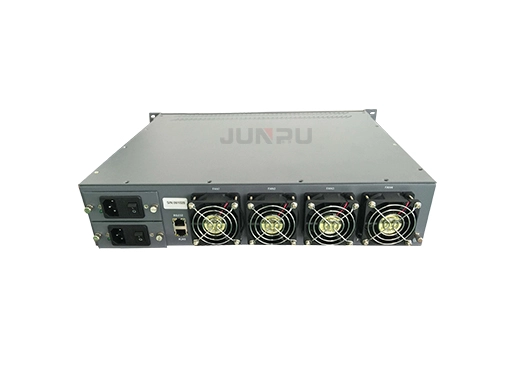

Dual power hot plug power supply for choice, 90V～250V AC or -48V DC.
FTTx PON
RFoG
