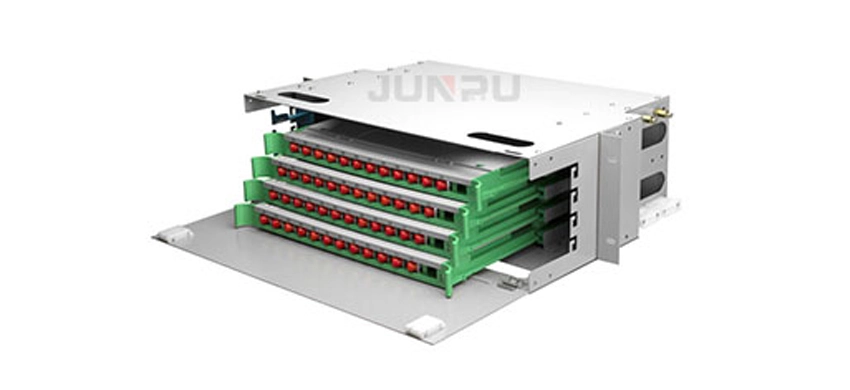

12-144 Core Optic Distribution Frame

12-144 Core Optic Distribution Frame

Our fixed type Patch panel can be applied in the branch connection of optical fiber termination;19" standard structure, rack mounted; Available for the adapters installation of FC,SC,ST,LC .The patch panel body is made of cold rolled steel sheet.

Fixed Type of Rack Mounted Standard Fiber Terminal Box provides maximum port number of 6, 12, 18, 24 or 48ports. It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination and storage. Each Terminal Box is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.

Types of 12~144 Core Optic Distribution Frame

Maintenance Tips of the 12~144 Core Optic Distribution Frame

Maintaining a 12~144 core optic distribution frame (ODF) is crucial to ensure the integrity of your fiber optic network. Here are four maintenance tips:


1. Regular Inspection:

Conduct routine visual inspections to check for loose connectors, damaged cables, or any signs of wear and tear. Inspect cable management and routing to ensure fibers are properly organized.


2. Cleanliness:

Keep the ODF environment clean and free of dust and debris. Regularly clean connectors and adapters using appropriate cleaning tools and solutions to prevent signal degradation.


3. Documentation:

Maintain accurate documentation of cable connections, splices, and patch panel configurations. Update records whenever changes are made to the ODF. This documentation aids in troubleshooting and future maintenance.


4. Preventative Maintenance:

Periodically check and tighten any loose components, such as cable glands, splice trays, or patch panels. Inspect the ODF's physical integrity, including its housing and mounting brackets, to ensure it remains secure.


Features of the 12~144 Core Optic Distribution Frame

1. High Core Capacity: Offers a broad range of core capacities from 12 to 144 or more, accommodating various fiber optic network sizes and configurations.


2. Efficient Cable Management: Provides effective cable routing, splicing, and termination options, optimizing fiber organization and reducing signal loss.


3. Scalability: Designed to scale with network growth, allowing for the addition of new fibers and components as needed.


4. Diverse Mounting Options: Available in wall-mounted, rack-mounted, and floor-standing configurations, providing flexibility for different installation environments and requirements.
