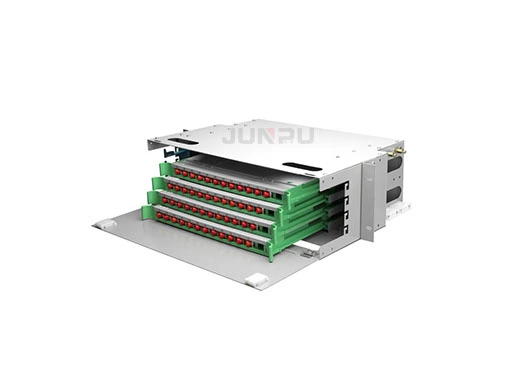

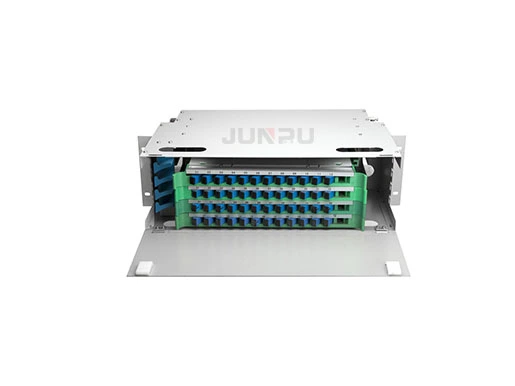

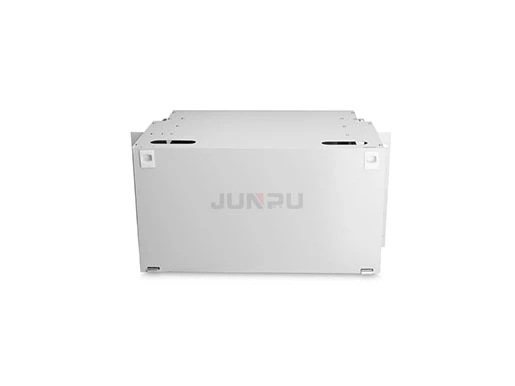

ODF-48 12-144 Core Optic Distribution Frame

ODF-48 12-144 Core Optic Distribution Frame

Our fixed type Patch panel can be applied in the branch connection of optical fiber termination;19" standard structure, rack mounted; Available for the adapters installation of FC,SC,ST,LC .The patch panel body is made of cold rolled steel sheet.

Fixed Type of Rack Mounted Standard Fiber Terminal Box provides maximum port number of 6, 12, 18, 24 or 48ports. It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination and storage. Each Terminal Box is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.


Specifications of ODF-48 12-114 Core Optic Distribution Frame

Fiber Capacity of panel12-144 core(12 24 48 port usually)
Panel ConnectorSC LC ST FC
TypeSliding Fixed
Dimension19'' 1U/2U/3U/4U...
MaterialCold Rolled Steel or Aluminum
Storage Temperature-45~+65℃
Thickness1.0 1.2 mm
1.0 1.2 mmCable ties, mounting ear screws, and spiral wrap tube


Features of ODF-48 12-114 Core Optic Distribution Frame

  • Standard size, light weight and reasonable structure

  • Splice tray inside changeable

  • 19-inch standard size, light in weight and robust structure

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • Front mark on the plate is easy for identification and operation

  • 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operatio


Application of ODF-48 12-114 Core Optic Distribution Frame

  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WA
