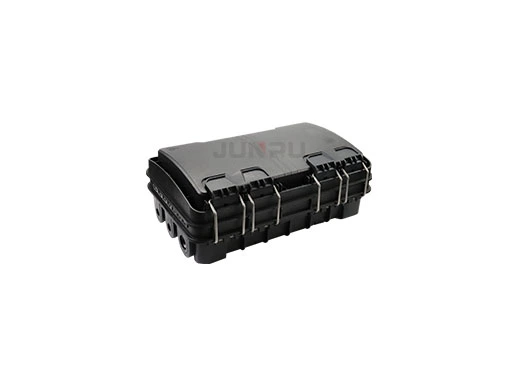

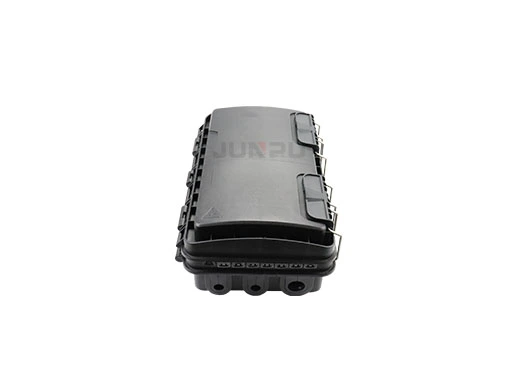

AFAT-002 IP68 Fiber Optical Splice Closure

AFAT-002 IP68 Fiber Optical Splice Closure

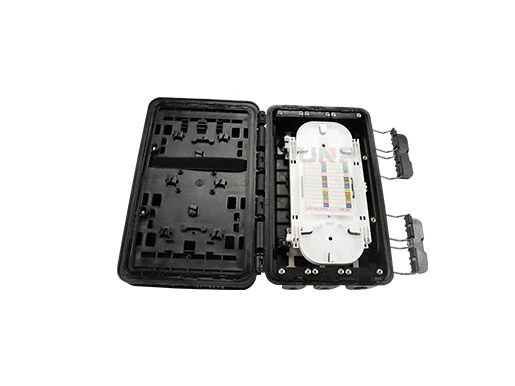

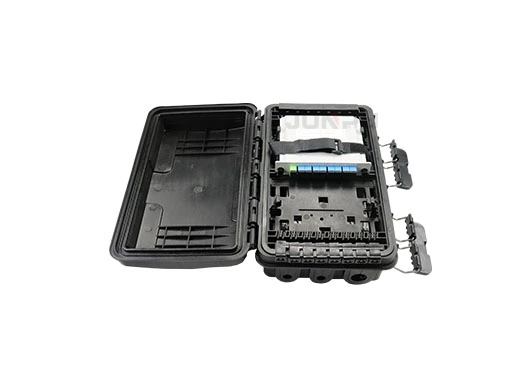

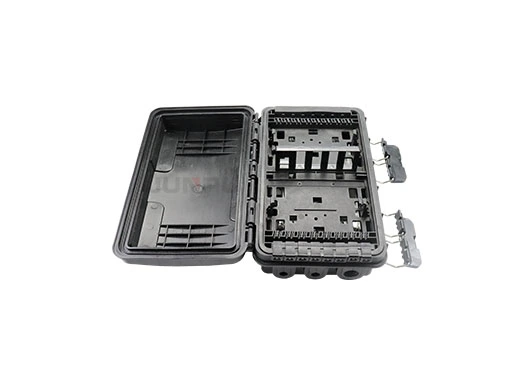

This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.


Specifications of AFAT-002 IP68 Fiber Optical Splice Closure


ModelJP-I2-16OPP-AJP-I2-16OPP-BJP-I2-96S
Dimension (mm)285*175*110285*175*110285*175*90
Cable diameter (mm)Φ7-φ18



Cable port2pcs 8-20mm round ports,4pcs 5-16mm round cable, 16pcs 3-7mm drop cable ports2pcs 8-20mm round ports,4pcs 5-16mm round cable

Max. Split ratio2pcs 1x8 steel tube splitter1pcs 1x8 LGX splitterN/A
Max. Adapter number18pcs9pcsN/A
Max. Splice tray1pc4pcs

Max. Fusion splice24 cores96 cores


Features of AFAT-002 IP68 Fiber Optical Splice Closure

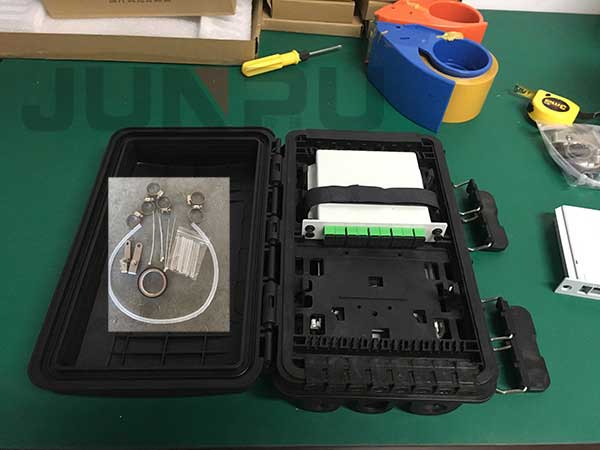

  • The product is made of high-quality impact resistant plastic and has a standard user interface that can be re-opened. Can accommodate two 1x8 PLC splitter LGX module or steel tube type;

  • Anti-ultraviolet,anti- impact and waterproof function;

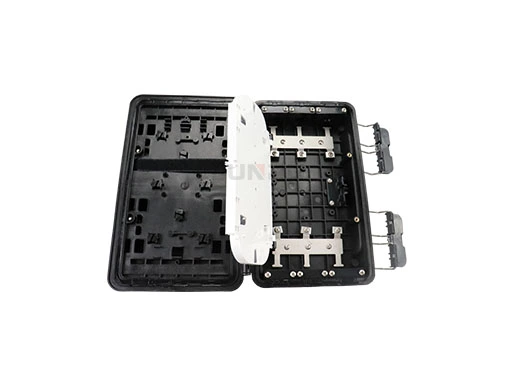

  • Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing; Fiber optic cable can go in and out of the box without cut the cable.


Technical Parameters of AFAT-002 IP68 Fiber Optical Splice Closure

  • Optical fiber radius of curvature: ≥40mm Splice tray additional loss: ≤0.1dB Temperature range: -40°C ~ +60°C

  • Anti side pressure: ≥2000N/10cm Impact resistance: ≥20N.m

  • Protection class: IP65
