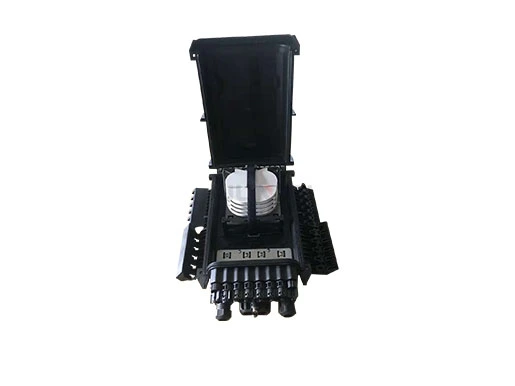

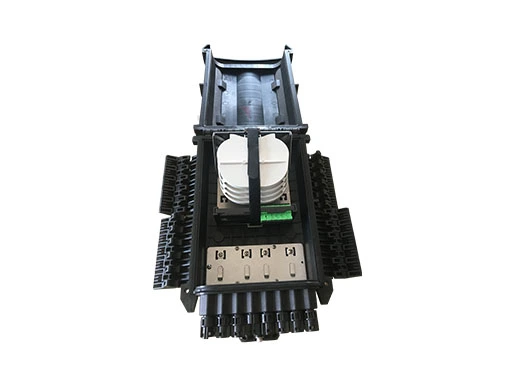

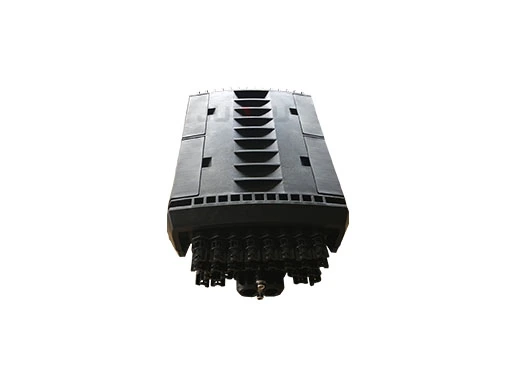

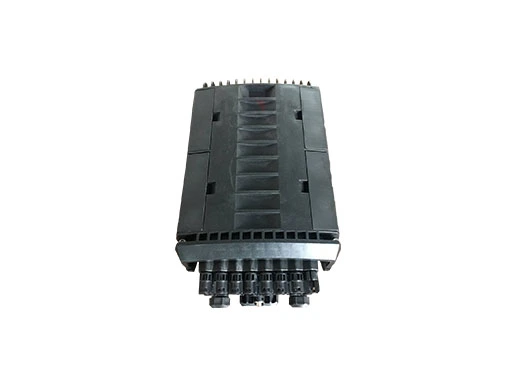

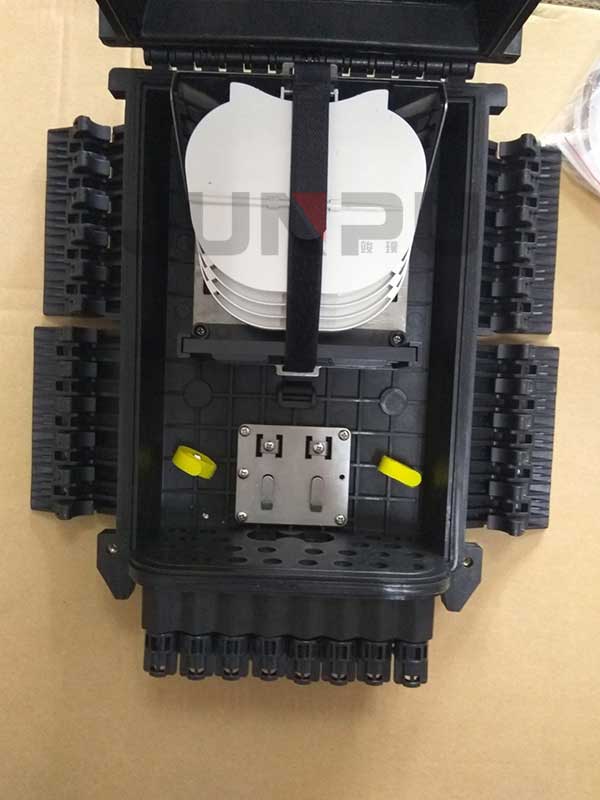

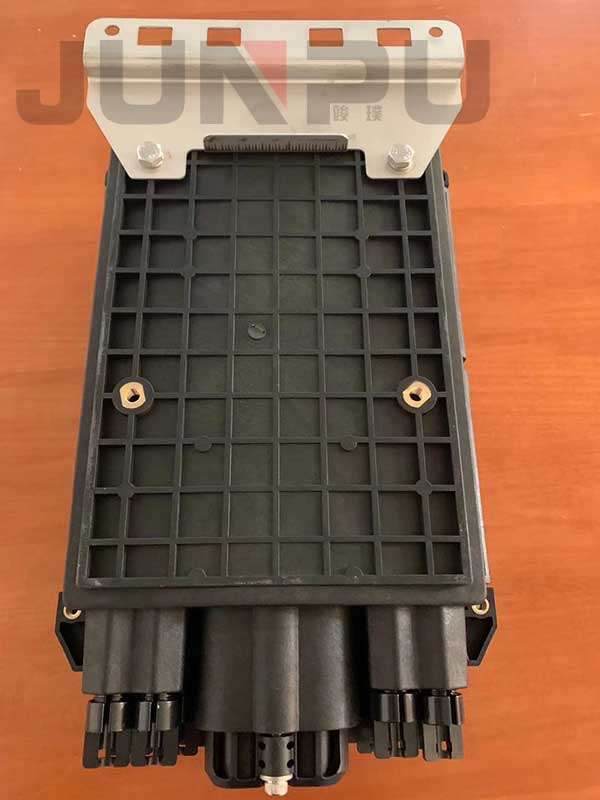

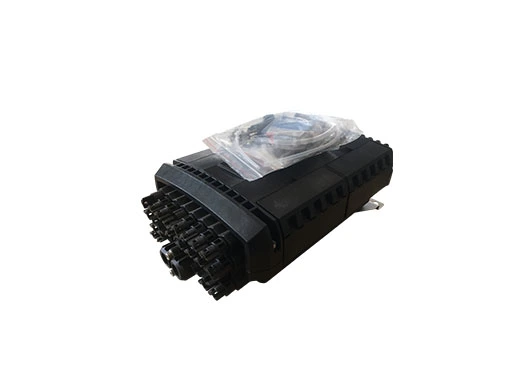

FATC-001 IP68 Fiber Optical Splice Closure

FATC-001 IP68 Fiber Optical Splice Closure

fiber optic splice case

Ftth drop cable type fiber optic splice & splitter closure features with ruggedness, which is test under harsh conditions and stand up to even most sever conditions of moisture, vibration and extreme temperatures. Humanized design helps users get better experience and safer operating environment.


Specifications of FATC-001 IP68 Fiber Optical Splice Closure


Dimension(mm)380×245×130Max. capacity(Single fiber)16
Weight(kg)4.5~5Sealing typeMechanical
Cable ports1 input cable port for un-cut cable from diameter from10~17.5mm. 2 output cable ports for cable diameter from 8~17.5mm.Single splice tray capacity(Single fiber)16
16 output cable ports for cable diameter less than 4mm.
Splice tray quantity2pcs


Features of FATC-001 IP68 Fiber Optical Splice Closure

  • Dis-mountable adaptor panel

  • Support midspan termination

  • Easy operation and installation

  • Rotatable and dis-mountable splice tray for easy splicing


Application of FATC-001 IP68 Fiber Optical Splice Closure

  • Wall mounting & pole mounting installation

  • Suitable for 2*3mm Indoor Ftth Drop Cable and Outdoor Figure 8 ftth drop cable
