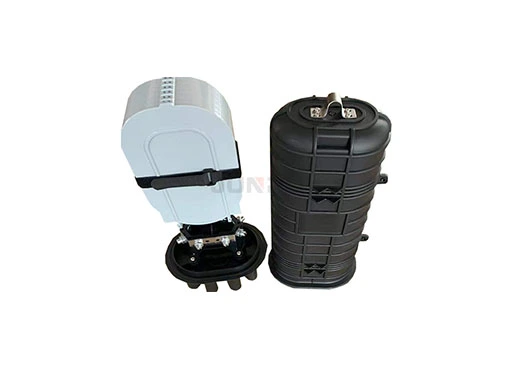

FOSC-288F Optic Fiber Splice Enclosure

FOSC-288F Optic Fiber Splice Enclosure

DG206 fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.


Specifications of FOSC-288F Optic Fiber Splice Enclosure


Dimensions and Capacity
Outside Dimensions (Height*Diameter)455mm*220mm
Weight (excluding outside box)3000g - 3600g

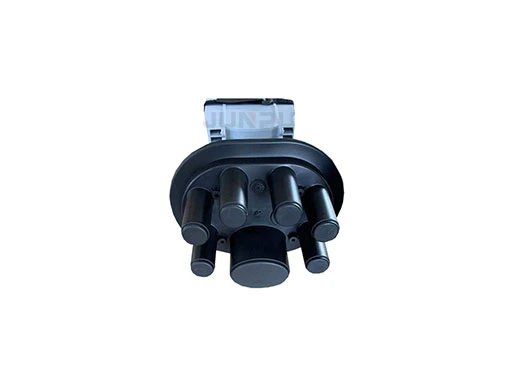

Number of Inlet / Outlet Ports7pieces in general
Diameter of Fiber Cable1-Φ65*40mm(one port); 6-Φ22mm( four ports)
Capacity of FOSCBunchy: 48 cores - 288 cores

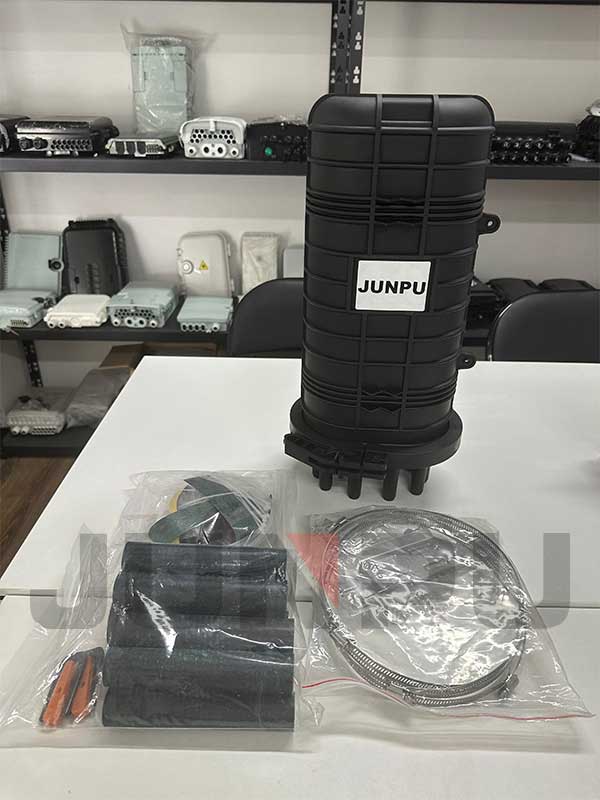

Main Components
Name of ComponentsQuantity
FOSC Cover1 piece
Splice Tray (FOST)Max. 6 trays (bunchy)
Base1 set
Plastic Hoop1 set
Seal Fitting1 piece
Earthing Deriving
Device1 set


Features of FOSC-288F Optic Fiber Splice Enclosure

  • The protection grade reaches IP 68.

  • Aerial and wall-mounting.

  • Ambient temperature ranges from -40 to 65℃.

  • The closure is of small volume, big capacity and convenient maintenance.

  • The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

  • The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

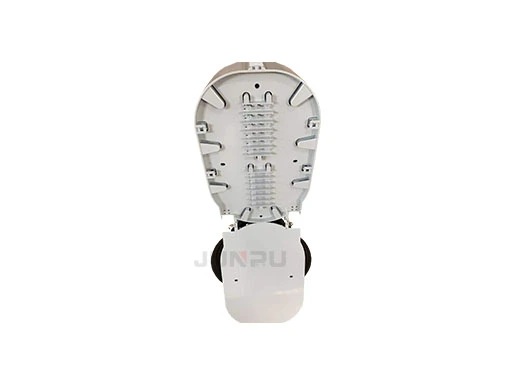

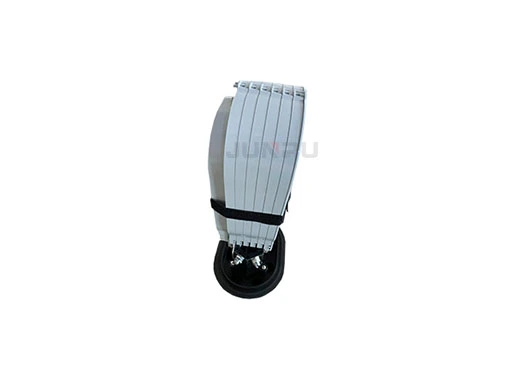

  • The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.

  • Heat shrink sealing.

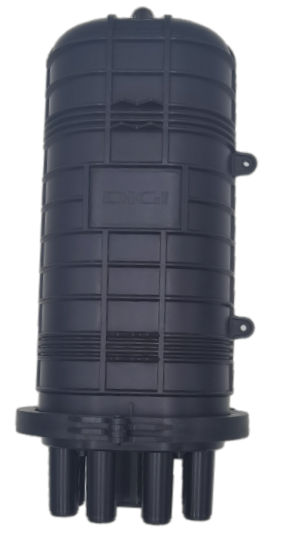

    optical fibre cable joint closure
