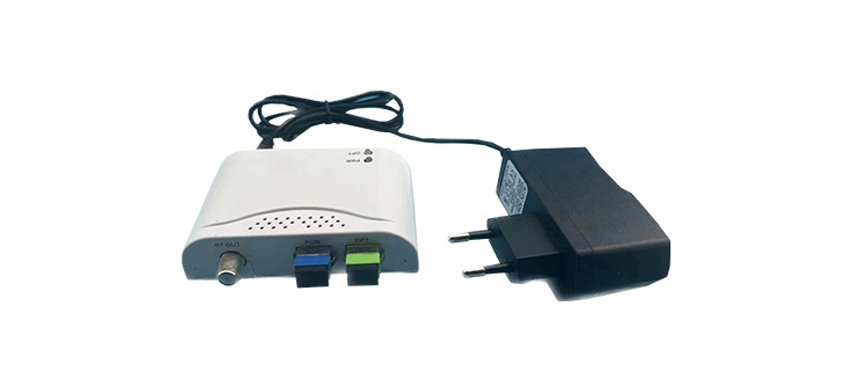

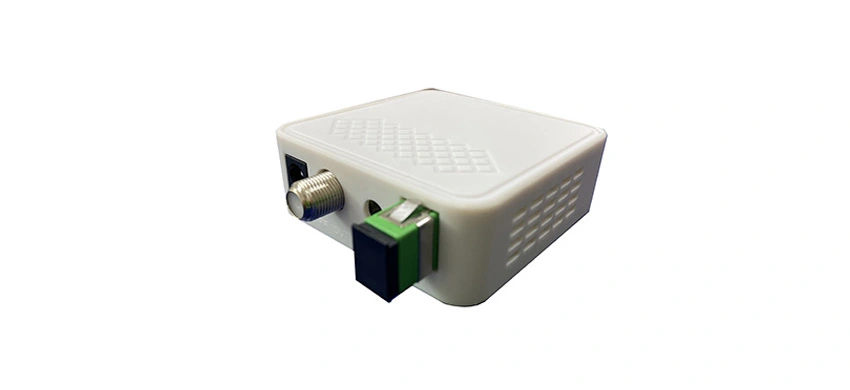

Active Optical Receiver

What Are the Differences Between the Active Optical Receiver and the Passive Optical Receiver？

1. Amplification:

Active Optical Receiver: Contains built-in amplification (usually with a transimpedance amplifier) to boost weak optical signals.

Passive Optical Receiver: Lacks amplification, relying solely on photodetectors to convert optical signals to electrical signals.

2. Complexity:

Active Optical Receiver: More complex with additional active components, requiring power and potentially more maintenance.

Passive Optical Receiver: Simpler, with fewer components, leading to lower power consumption and higher reliability.

3. Cost:

Active Optical Receiver: Typically more expensive due to the added components and circuitry.

Passive Optical Receiver: Generally more cost-effective due to its simplicity.

4. Applications:

Active Optical Receiver: Suitable for long-distance, high-speed, or low-signal-intensity applications where signal amplification is essential.

Passive Optical Receiver: Ideal for short-distance or high-signal-intensity applications, such as local area networks (LANs) or passive optical networks (PONs).

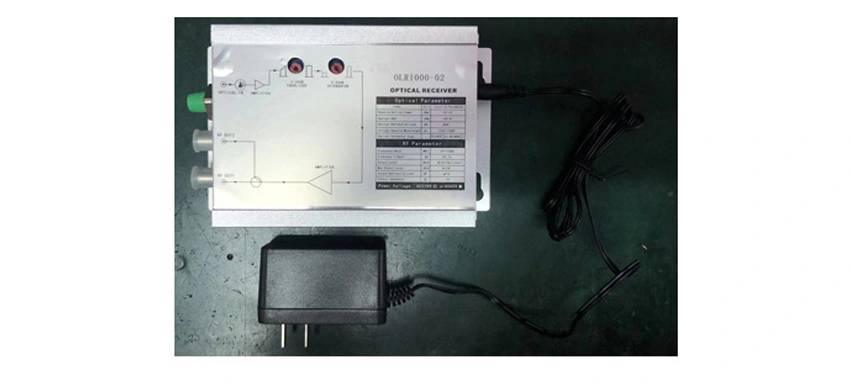

Working Principle of An Active Optical Receiver

The working principle of an active optical receiver involves several key steps:

1. Light Reception: The receiver's photodetector (often a PIN or APD diode) receives incoming optical signals and converts them into electrical current.

2. Signal Amplification: To overcome signal attenuation over long distances, the electrical current is passed through a transimpedance amplifier (TIA). The TIA converts the current into a voltage signal and amplifies it.

3. Signal Conditioning: The amplified electrical signal may undergo further conditioning processes, such as equalization and filtering, to improve signal quality.

4. Signal Conversion: The conditioned electrical signal is then processed by an analog-to-digital converter (ADC) if digital data is required, or it can be directly used as an analog signal.

4. Data Recovery: In digital systems, the recovered signal is further processed using clock recovery and data decoding techniques to extract the original data stream, which can then be used by the receiving device or transmitted further in the network.

Mitigating OBI in High-Density Fiber Networks: The Advantage of RFoG Mini Node Technology

RFoG (Radio Frequency over Glass) is a prominent topology enabling traditional cable operators to deploy true fiber-to-the-home architectures while keeping their backend headend infrastructure intact. However, high-density RFoG clusters frequently suffer from Optical Beat Interference (OBI), a severe phenomenon that occurs when multiple subscriber mini nodes attempt to transmit upstream RF signals simultaneously on the exact same wavelength. Overcoming OBI requires deploying smart RFoG mini nodes with optical squelch capability or dynamic wavelength shifting. Partnering with an experienced optical communication components manufacturer allows ISPs to procure receivers that intelligently mute their upstream lasers when no active RF traffic is detected, completely eliminating OBI-induced packet loss and ensuring seamless compatibility with DOCSIS 3.1 and next-generation interactive networks.

Frequently Asked Questions on Active Optical Receivers & Mini Nodes

What is the fundamental difference between an active optical receiver and a passive mini node?

The deciding factor between the two architectures comes down to signal amplification and power requirement:

Active Optical Receiver: Contains internal amplification stages (such as a transimpedance amplifier and RF amplifier modules). It requires an external power supply (5V or 12V DC) to boost weak input optical paths down to -21dBm, outputting a high RF level suitable for driving coaxial distribution networks.

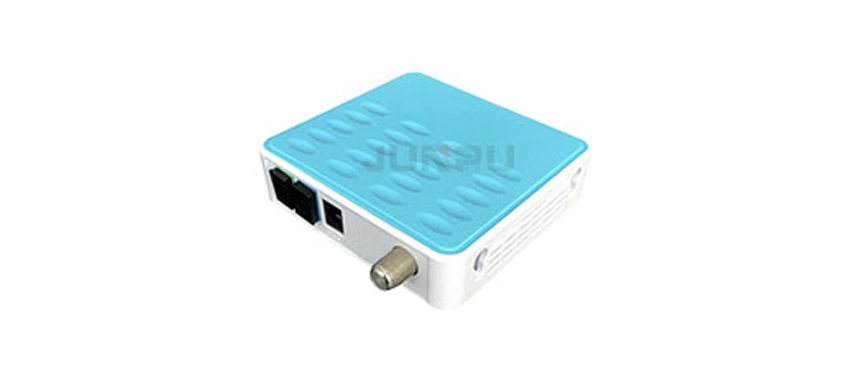

Passive Optical Receiver / Mini Node: Operates entirely without power supplies. It relies strictly on the photodiode to convert high-power optical signals directly into RF. It offers zero amplification and is ideal for short-distance FTTH drops where the input power is highly stable (typically > -1 dBm). For non-powered deployments, you can review our high-sensitivity wdm passive mini node configurations.

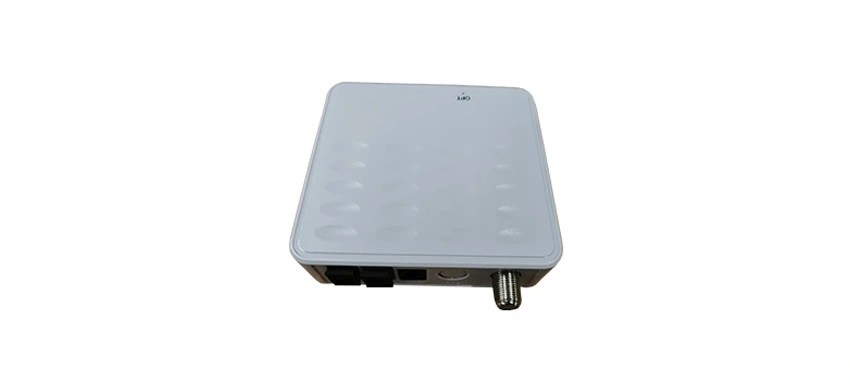

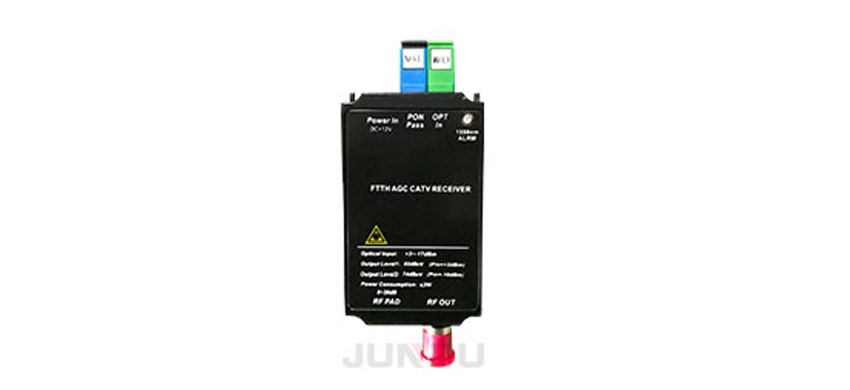

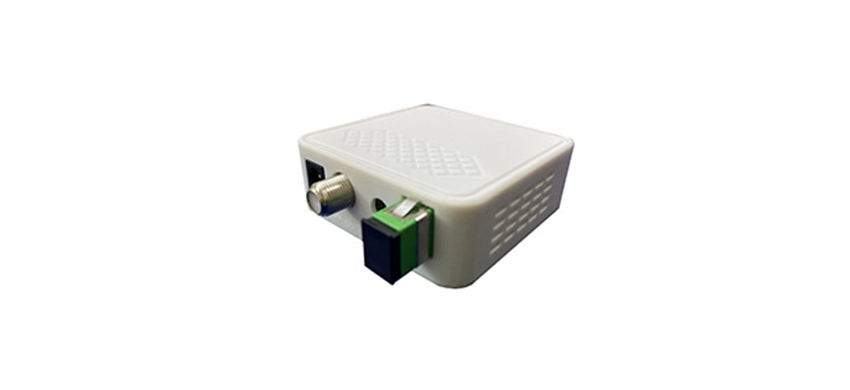

How does an optical mini node with WDM streamline FTTH triple-play migration?

An optical mini node with WDM (Wavelength Division Multiplexing) acts as an all-in-one boundary device for modern ISPs. It features a built-in optical filter that splits incoming wavelengths. It routes the 1550nm analog or digital TV signal to the receiver's photodiode for RF conversion, while simultaneously passing through 1310/1490nm or 1270/1577nm data streams to the subscriber’s ONU or OLT gateway. Utilizing these integrated micro-nodes minimizes splice clutter and saves critical space inside household junction boxes.

Why does the JUNPU JPX86RF active receiver significantly lower network building costs for operators?

The JPX86RF is engineered with an ultra-high-sensitivity optical receiving tube and a dedicated low-noise matching circuit. Because it maintains an excellent carrier-to-noise ratio (CNR) even at an ultra-low optical receiving power of -15 dBm to -21 dBm, operators do not need to constantly boost signal paths along the network. This high sensitivity allows a single upstream EDFA Optical Amplifier at the central office to split its output power among significantly more subscribers, drastically reducing the overall hardware CAPEX for long-range FTTH infrastructure rollouts.
