FTTH Optical Receiver

FTTH Optical Receiver

Specifications of FTTH Optical Receiver


No

Description

value

Unit

Conditions / Notes

1

Wavelength

1100-1600

nm


2

Optical Power Input Range

-18~0

dBm

Recommend -15 to 0

3

Optical Input Return Loss

≥45

dB


4

Bandwidth

47~1003

MHz


5

Flatness

±1.0

dB

47~1000MHz,@ 25 ℃

6

Slope

0~1.0

dB

47~1000MHz,@ 25 ℃

7

Temperature Stability

±1.0

dB

In the operating temperature range (-25 ~ +65 ℃)

8

Output Level

78±2

dBuV

-15 to 0dBm input optical power, per channel modulation  4.0%, in the 860MHz point test, @ 25 ℃

9

Impedance

75

Ohm


10

Return Loss

(47~1000MHz)

≥14

dB

@25 ℃

11

MER

≥35

dB

-10~0dBm input optical power

12

Power

< 0.8

W


13

Operating Temperature

-25~65


14

Storage Temperature

-40~70


15

Storage Humidity

≤95

Non- condensation

16

Optical Connector Type

SC/APC


FC/ST Optional

17

Power interface

DC5V/0.5A


External adapter

18

RF Output Connector

F connector


Metric or imperial, 2 out optional

20

Dimension

75X 66X 28

mm


21

Weight

Net :0.10

kg

Gross weight:0.116


AGC Function

Description

Parameter

unit

Conditions / Notes

AGC

AGC arrange

-15~-0

dBm


Indicator

OPT

Three color light

N/A

Optical power <-18dBm,red indicator

Optical power -18~2dBm, green indicator

Optical power >2dBm,orange indicator


Description of FTTH Optical Receiver

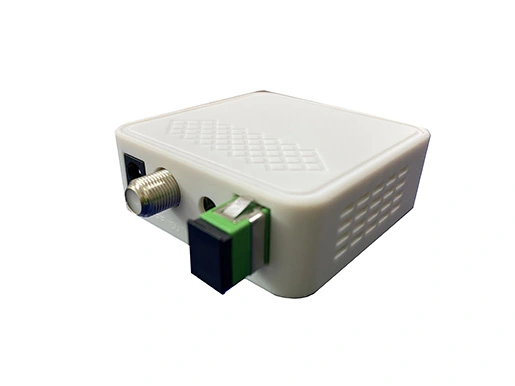

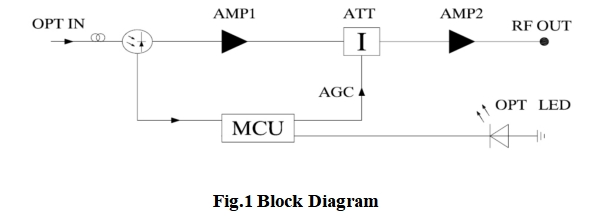

TX-1000-A23 FTTH Optical Receiver has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution. Product schematic diagram as below:



Features of FTTH Optical Receiver

  • 1 GHz operating bandwidth

  • Lower input optical range:0~-18dBm

  • Output level up to 76±2dBuV ( -15 to 0dBm input)

  • AGC Function(range:0~-15)

  • Low power consumption<1.0W
