FTTH mini Optical Receiver with WDM

FTTH mini Optical Receiver with WDM

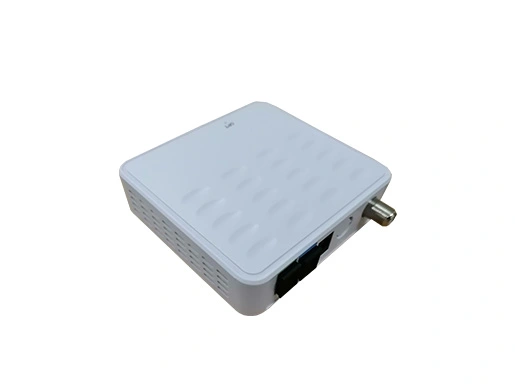

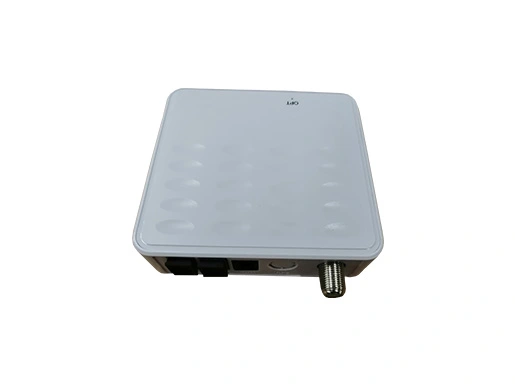

The node is a mini in-door optical receiver build in WDM, design for FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption.  It is single mode fiber-pigtailed and is available with various connector options.

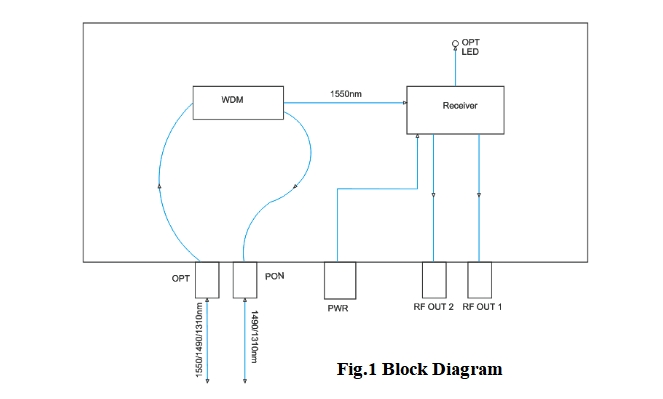

Block Diagram




Model

Remark



TX



FTTH  Optical Receiver with WDM

-11

-AU:  SCAPC/SCUPC,  -AA: SCAPC/SCAPC;

-222

-1MF: Metric F connector X1, -2IF: Imperial F connector X2

-33

-5E: 5Vdc Europe adaptor,   -12C: 12Vdc China adaptor

-4

-1~Z:  Version or customer number


Specifications of FTTH mini Optical Receiver with WDM

Item

Description

Value

Unit

Conditions / Notes


Optical Specifications (Forward Path)

1

Wavelength

1550/1490/1310

nm

Com port

1490/1310

nm

For ONT

2



3

Optical Power Input Range

-18~+2

dBm


AGC Range

-2~-12

dBm


4

Optical Input Return Loss

≥45

dB



RF Specifications (Forward Path)

4

Bandwidth

47~1003

MHz


5

Flatness

±1.0

dB

47~1003MHz,At 25 ℃

6

Slope

0~2.0

dB

47~1003MHz,At 25 ℃

7

Temperature Stability

±1.5

dB

In the operating temperature range (-25 ~ +65 ℃)

8

Output Level

75±2

dBuV

-15dBm input optical power, The analog channel,per channel modulation 4.0%, in the 860MHz point test, at 25℃

9

Impedance

75

Ohm


10

Return Loss(47~1000MHz)

≥12

dB

At 25 ℃

11

MER

≥30

dB

-15~-5dBm input optical power

≥24

dB

-20~-16, input optical power

12

Power

< 1.0

W



Environmental Parameters

13

Operating Temperature

-25~65


14

Storage Temperature

-40~70


15

Storage Humidity

≤95

Non- condensation


User Interface

16

Optical Connector Type

 SC/APC in,

SC/PC out


SC  Optional,

See the figure4 and5

17

Power supply

DC5V/0.5A


External adapter, See the figure3

18

RF Output

RG6 Connector


Optional,

See the figure1 and2

1 or 2 ports


19

Optical Indicator

Shine Red or

 Green color


Optical power <-16dBm ,red

Optical power >--16dBm ,green

See the figure6

20

Housing

90×85×25

mm


21

Weight

0.15

kg




Features of FTTH mini Optical Receiver with WDM

  • 1 GHz operating bandwidth

  • Lower input optical range:+2~-18dBm

  • Output level up to 76dBuV (@-15dBm power input);

  • 2 RF Output optional

  • Low power consumption<1.0W;
