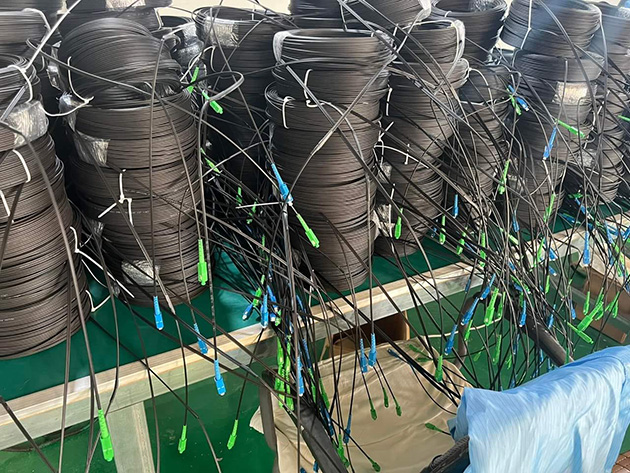

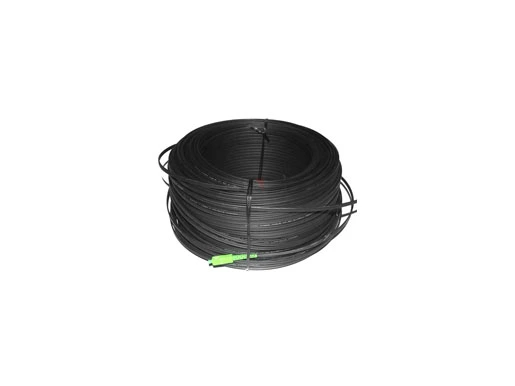

FTTH fiber patch cord SM G657A1 anti bending 10M 30M 50M 100M LSZH.

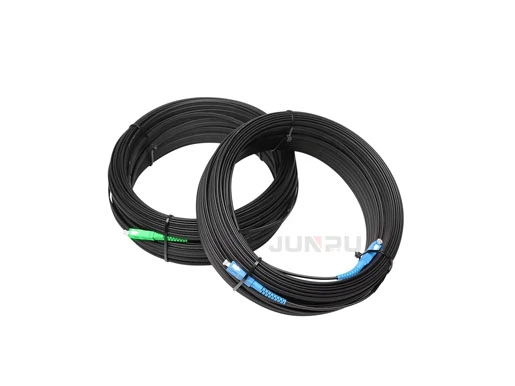

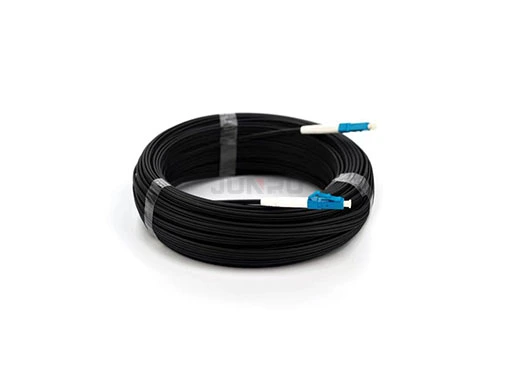

2.0x5.0mm/ 2.0x3.0mm FTTH drop cable, 2 pcs FRP, blue colored fiber inside, LSZH jacket, assembled with SC / LC / FC / ST connectors.
Cable structure | |
Structure | GJYXCH |
Strength member | phosphated steel wire, 1.0mm±0.05mm |
Fiber Type | G.657A1 |
Cable sheath | |
Dimemsion | 5.0*2.0mm |
Form | Bow-type Drop Cable |
Material | LSZH |
Thickness | ≥0.4mm |
External color | Black |
Fiber sleeve | |
Diameter | 250 um |
Structure | Color coated fiber |
Color | Blue/Blue Green |
- Supplier identification:junpu/customized | |
- Cable standard regarding ITU standard: SM G.657A1 1F XXXXMeter | |
- Manufacturing batch identification |
The connectors are comply with IEC, Telcordia-GR-326-Core standards;
Different size & color boot option;
Low insertion loss; High return loss;
100% interferometer measurement;
Typical IL≤0.20dB;
Max IL≤0.25dB;
RL SM≥50dB, AP C≥60dB, MM≥20dB.
Durability(500mating time): IL≤0.25dB.
Telecommunication networks;
Local area networks; CATV;
Active device termination;
Data center system networks.
