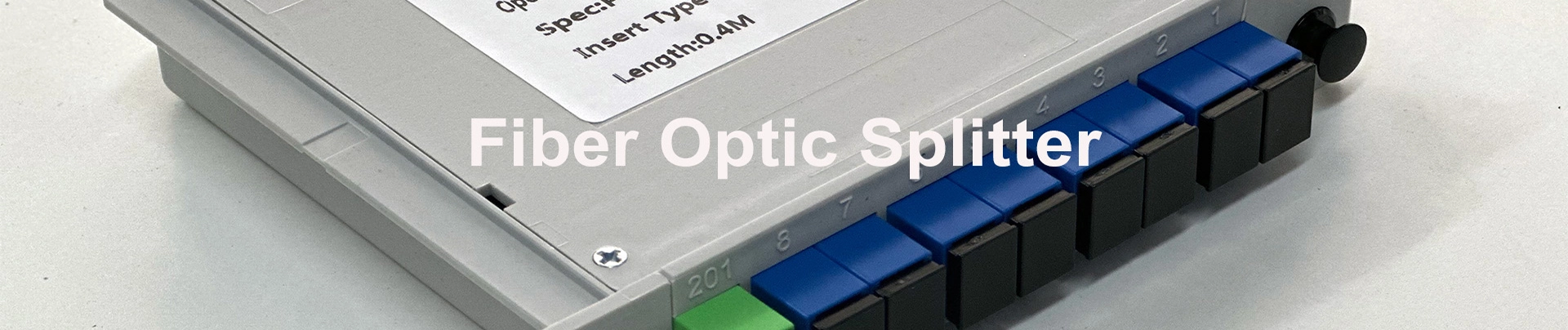

Fiber Optic Splitter

Fiber Optic Splitter

A fiber optic splitter is one of the passive optical network components used to divide a single optical signal into multiple signals and distribute them to different destinations. It operates on the principle of light reflection and refraction. Splitters are commonly used in fiber to the home (FTTH) networks, allowing a single fiber connection to be shared among multiple users. They enable efficient and cost-effective signal distribution in optical networks.

Fiber Optic Splitter Types

Considerations When Using Fiber Optic Splitters

1. Loss and Signal Degradation: Fiber optic splitters inherently introduce signal loss, which can increase as the splitting ratio increases. It is essential to understand the splitting ratio loss and its impact on the overall system performance. Additionally, factors such as insertion loss, return loss, and polarization-dependent loss should be carefully evaluated to minimize signal degradation.

2. Distance Limitations: Fiber optic splitters can have distance limitations, especially in high-splitting ratio scenarios. As the splitter splits the signal into multiple paths, the available optical power for each path decreases. This can affect the reach and quality of the signal, so it is crucial to consider these distance limitations when planning network deployments.

3. Coupling Efficiency: The efficiency of coupling the fiber optic cables to the splitter module is critical for minimizing signal loss. Proper alignment and connection techniques should be followed to ensure maximum coupling efficiency and reduce the impact on signal quality.

4. Environmental Factors: Fiber optic splitters may be exposed to various environmental factors such as temperature, humidity, and physical stress. It is important to consider the operating conditions and select splitters that are suitable for the specific environment. Choosing splitters with appropriate protection and ruggedness is essential for ensuring long-term reliability.

5. Scalability and Future Expansion: When deploying fiber optic splitters, it is essential to consider future scalability and expansion needs. Choosing splitters that allow for easy scalability and flexibility in adding or modifying the splitting ratios can help accommodate future network requirements without significant rework or system disruptions.

FAQs of Fiber Optic Splitter

How does a fiber optic splitter work?

A fiber optic splitter utilizes the principle of total internal reflection to split the optical signal. It uses a device called a beam splitter to divide the signal into two or more separate paths.

What are the different types of fiber optic splitters?

There are mainly two types of fiber optic splitters - the Fused Biconical Taper (FBT) splitter and the Planar Lightwave Circuit (PLC) splitter. The FBT splitter is based on traditional optical fiber technology, while PLC splitters are based on waveguide technology.

What is the difference between FBT splitters and PLC splitters?

The main difference between FBT splitters and PLC splitters lies in their manufacturing processes and performance characteristics. FBT splitters are generally lower in cost and suitable for small-scale deployments, while PLC splitters are more expensive but offer better performance and can handle higher power levels.

What are the common ratios for fiber optic splitters?

Common ratios for fiber optic splitters include 1x2, 1x4, 1x8, 1x16, 1x32, and even higher ratios. The first number represents the input ports and the second number represents the output ports.

Can fiber optic splitters work bidirectionally?

Yes, fiber optic splitters can work bidirectionally, meaning they can split a signal in one direction and then combine signals from multiple sources in the other direction. This allows for efficient sharing of fiber optic lines between multiple devices.
