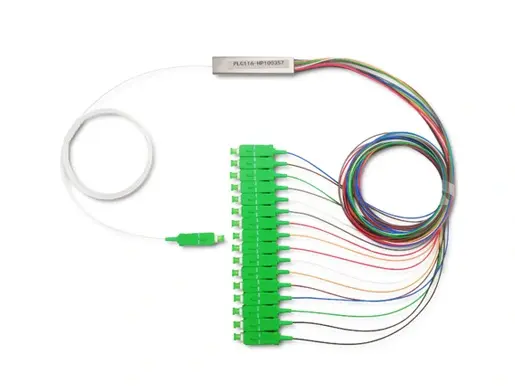

1x16 PLC splitter SCAPC Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
1x16 Fiber Optical PLC splitter SCAPC, The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical waveguide chip and optical fiber arrays coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip, with stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
| Item | Unit | Technical Data |
| Description | - | PLC-1X32-Steel tude-0.9-SCUPC |
| Wavelength | nm | 1260-1650 |
| Insertion Loss | nm | ≤17.2 |
| Channel Uniformity | dB | ≤1.0 |
| Return Loss | dB | ≥50 |
| Directionality | dB | ≥55 |
| Polarization Dependent Loss | dB | ≤0.2 |
| Package Size | mm | 6*20*80 |
| Fiber Color | - | Blue Orange Green Brown |
| Loose Tube Color | - | White |
| Maximum Power | mw | 300 |
| Operating Temperature | ℃ | -10~75 |
| Storage Temperature | ℃ | -40~85 |
| Fiber Type | - | G657A1 |

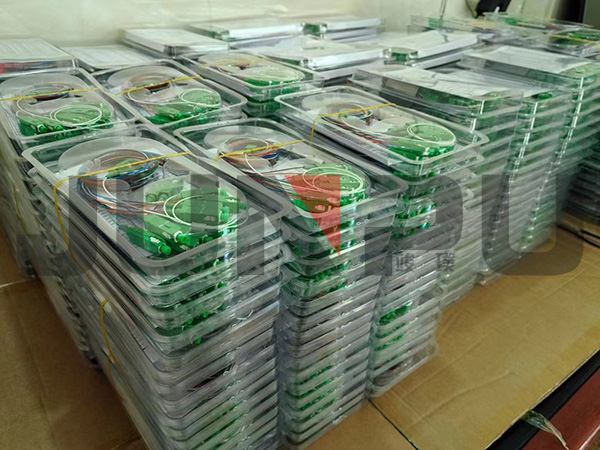

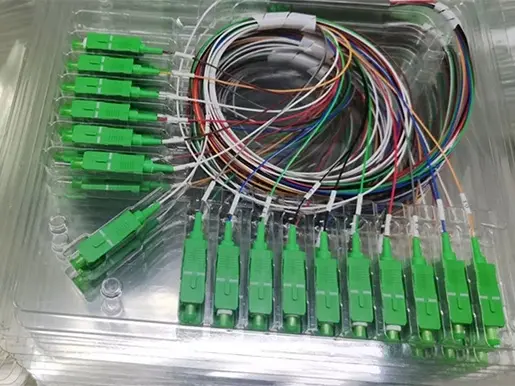

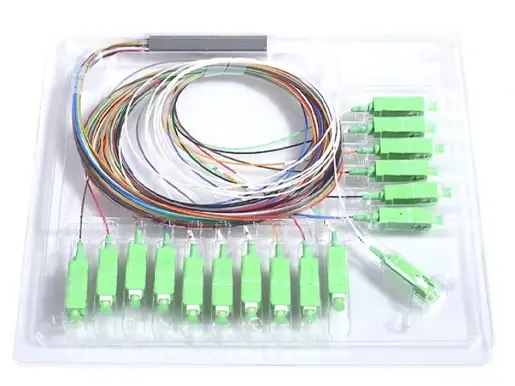

| Package Style | - | 1 PC / Blister Box |
| Package Information | - | Inner box：10pcs |
| Size：420*270*210mm | ||
| Weight：2.5kg | ||
| Outer box：40pcs | ||
| Size：570*430*460mm | ||
| Weight：10kg |
