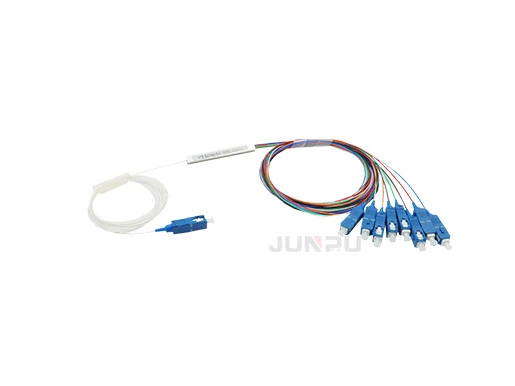

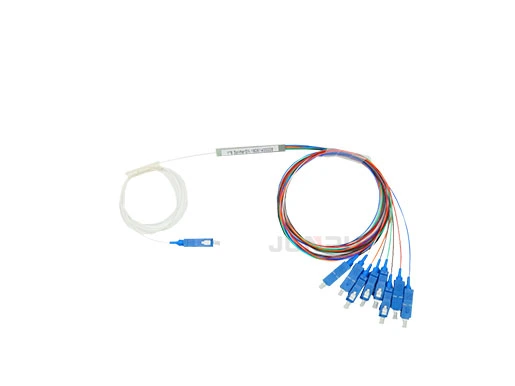

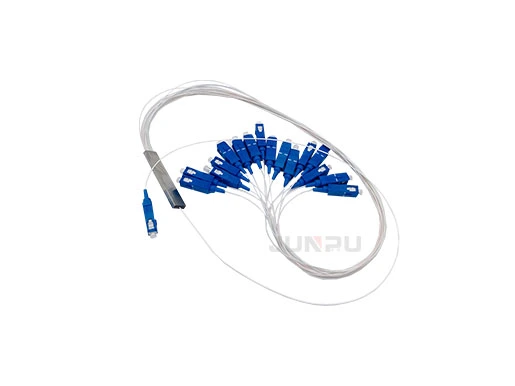

SCUPC Mini Steel Tube PLC Splitter

SCUPC Mini Steel Tube PLC Splitter

PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function.

Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.


Specifications of SCUPC Mini Steel Tube PLC Splitter


Parametersunit1:021:041:081:161:320.086111111
Wave lenght (nm)
1260~1650
Insertion loss without connectors (dB)Max4,07,410,713,716,921,0
Insertion loss with connectors (dB)Max4,57,711,214,217,521,5
Uniformity without connectors (dB) (Loss uniformity)Max0,60,60,81,21,72,5
Uniformity with connectors (dB) (Loss uniformity)Max0,60,81,01,41,72,5
PDL (dB) (Polarization Dependent Loss )Max0,20,30,30,30,30,4
Return Loss (dB)Min55
Directivity (dB)Min60
Working temperature (ºC) and storage temperature (ºC)Minod -40 do +75
Type of fiber according to
ITU-T G652.D i ITU-T G657.A
Fibre lenght (m )
≥1.0
If used connectors of type
SC/APC, SC UPC or   without connector



Features of SCUPC Mini Steel Tube PLC Splitter

  • 1×4 PLC Spitter, uniform distribution of optical signal

  • With the splitter type of mini module, without connector


Application of SCUPC Mini Steel Tube PLC Splitter

  • EPON, GPON, FTTH/FTTX network

  • CATV networks

  • Data communications

  • Passive Optical Networks
