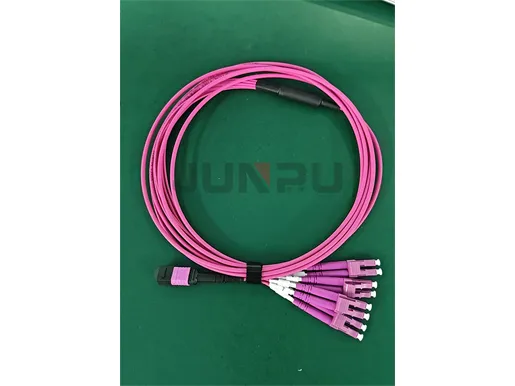

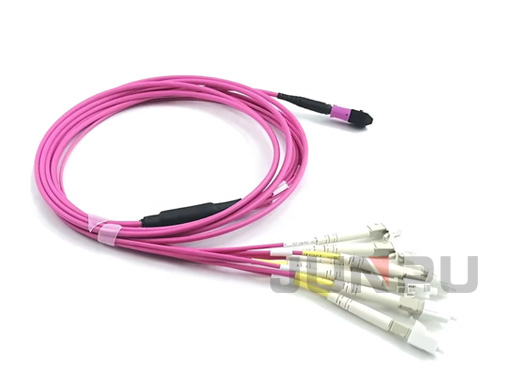

MPO-4xLC Duplex OM4 Breakout Cable For Sale, Price

JUNPU provides complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel.

MPO/MTP harnesses Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.

GET A QUOTE About MPO-4xLC Duplex OM4 Breakout Cable

Specifications of MPO-4xLC Duplex OM4 Breakout Cable

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30
