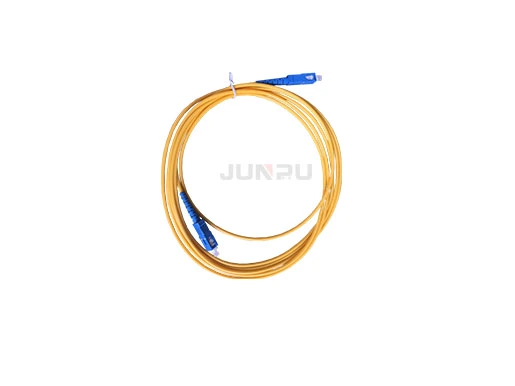

SCUPC-SCUPC Fiber Optic Patch Cord

SCUPC-SCUPC Fiber Optic Patch Cord

Fiber Optic Patch Cord is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


Specifications of SCUPC-SCUPC Fiber Optic Patch Cord


Pigtail ConnectorPC (SM)UPC (SM)APC (SM)MM
Return Loss (dB)≥45≥50≥60≥35
Insertion Loss (dB)≤0.2 (max≤0.3)


Repeatability (dB)≤0.1


Durability(1/Matings)



≥500


Operation Temperature (°C)



-25~+70


Tensile Strength (N)≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9


Fiber9/125um, 50/125um,62.5/125um,ect


diameter0.9mm 2.0mm, 3.0mm etc


Cable materialPVC, LSZH


CoresSimplex, duplex, 4cores, 6cores, 8cores, 12cores etc



Features of SCUPC-SCUPC Fiber Optic Patch Cord

  • Low insertion loss and hight return loss.

  • Excellent repeatability and changeability.

  • Simplex and duplex available.

  • With ceramic fettules.

  • PVC&LSNH cable option.

  • Optical performance 100% factory test.


Application of SCUPC-SCUPC Fiber Optic Patch Cord

  • Widely used in FTTH access network.

  • Telecommunication Networks

  • CATV Networks

  • Data communications Networks

  • Local Area Networks
