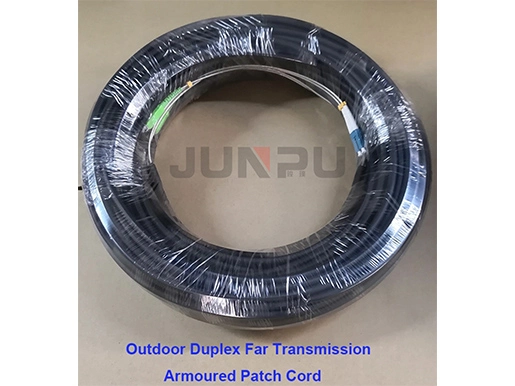

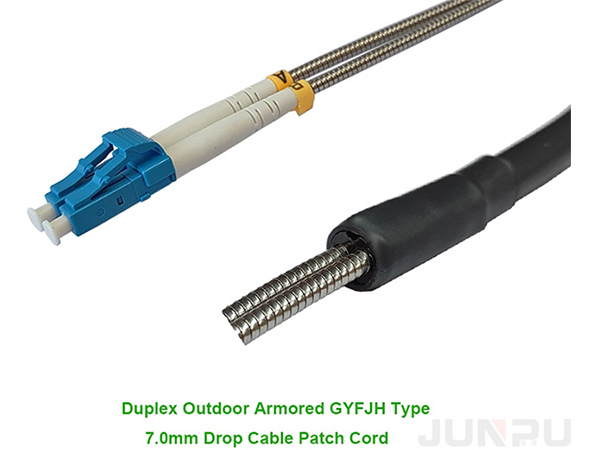

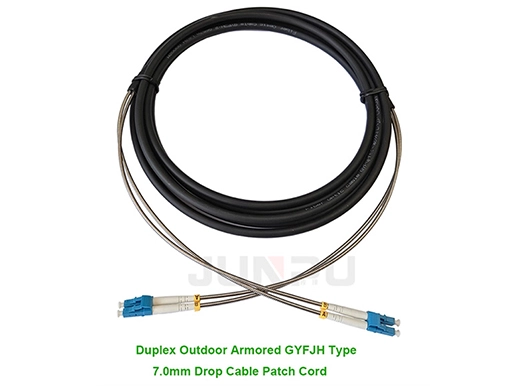

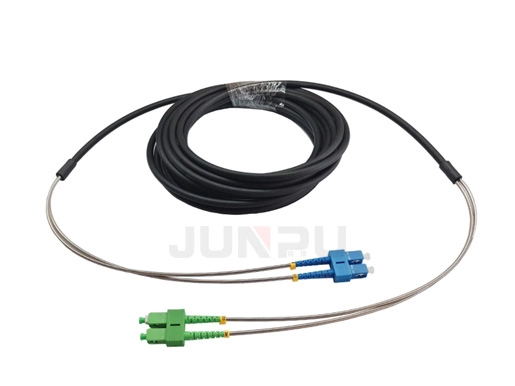

7.0mm Duplex Outdoor Armored Gyfjh Type Drop Cable Patch Cord

7.0mm Duplex Outdoor Armored Gyfjh Type Drop Cable Patch Cord

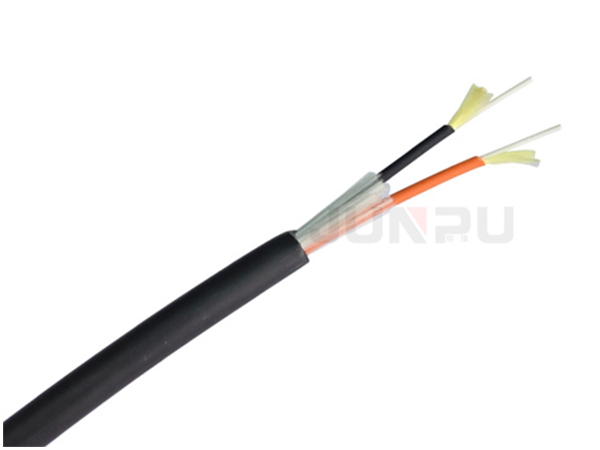

All dielectric GYFJH type drop cable containing two simplex Φ2.0mm sub unit cables with water blocking E-glass strength members, and then with an overall Φ7.0mm LSZH outdoor jacket. The sub unit cable consists of a 900μm tight buffer optical fiber in a LSZH inner jacket with aramid yarn. It has small diameter, light weight and thick wall jacket protection, giving it versatile applications.

Duplex armored GYFJH type drop cable patch cord is widely used for building access, cabling construction, FTTx networks and Base station, suitable for fiber optic networks far transmission in indoor/outdoor harsh environment.


Specifications of 7.0mm Duplex Outdoor Armored Gyfjh Type Drop Cable Patch Cord

ItemsSpecificationsItemsSpecifications
Fiber TypeSinglemode Connector StyleSC, FC, ST, LC,
or MultimodeMU, E2000, DIN
Polish or Ferrule Interface TypePC, UPC, APCCable LengthsCustom Lengths
Fiber Count2Branch Cable LengthsCustom Lengths
Cable Parameter
Outer Jacket MaterialLSZHOuter Jacket Color Black
Strength MemberE-glassOuter Jacket Diameter(mm)7.0±0.1
Crush(Long term)1100 N/100mmCrush(Short term)2200 N/100mm
Min Bend Radius(Dynamic)mm 30DMin Bend Radius(Static)mm15D
Maximum Tensile Load(Long term)200NMaximum Tensile Load(Short term)400N
Sub-unit Parameter
Sub-unit ColorOrange, BlackSub-unit MaterialLSZH
Sub-unit Diameter(mm) 2.0±0.1Strength MemberAramid yarn
Storage Temperature(°C)-20°C to 70°CInstallation Temperature(°C)-20°C to 70°C
Operating Temperature(°C)-20°C to 70°C
