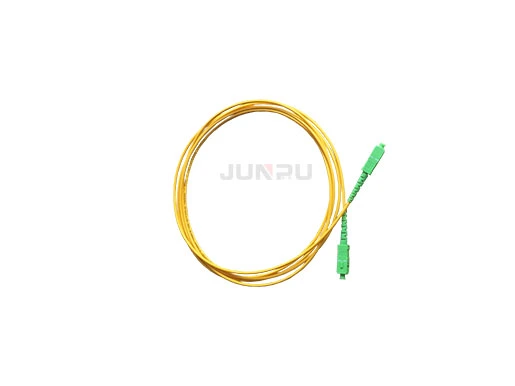

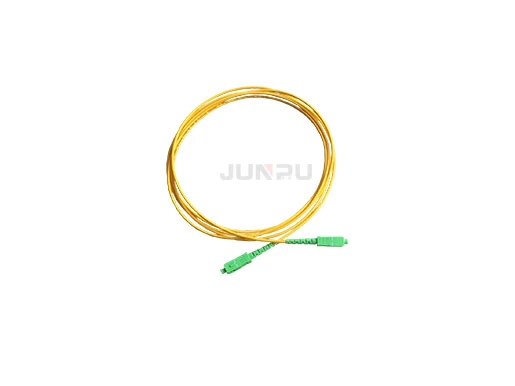

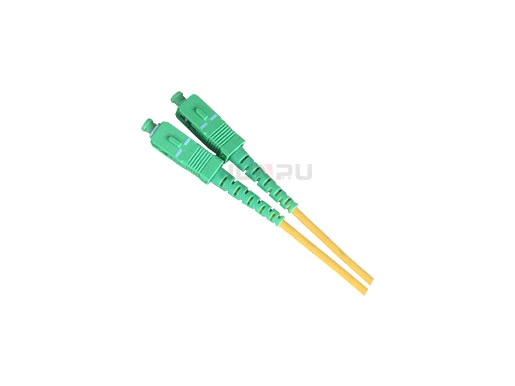

SCAPC-SCAPC Fiber Optic Patch Cord

SCAPC-SCAPC Fiber Optic Patch Cord

Fiber Optic Patch Cord is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


Specifications of SCAPC-SCAPC Fiber Optic Patch Cord


ItemSM(Single Mode)MM(Multimode)
Fiber Cable TypeG652/G655/G657OM1OM2/OM3/OM4
Fiber Diameter (um)9/12562.5/12550/125
Cable OD (mm)0.9/1.6/1.8/2.0/2.4/3.0
Endface TypePCUPCAPCUPCUPC
Typical Insertion Loss (dB)<0.2<0.15<0.2<0.1<0.1
Return Loss (dB)>45>50>60/
Insert-pull Test (dB)<0.2<0.3<0.15
Interchangeability (dB)<0.1<0.15<0.1
Anti-tensile Force (N)>70
Temperature Range (℃)-40~+80


Features of SCAPC-SCAPC Fiber Optic Patch Cord

  • Ceramic Ferrule;

  • High return loss;

  • Low insertion loss;

  • Good repeatability and and exchangeability;

  • Excellent Polished and 100% tested.


Application of SCAPC-SCAPC Fiber Optic Patch Cord

  • CATV

  • Optical fibre communication systems

  • Data transmission fibre

  • Building network access

  • Cabling, ODF

  • FTTX Applications


Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.
