JUNPU 8 ports fiber optic box / FAB-HGT-8ZT -2 Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Model | FAB-HGT-8ZT -2 |
Installation Method | Wall-mounted |
Color | White / Gray |
Material | PC+ABS |
Cable Ports | 2 Ports (For main cable) + 8 Ports (For drop cable) |
Capacity Of Splice Tray | 2 Pcs (12 Cores / Tray) |
Adapter Ports (SC) | 8 Pcs ( Pre-installed Reinforced) |

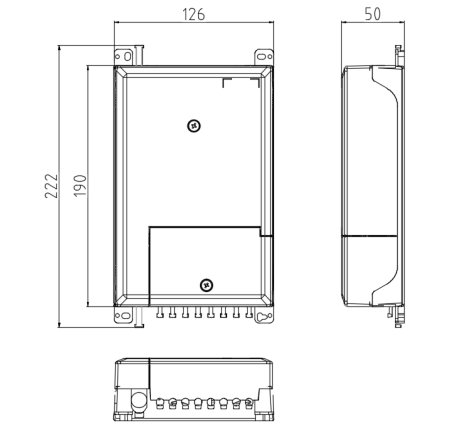

Size: H×W×D (mm) (Pic 1) | 222×126×50 |
Table 1 Model and configuration
Pic 1

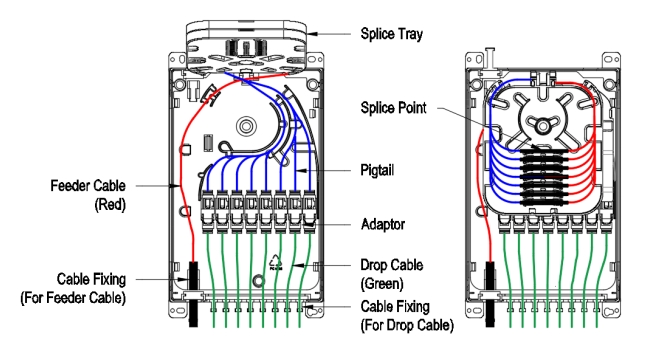

Pic 2
Anti-UV (Ultraviolet)
Economic design with plastic adaptor panel
Uncut cable port for feeder cables.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
Box can be installed by the way of wall-mounted.
FTTH access network
Telecommunication network
CATV networks
Data communications network
Local area networks
