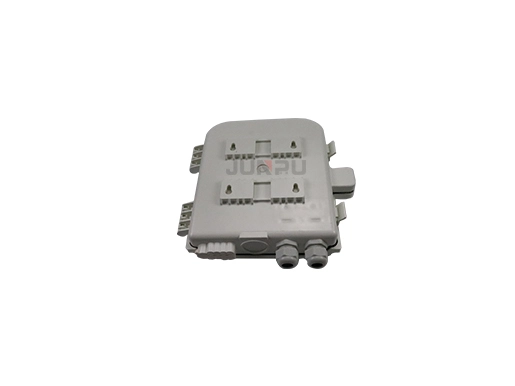

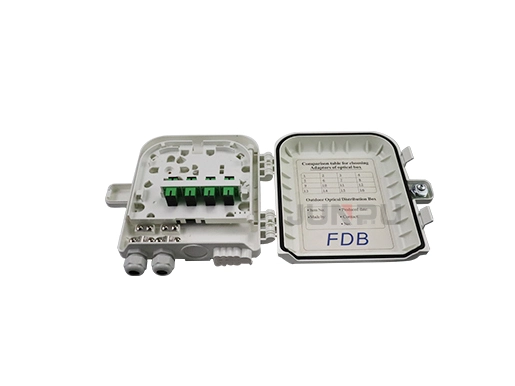

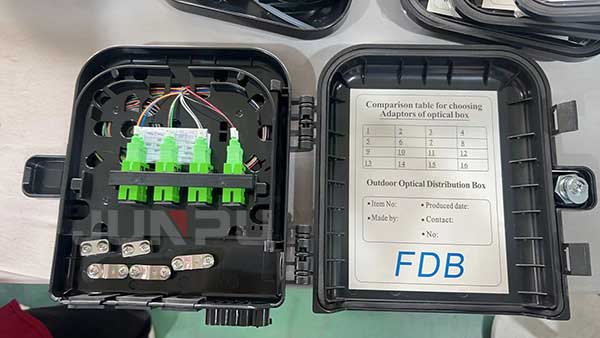

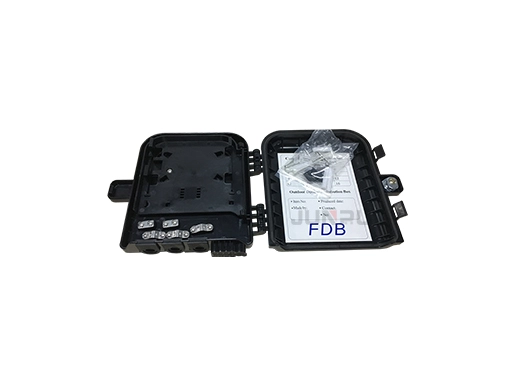

FODB-8C 8 Core Outdoor Fiber Distribution Box

FODB-8C 8 Core Outdoor Fiber Distribution Box

FODB-8C fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Specifications of FODB-8C 8 Core Outdoor Fiber Distribution Box

ModelMaterialSizeMax CapacityWeightColor
FODB-8CPC+ ABS225x220x55mmSC 8 portsLC 16 portsPLC
1X8 SC
0.6KGWhite


Features of FODB-8C 8 Core Outdoor Fiber Distribution Box

  • Water-proof design with IP-66 Protection level.

  • Integrated with splice cassette and cable management rods.

  • Manage fibers in a reasonable fiber radius condition.

  • Easy to maintain and extend the capacity.

  • Fiber bend radius control more than 40mm.

  • Suitable for the fusion splice or mechanical splice.

  • 1*8 Splitter can be installed as an option.

  • Efficient cable management.

  • 8 ports cable entrance for drop cable.


Application of FODB-8C 8 Core Outdoor Fiber Distribution Box

  • Widely used in FTTH access network.

  • Telecommunication Networks

  • CATV Networks

  • Data communications Networks

  • Local Area Networks

Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.

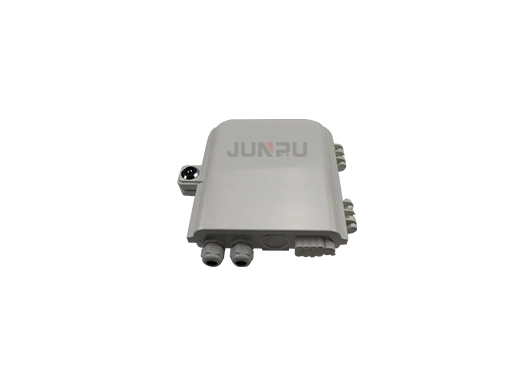

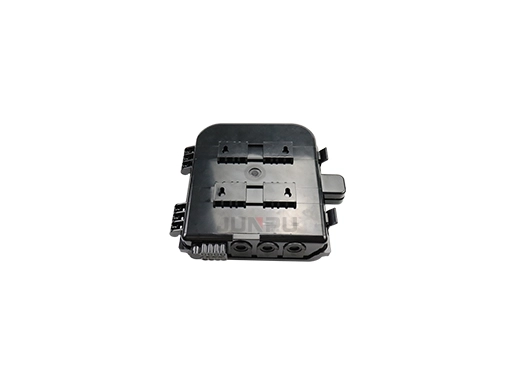

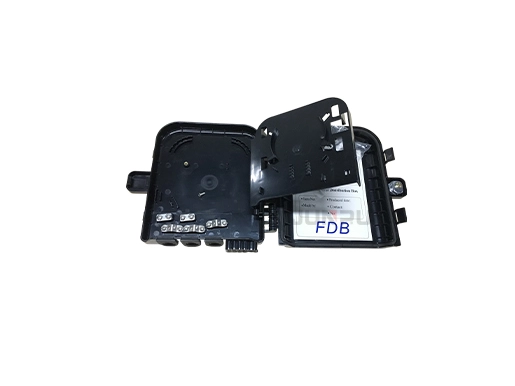

Other 8 Core Outdoor Fiber Distribution Box
