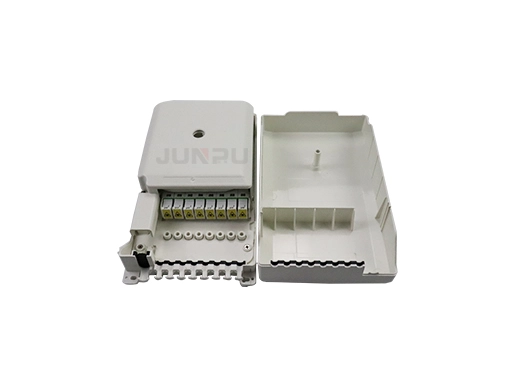

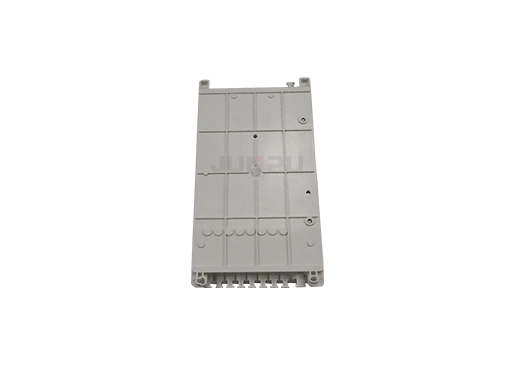

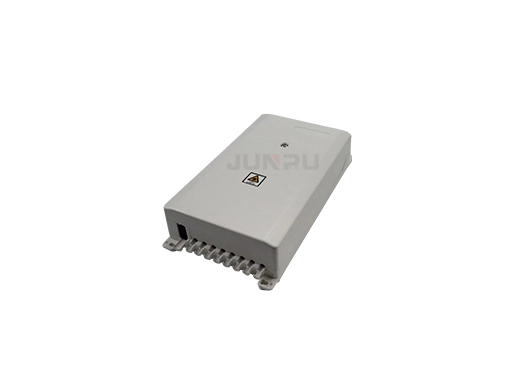

FODB-8T 8 Core Outdoor Fiber Distribution Box

FODB-8T 8 Core Outdoor Fiber Distribution Box

8 Ports Plastic ABS Fiber Optic Termination Box Uncut Optical Fiber Splitter 1x8.

8 Ports Plastic ABS Uncut Optical Fiber Splitter 1x8 Cable Termination Box 2x3mm SC Loaded.

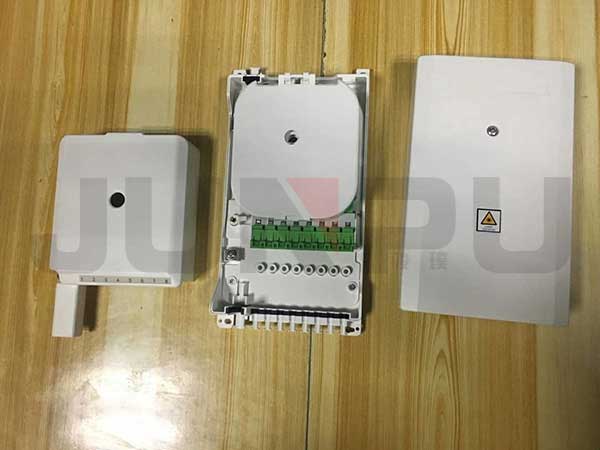

FTB008A plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.

The entry 2 ports can use multi-fiber cable maximum diameter 12mm, the feeder cable go throught the box without cutting off.

8 pcs outputs for ftth drop cable, maximum 2x5mm.

Meanwhile, unique design of separate covers for the adapter and cable entry/exit ports makes it more safe, nice and humanity.


Specifications of FODB-8T 8 Core Outdoor Fiber Distribution Box


ModelDG001
Dimension235*125*50 mm (H*W*D)
Cable ports2in 2out, 8pcs for drop cable
Cable dimeterIn:12 mm, out: 2x5mm
InstallationWall mounted
Max. Fusion24 single fibers
Splice tray1 pc splice tray, 1 pc splitter tray, 1 pc tray for fiber management
MaterialABS+PC
ColorGray/ white
PLC Splitter1x2,1x4,1x8 mini module plc splitter 0.9mm 1meter
Max. Adapter8 pcs SC simplex,without flange, shutter type ok.


Features of FODB-8T 8 Core Outdoor Fiber Distribution Box

  • The lid of the box have round edges, and closed by screws. Opening of the lid will not affect the movement of the other parts of the box. Both cover is removable.

  • All the metal parts is steel stainless AISI-303 and resistant to the corrosion in normal temperature.

  • All the materials used is non toxic and dermatologically safe.

  • The materials used for manufacturing these boxes can use for a minimum period of 20 years.

  • Unique design of 3 layers stray: splitter tray, splice tray, fiber management tray.

  • Adapter panel on the bottom is rotate by a metal rod, convenient and fast to installation

  • The feeder cable can go through the box no need cuttting, better choice for ftth on-site construction.


Application of FODB-8T 8 Core Outdoor Fiber Distribution Box

  • FTTH

  • Telecom
