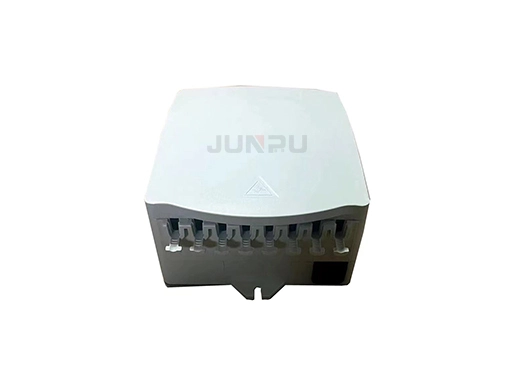

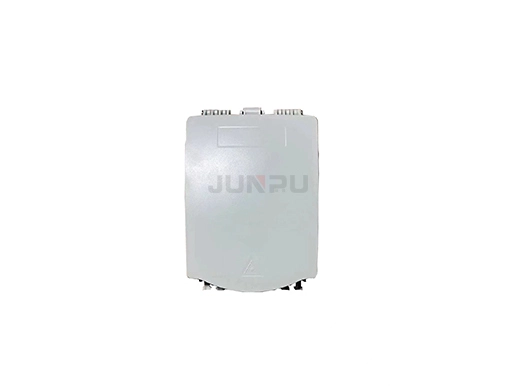

FODB-HGT-8ZX 8 Core Outdoor Fiber Distribution Box

FODB-HGT-8ZX 8 Core Outdoor Fiber Distribution Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


Specifications of FODB-HGT-8ZX 8 Core Outdoor Fiber Distribution Box

ItemSpecificationsRemark
External dimension(mm)151.8*105.7*59
Installation hole position(mm)141
Size and quantity of optical cable holeOptical cable straight through without cutting
Input type/type of outputSC adapter
Capacity(Max)12 cores
Into the largest cable diameter (mm)ᴓ12
Cable outlet size(mm)2*3~ᴓ5
IP protection levelIP65


Production type

Classification

FODB-HGT-8ZX

Optical fiber cable distribution box


Applications Environment of FODB-HGT-8ZX 8 Core Outdoor Fiber Distribution Box


Item

Value

Operation temperature

-40 ºC~+65 ºC

Installation temperature

-5 ºC~+40 ºC

Storage temperature

-40ºC~+65 ºC

Atmospheric pressure

70~106Kpa

Relative humidity

≤93%(+40℃)


Characteristics of FODB-HGT-8ZX 8 Core Outdoor Fiber Distribution Box

  • Total enclosed structure.

  • Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP54.

  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

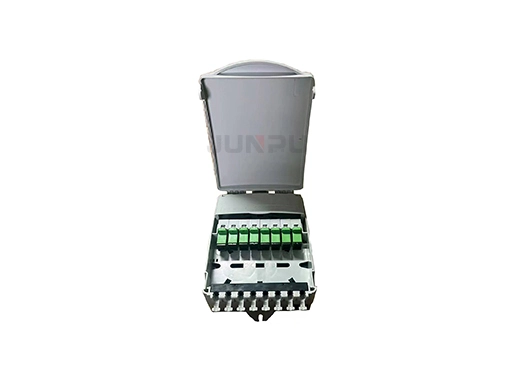

  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

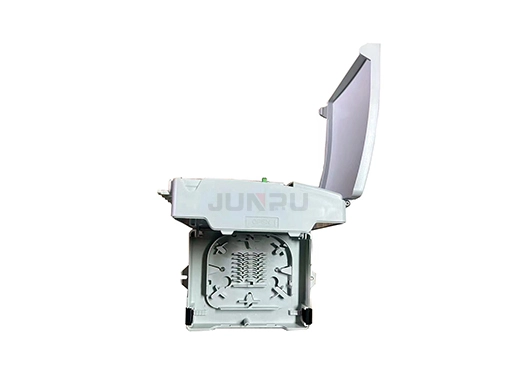

  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
