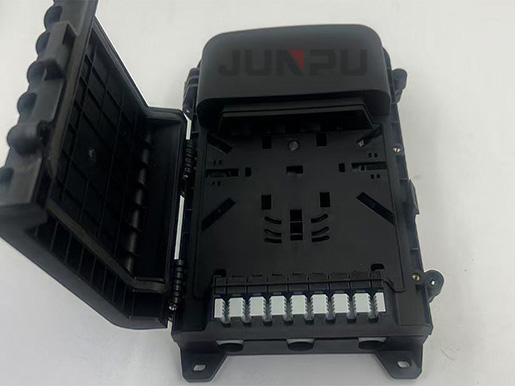

Name: Fiber Distribution OTB Box with 8 SC Adapters
Brand: Hangzhou Junpu Optoelectronic Equipment Co.,Ltd.

JUNPU Outdoor Fiber Distribution OTB Box with 8 SC Adapters, is a weatherproof enclosure for fiber optic terminations. It is ideal for FTTH (Fiber-to-the-Home) applications, providing a secure and organized connection point for feeder and drop cables.

GET A QUOTE About Fiber Distribution OTB Box with 8 SC Adapters

Fiber Distribution OTB Box with 8 SC Adapters Specification Download

Specifications of Fiber Distribution OTB Box with 8 SC Adapters

Item	Value
Type	Fiber optic distribution box
Place of Origin	China
Brand Name	JUNPU
Use	FTTH FTTX
Product name	Fiber optic distribution box
Color	Black
Dimension(HxWxD)	28x19x9.5CM
Capacity	8/16 port SC/LC
Cable Diameter: Inlet Cable	3 Ports 10~16mm Outlet Cable: 8 Ports 2*3
Protection Level	IP68
Cable Ports	3 In 8 Out
Weight	2.5KG

Features of Fiber Distribution OTB Box with 8 SC Adapters

Durable Construction: Made from polypropylene, this box boasts IK06 impact resistance, UV protection, and an IP68 waterproof rating, ensuring reliable performance in harsh outdoor environments.
Multifunctional Design: The OTB box integrates functions like splicing, splitting, distributing, clamping, and storing fiber optic cables within a single unit.
Organized Cable Management: Dedicated pathways for feeder cables, drop cables, patch cords, and pigtails prevent cable tangles and simplify maintenance.

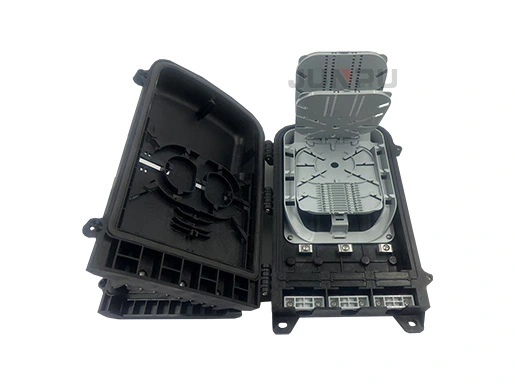

Easy Access and Maintenance: The cassette-style SC/LC/PLC adapter installation allows for quick and easy maintenance.

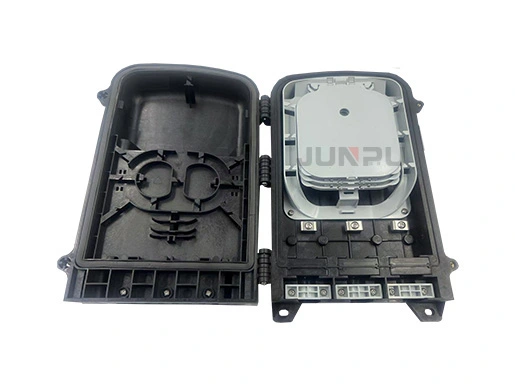

Additionally, the flip-up distribution panel and removable splice tray provide convenient access for cable placement and splicing.
Versatile Mounting Options: This box can be mounted on walls or poles, making it suitable for both indoor and outdoor deployments.
Simple Installation: designed for user-friendly installation.
