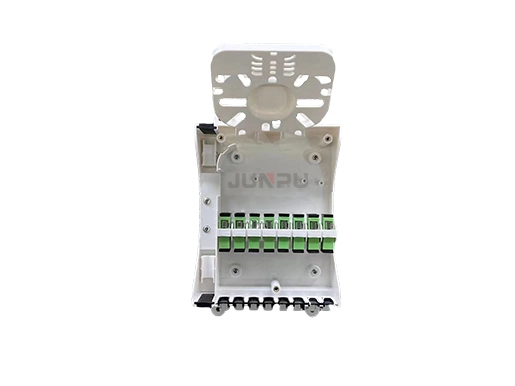

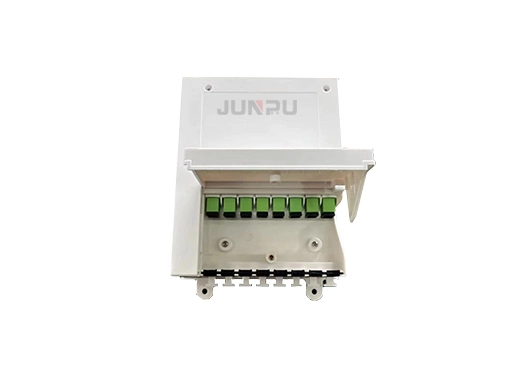

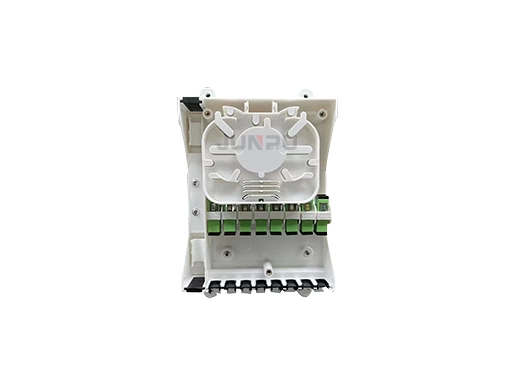

8 Core Outdoor Fiber Optic Terminal Box

8 Core Outdoor Fiber Optic Terminal Box

The FODB-8H is an 8 Core Outdoor Fiber Optic Terminal Box designed to provide reliable and convenient fiber optic connectivity in outdoor environments. With its 8 core capacity, it is capable of accommodating and organizing fiber optic cables efficiently. This distribution box is built to withstand harsh weather conditions and offers protection against dust and water, ensuring uninterrupted performance and longevity.


Specifications of 8 Core Outdoor Fiber Optic Terminal Box

ModelFODB-8H
Dimension(mm)
Outer carton(mm)
W×D×H192*133*47W×D×H480*470*520
MaterialABS/PCProduct Net weight(Kg)0.3
Cable diameter (mm)≤F12G.W (Kg)/carton19.5
Cable in/out:8Quantity/carton60
Max splice8Volume (M3)/carton0.117


Features of 8 Core Outdoor Fiber Optic Terminal Box

  • High impact plastic, standard user interface.

  • Suitable for 1x4, 1x8 PLC splitter.

  • Anti-UV, shocking resistance d.Wall mount.

  • Unique middle panel≥180°, clear area for splicing and distribution, less cross-connection for cables.


Application of 8 Core Outdoor Fiber Optic Terminal Box

This product integrates the function of splicing with splitting, suitable for the straight through or branch connection,and terminal connection in optical system, as well as protection connection for cables and distribution pigtails. The cables can be spliced with indoor cables by splitting,to meet the requirement of traditional network.


Techinical data of 8 Core Outdoor Fiber Optic Terminal Box

  • Fiber bend radius: ≥40mm

  • Splice tray excess loss: ≤0.01dB

  • Temperature Range: - 40℃ + 60℃

  • Anti lateral pressure: ≥2000N / 10 cm

  • Shock resistance: ≥20N.m


8 core outdoor fiber optic terminal box
