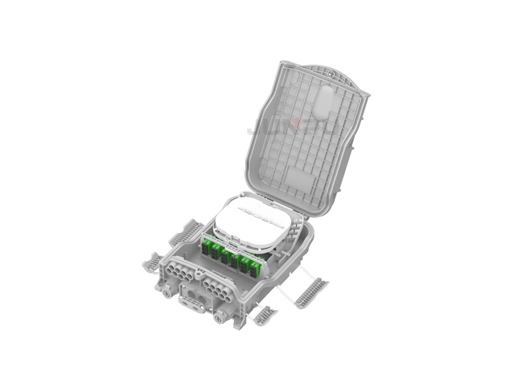

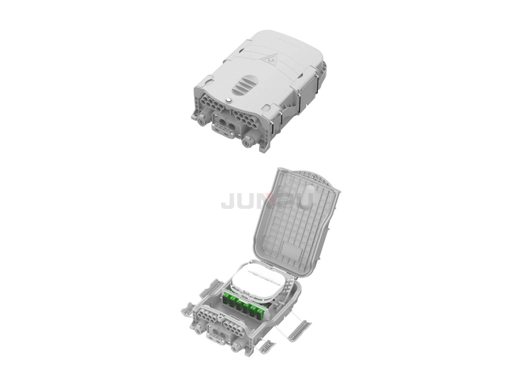

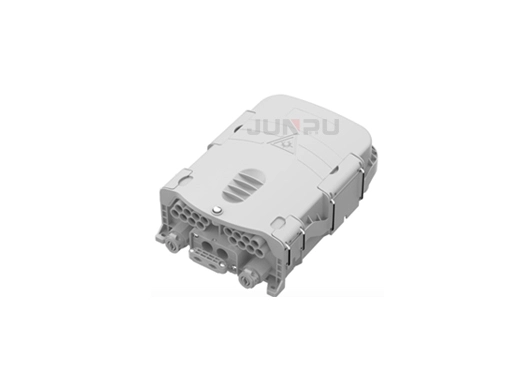

FAT-HGT-16QX 16 Core Fiber Optic Box Outdoor

FAT-HGT-16QX 16 Core Fiber Optic Box Outdoor

FAT-HGT-16QX Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.


Specifications of FAT-HGT-16QX 16 Core Fiber Optic Box Outdoor


ModelFAT-HGT-16QX

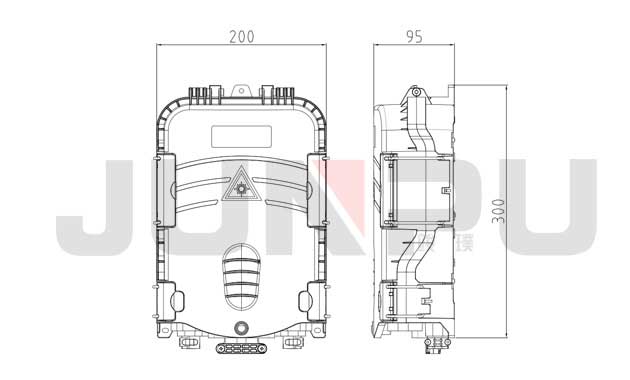

Size (Pic 1)H×W×D = 300×200×95 (MM)
MaterialPC+ABS
ColorBlack/White/Gray(Customizable)
Splice Capacity36 Cores
Splitter Capacity2 Sets
Splitter TypeSC, Mini Type, 1:2 / 1:4 / 1:8
Adapter TypeSC/APC


Features of FAT-HGT-16QX 16 Core Fiber Optic Box Outdoor

  • Water-proof design with IP65 Protection grade.

  • Integrated with splice cassette and cable management system.

  • Manage fibers in a reasonable fiber radius condition.

  • Fiber bend radius control more than 35mm.

  • 1 uncut cable port for feeder cables.

  • Fixed hermetic seals in all its grooves

  • The entire fiber route protected by transport tube

  • Complete opening of the hinges with stop included

  • Protected and organized pigtail space

  • Natural route "not forced" of the loose tubes and optical fiber.

  • Protection of Splitters and Pigtails

  • Support customized services such as logo screen printing.


Application of FAT-HGT-16QX 16 Core Fiber Optic Box Outdoor

  • Widely used in FTTH access network.

  • Telecommunication Networks

  • CATV Networks

  • Data communications Networks

  • Local Area Networks
