FSTC-16QX Fiber Splitter Terminal Closure

FSTC-16QX Fiber Splitter Terminal Closure

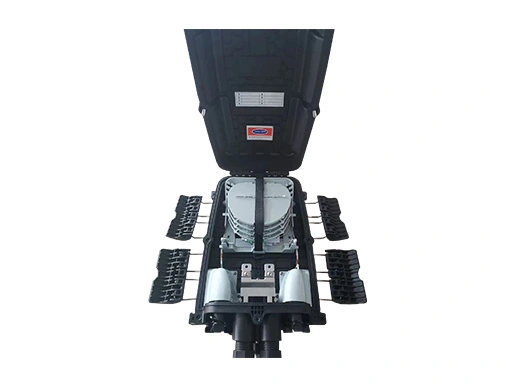

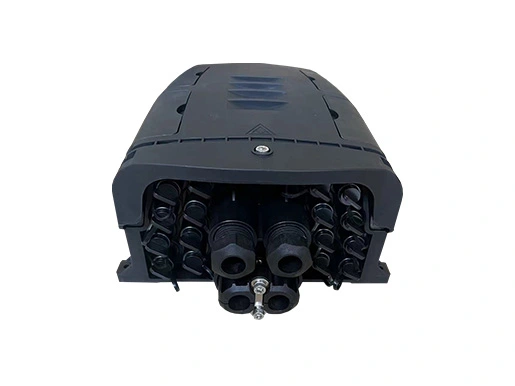

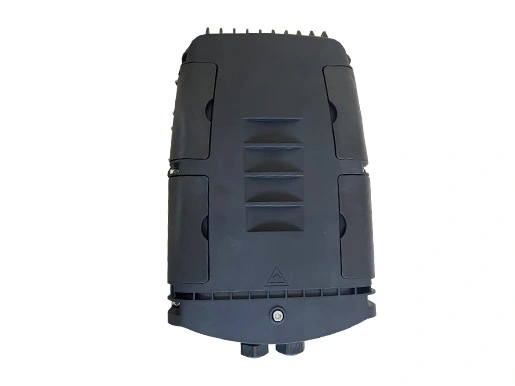

FSTC-16QX fiber splitter termination closure is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing , splitting , distribution, storage and cable connection in one solid protection box.


Specifications of FSTC-16QX Fiber Splitter Terminal Closure

MaterialSizeMax CapacityNos of   Reinforced AdaptorWeightColor
PP+GFA*B*C(mm) 355*256*1404x   12F splice trays
    (4pcs of 1x16 PLC splitter)
16 x Mini SC adapters2.6kgBlack


Features of FSTC-16QX Fiber Splitter Terminal Closure

  • Water-proof design with IP-68 Protection level. Integrated with flap-up splice trays.

  • Impact test:IK10,Pull Force:100N,Full rugged design. All stainless metal plate and anti-rusting bolts,nuts. Fiber bend radius control more than 32mm.

  • 4x 12F splice trays,4 pcs of 1*16 PLC Splitters can be installed as an option.

  • Plug-and-play installation, easy for maintenance and expansion.

  • 180 degree access with 4pcs of buckled lock structure.

  • 16x reinforced adapters for drop cable with reinforced connectors.

  • 1x mid-span cable entrance for uncut cables (7-18mm). and 2x mechanical glands for distribution cable(7-18mm)
