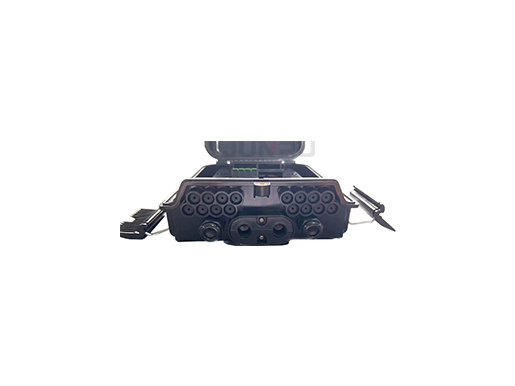

FAP-16W-1 16 Core Fiber Optic Box Outdoor

FAP-16W-1 16 Core Fiber Optic Box Outdoor

FATM-0416MA fiber access termination closure is able to hold up to 16subscribers and 24splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Specifications of FAP-16W-1 16 Core Fiber Optic Box Outdoor

MaterialSizeMax CapacityNos of AdaptorWight
PC/ABSA*B*C(MM)Splice 16 Fibers2pc of 1*8 PLC Splitter16pc of SC1.20kg
290*210*78(2traysX12F)


Features of FAP-16W-1 16 Core Fiber Optic Box Outdoor

  • Water-proof design with IP-65 Protection Level.

  • Integrated with flap-up splice cassette and adaptor holder.

  • All stainless metal plate and anti-rusting bolts, nuts.

  • Fiber bend radius control more than 40mm.

  • Suitable for the fusion splicer or mechanical splice.

  • 2Pcs of 1*8 Splitter can be installed as an option.

  • Mechanical sealing structure and mid-span cable entry.

  • 16 ports cable entrance for drop cable.

  • 16 adapter for drop cable patching.


Application of FAP-16W-1 16 Core Fiber Optic Box Outdoor

  • Wall mounting and pole mounting installation

  • FTTH pre-installation and filed installation

  • 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable


Standard Accessories of FAP-16W-1 16 Core Fiber Optic Box Outdoor

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance.


Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.

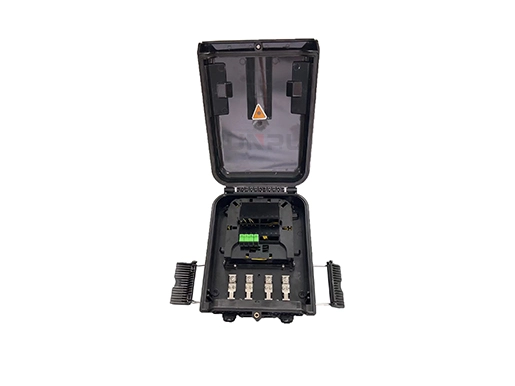

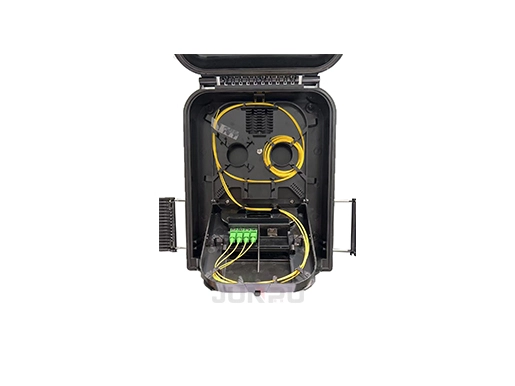

Other 16 Core Fiber Optic Box Outdoor
