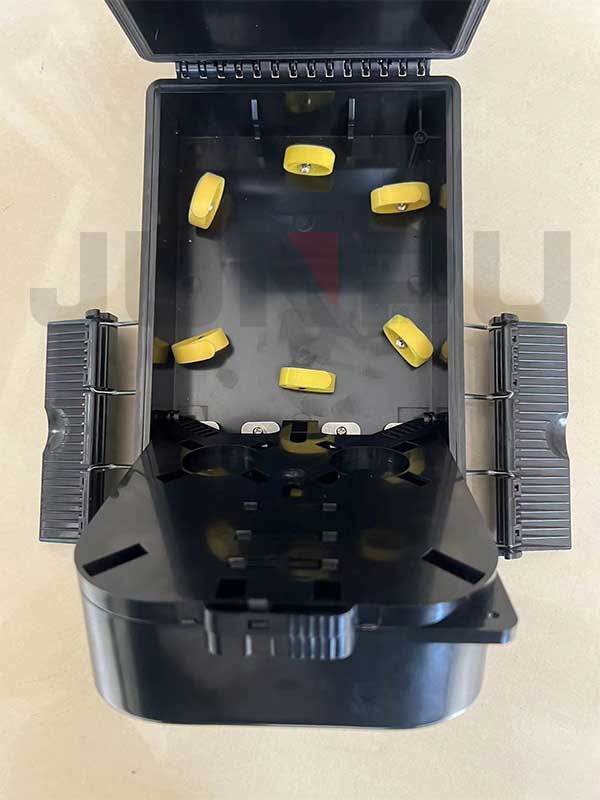

JUNPU 16 Core FODB Fiber Distribution Box, model: FAB-HGT-16B Fiber Distribution Box provides a high-density wall-mounted solution for next-generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
Model | FAB-HGT-16B |
Size (Pic 1) | H×W×D = 304×185×115 (MM) |
Material | PC+ABS |
Color | Black/White/Gray(Customizable) |
Splice Capacity | 36 Cores |
Splitter Capacity | 2 Sets |
Splitter Type | SC, Mini Type, 1:2 / 1:4 / 1:8/1：16 |
Adapter Type | SC |
Adaptor Capacity | 18 Pcs |
Incoming Cable Port | 2x(Φ10~14mm), 1x Mid-span 10~14mm |
Drop Cable Port | 16 Ports |
Installation Method | Wall, Pole Mounted |
Operating tempertaure | -10~+70℃ |
Life time | 25 years |
Water-proof design with IP65 Protection grade.
Integrated with splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition.
Fiber bend radius control more than 35mm.
1 uncut cable port for feeder cables.
Fixed hermetic seals in all its grooves.
The entire fiber route is protected by transport tube.
Complete opening of the hinges with stop included.
Protected and organized pigtail space.
Protection of Splitters and Pigtails.
Support customized services such as logo screen printing.
Widely used in FTTH access networks.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
