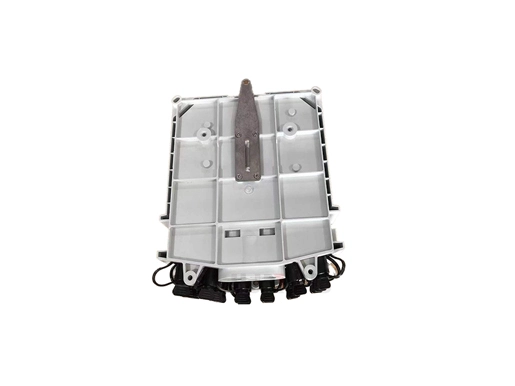

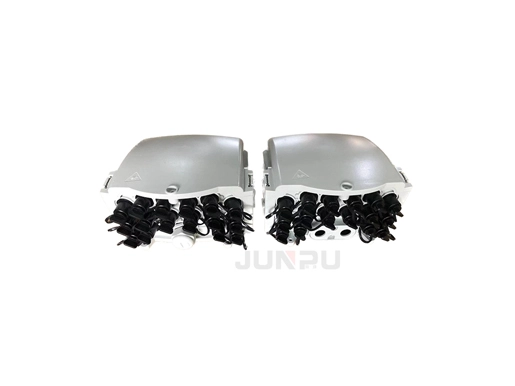

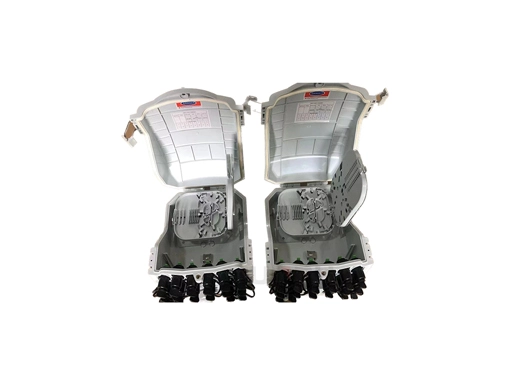

FODB-16H 16 Core Fiber Optic Box Outdoor

FODB-16H 16 Core Fiber Optic Box Outdoor

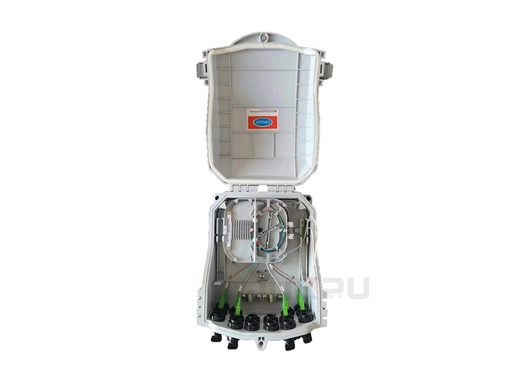

fiber optic joint enclosure box price

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.


Specifications of FODB-16H 16 Core Fiber Optic Box Outdoor

ModelDescriptionSize(Pic 1)Max CapacityInstallation Size(Pic 2)Into the largest cable diameter(mm)
A*B*C(mm)D*E*FG*H
16 coreSpllitter Box208*241*11716(SC/APC)179*212*12621*5218


1. Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure: 70KPa~106Kpa


2. Main technical datasheet

Insertion loss: ≤0.15dB

UPC return loss: ≥50dB

APC return loss: ≥60dB


3. Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2×104MΩ/500V(DC); IR≥2×104MΩ/500V

The voltage resistance between the grounding device,and the box and its metal parts is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V


Features of FODB-16H 16 Core Fiber Optic Box Outdoor

  • Total enclosed structure.

  • Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

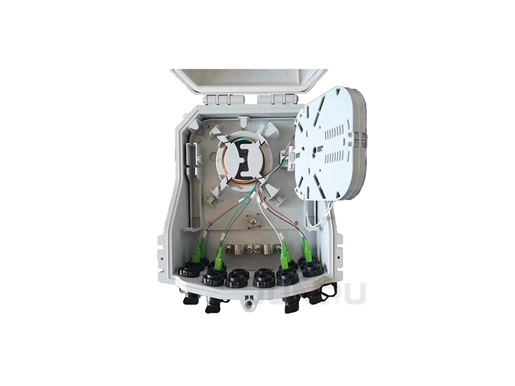

  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
