16 Core Preconnectable Fiber Distribution Box

16 Core Preconnectable Fiber Distribution Box

JUNPU FAT-HGT-16SX, 16 Core Preconnectable Fiber Distribution Box provides a high density wall mounted, pole mounted and aerial mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.


The equipment is widely used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building. Can be used indoor or outdoor.


Specifications of 16 Core Preconnectable Fiber Distribution Box

ItemEspecificacionesObservación
Dimensiones externas (mm)319.3*214*133(A*B*C)
Posición del orificio de instalación (mm)52*166*166(DxExF)
ColorPANTONE 428CPersonalizable
Tamaño y cantidad de orificios para cable óptico1 entrada de cable óptico ovalada, 2 entradas de cable óptico derivado y 16 adaptadores preconectados
Capacidad de fusión (Max)48Bandeja A, 12x4 = 48,
2 capas de mango protector de empalme termocontraíble.
64Bandeja B, 8x8=64, 1 capa de mango protector de empalme termocontraíble.

96Bandeja C, 8x12=96, 1 capa de mango protector de empalme termocontraíble.

96Bandeja D y Bandeja E, 24x4=96, 2 capas de mango protector de empalme


termocontraíble.


Micro PLC Splitter1x2Tamaño del Splitter :

60x7x4mm.


Features of 16 Core Preconnectable Fiber Distribution Box

  1. Advanced structural design, convenient operation, and reasonable wiring.

  2. Material: PP or PC+ABS.

  3. Damp proof, waterproof, dustproof and anti-aging.

  4. Protection level IP65.

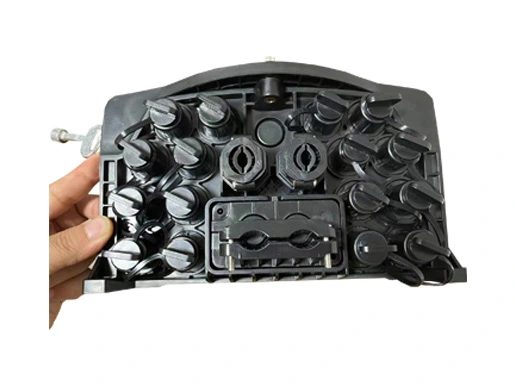

  5. 1 elliptical input, 2 derivative inputs, 16 pre connected adapters

  6. Two optional types of splicing trays.

  7. Installation method: Install on the column, in the air, and on the wall.

  8. It can be equipped with trays to accommodate the storage of 50 meters and 5 millimeters of circular cables.

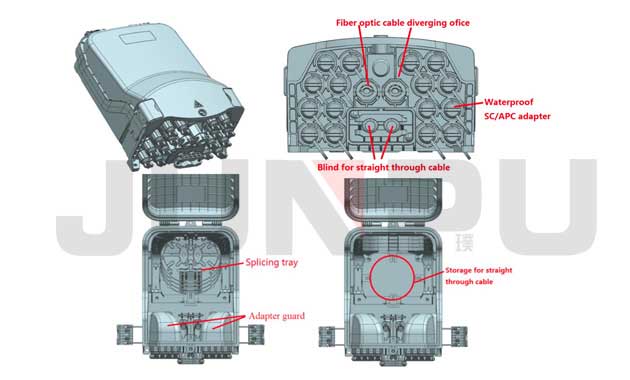

16 core preconnectable fiber distribution box
