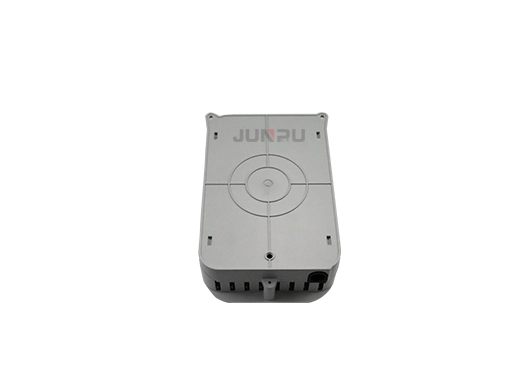

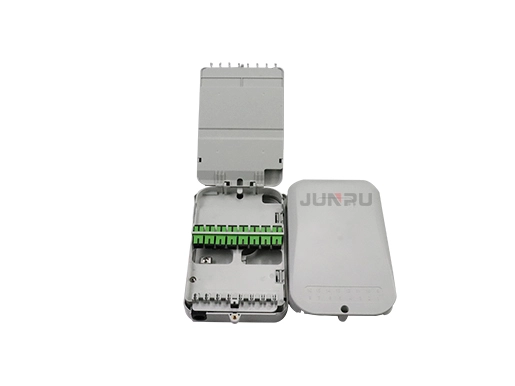

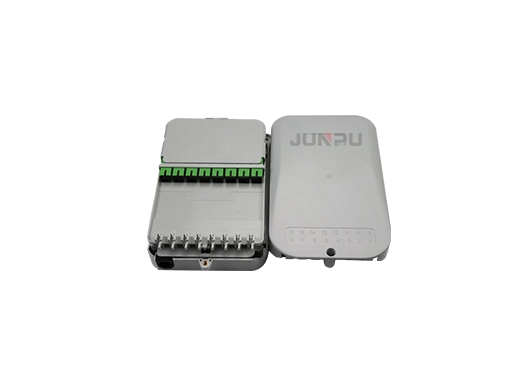

FODB-16T 16 Core Fiber Optic Box Outdoor

FODB-16T 16 Core Fiber Optic Box Outdoor

FAT-16T fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Specifications of FODB-16T 16 Core Fiber Optic Box Outdoor

MaterialSizeMax CapacityWeight
PC + ABS220x140x55SC 16 portsPLC
2pcs 1x8 or 1pcs 1x16 SC
0.6KG


Features of FODB-16T 16 Core Fiber Optic Box Outdoor

  • Water-proof design with IP-55 Protection level.

  • Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.

  • Easy to maintain and extend the capacity.

  • Fiber bend radius control more than 40mm.

  • Suitable for the fusion splice or mechanical splice.

  • 2:1*8 or 1:1*16 Splitter can be installed as an option. Efficient cable management.

  • 16 ports cable entrance for drop cable.


Application of FODB-16T 16 Core Fiber Optic Box Outdoor

  • Widely used in FTTH access network.

  • Telecommunication Networks

  • CATV Networks

  • Data communications Networks

  • Local Area Networks
