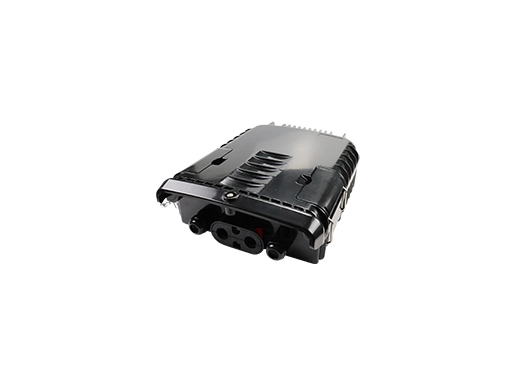

FATM-0416MA is a 16 Core Fiber Optic Termination Box, used for outdoor, also supports wall mounting and pole mounting. This fiber nap box can be assembled with 1x8 splitter and 1x16 splitter. The fiber access termination closure is able to hold up to 16 subscribers and 24s plicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system.
| Material | Size | Max Capacity | Nos of Adaptor | |
| PC/ABS | A*B*C(MM) | Splice 16 Fibers | 2pc of 1*8 PLC Splitter | 16pc of SC |
| 290*210*78 | (2traysX12F) | |||
Water-proof design with IP-65 Protection Level.

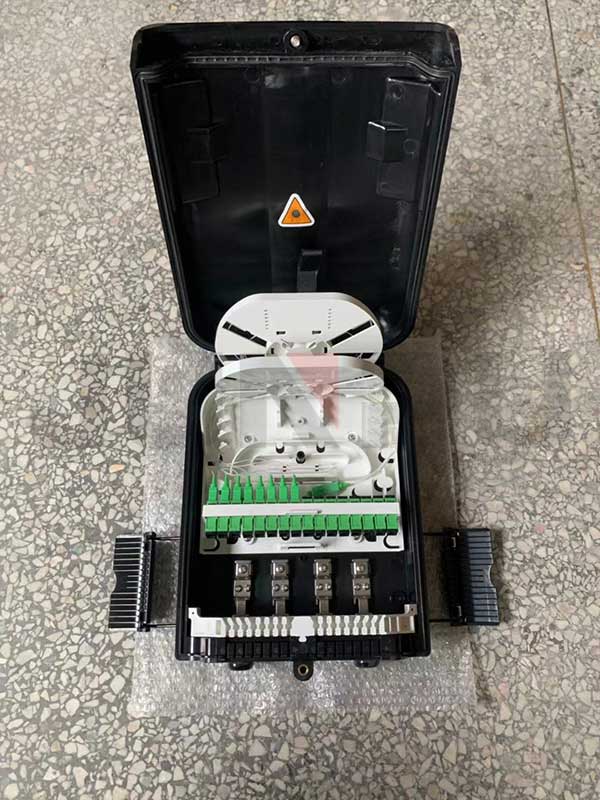

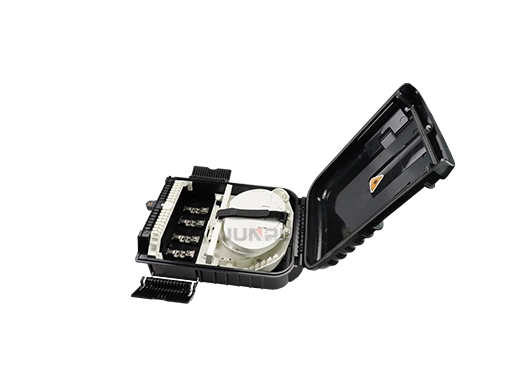

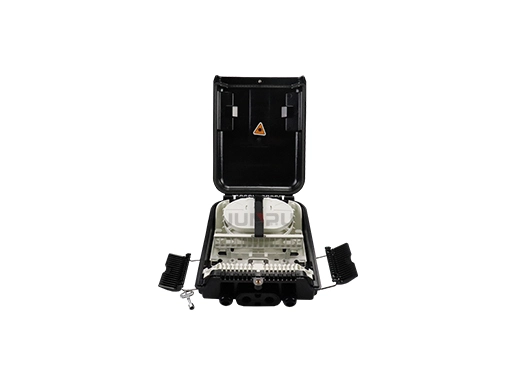

Integrated with flap-up splice cassette and adaptor holder.
All stainless metal plate and anti-rusting bolts, nuts.
Fiber bend radius control more than 40mm.
Suitable for the fusion splicer or mechanical splice.
2Pcs of 1*8 Splitter can be installed as an option.
Mechanical sealing structure and mid-span cable entry.

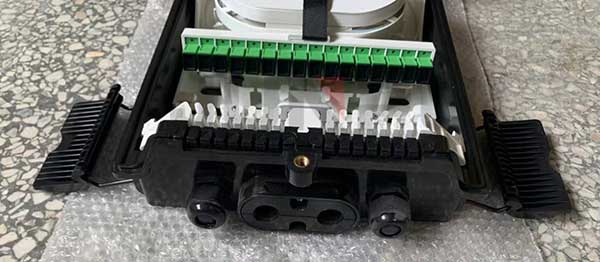

16 ports cable entrance for drop cable.
16 adapter for drop cable patching.
Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance.
