Name: FODB-0416M 16 Core Fiber Optic Box Outdoor
Brand: Hangzhou Junpu Optoelectronic Equipment Co.,Ltd.

FATM-0416L fiber access termination closure is able to hold up to 16subscribers and 96splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

GET A QUOTE About FODB-0416M 16 Core Fiber Optic Box Outdoor

FODB-0416M 16 Core Fiber Optic Box Outdoor Specification Download

Specifications of FODB-0416M 16 Core Fiber Optic Box Outdoor

Material	Size	Max Capacity		Nos of Adaptor	Wight
ABS/PC	ABC(MM)	Splice 16 Fibers	2pc of 1*8 PLC Splitter	16pc of SC	1.15kg
	287172102	(1trays, 16fiber/tray)

Features of FODB-0416M 16 Core Fiber Optic Box Outdoor

Water-proof design with IP-65 Protection Level.
Integrated with flap-up splice cassette and adaptor holder.
All stainless metal plates, anti-rusting bolts, and nuts.
Fiber bend radius control more than 40mm.
Suitable for the fusion splicer or mechanical splice.
2Pcs of 1*8 Splitter can be installed as an option.
Mechanical sealing structure and mid-span cable entry.
16 ports cable entrance for drop cable.
16 adapter for drop cable patching.

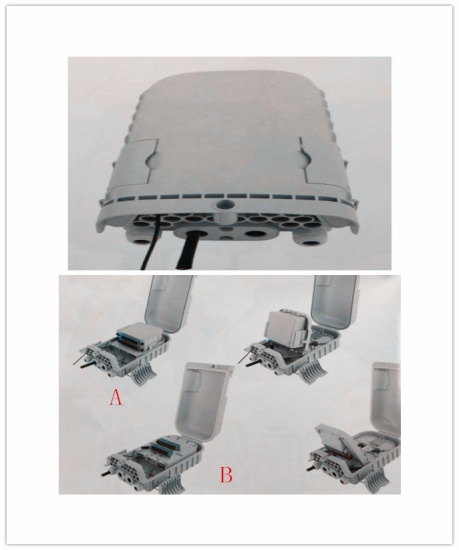

fiber outlet box

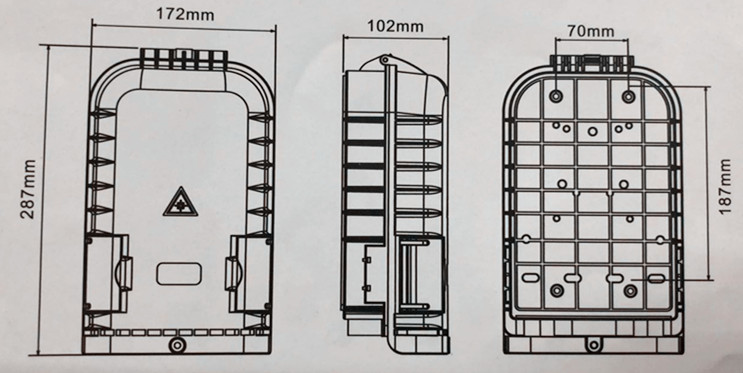

fiber panel box

Application of FODB-0416M 16 Core Fiber Optic Box Outdoor

Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable
