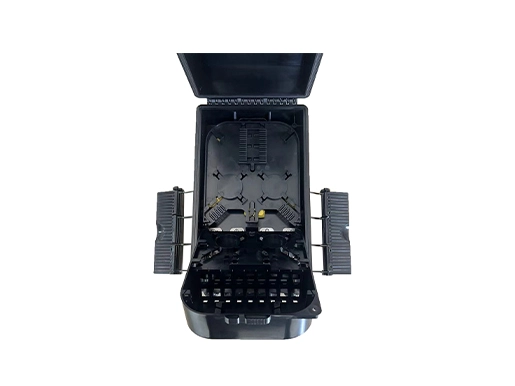

FODB-HGT-16A 16 Core Fiber Optic Box Outdoor

FODB-HGT-16A 16 Core Fiber Optic Box Outdoor

FAB-HGT-16A Fiber Distribution Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.


Specifications of FODB-HGT-16A 16 Core Fiber Optic Box Outdoor

Model

FAB-HG-16A

Size (Pic 1)

H×W×D = 304×185×115 (MM)

Material

PC+ABS

Color

Black/White/Gray(Customizable)

Splice Capacity

36 Cores

Splitter Capacity

2 Sets

Splitter Type

SC, Mini Type, 1:2 / 1:4 / 1:8

Adapter Type

SC/APC

Adaptor Capacity

18 Pcs

Incoming Cable Port

2x(Φ10~14mm), 1x Mid-span 10~14mm

Drop Cable Port

16 Ports

Installation Method

Wall, Pole Mounted

Operating tempertaure

-10~+70℃

Life time

25 years


Features of FODB-HGT-16A 16 Core Fiber Optic Box Outdoor

  • Water-proof design with IP65 Protection grade.

  • Integrated with splice cassette and cable management system.

  • Manage fibers in a reasonable fiber radius condition.

  • Fiber bend radius control more than 35mm.

  • 1 uncut cable port for feeder cables.

  • Fixed hermetic seals in all its grooves.

  • The entire fiber route protected by transport tube.

  • Complete opening of the hinges with stop included.

  • Protected and organized pigtail space.

  • Support customized services such as logo screen printing.


Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.

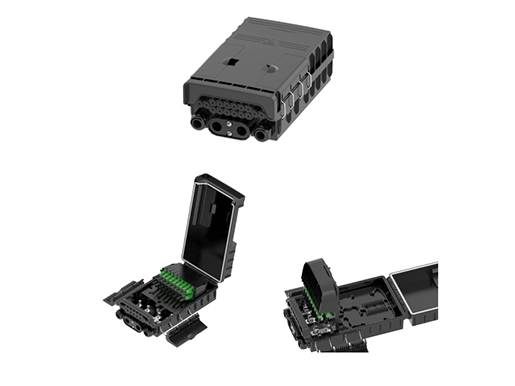

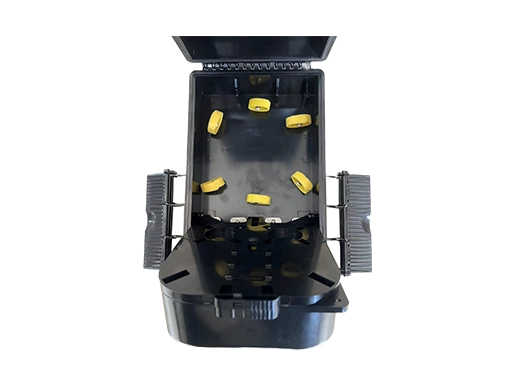

Other 16 Core Fiber Optic Box Outdoor
