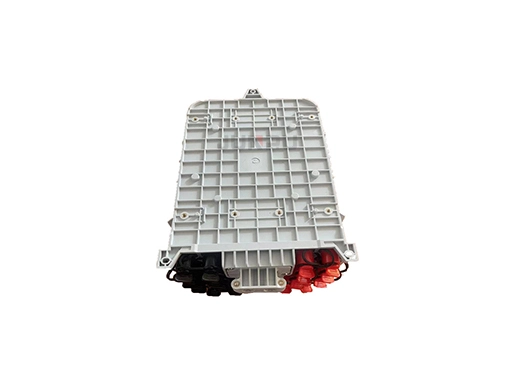

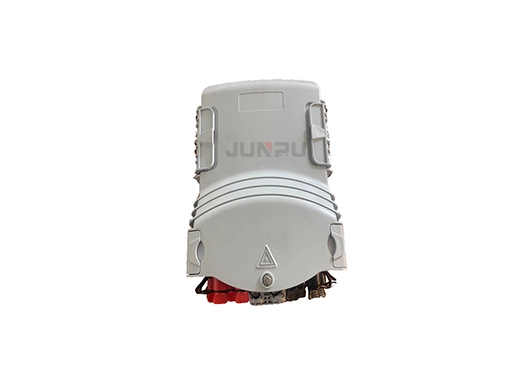

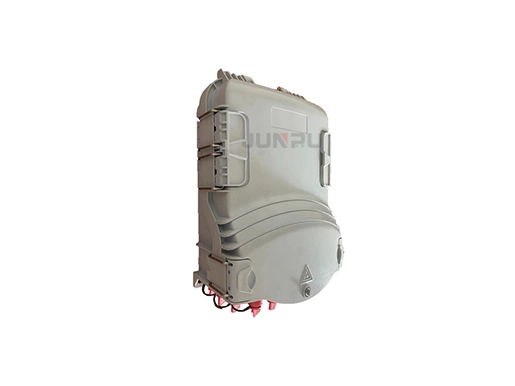

FODB-0416R 16 Core Fiber Optic Box Outdoor

FODB-0416R 16 Core Fiber Optic Box Outdoor

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specifications of FODB-0416R 16 Core Fiber Optic Box Outdoor

ModelSize (Pic 1)Max CapacityInstallation SizeInto the largest cable diameter (mm)Maximum size of branch holeWaterproof SC/APC adapter
A*B*C (mm)(Pic 2)  D*E*F(mm)(mm)
16 CORE319.3*214*1334852*166*166ᴓ8~14ᴓ1616

1. Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure: 70KPa~106Kpa

2. Main technical datasheet

Insertion loss: ≤0.15dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

3. Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2×104MΩ/500V(DC); IR≥2×104MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V.

Features of FODB-0416R 16 Core Fiber Optic Box Outdoor

  • Total enclosed structure.

  • Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection  level up to IP65.

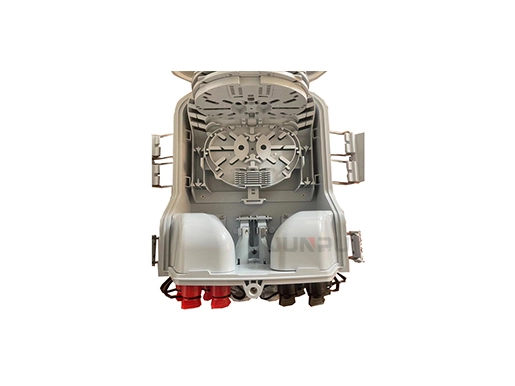

  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Product Inquiry
Email us if you are interested in JUNPU communication fiber optic products and solutions.

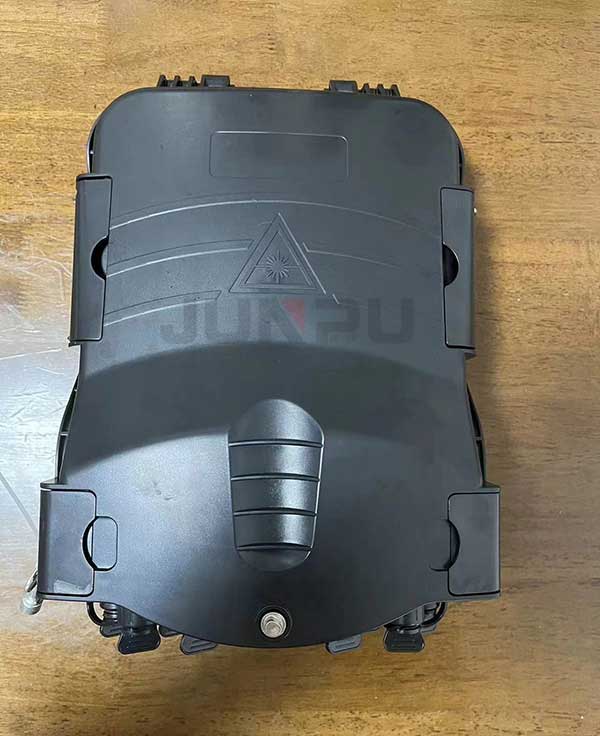

Other 16 Core Fiber Optic Box Outdoor
