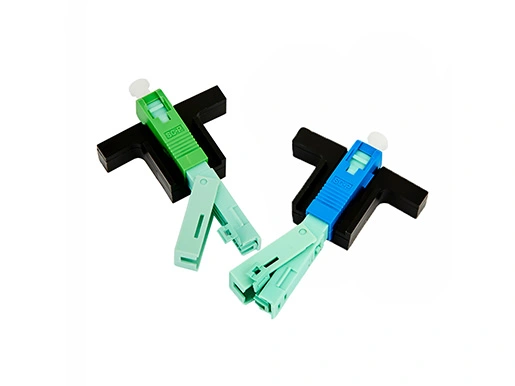

SC - Aircraft Nut Type Quick Assembly Connector

SC - Aircraft Nut Type Quick Assembly Connector

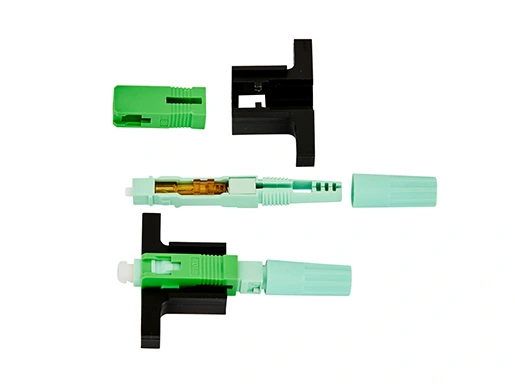

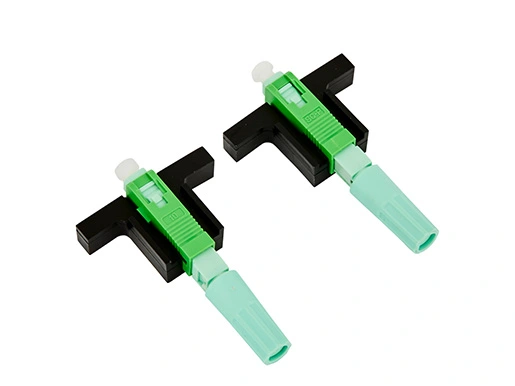

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels.

This connector system with features of high installation quality, high success rate and high reliability.Applicable to 2*3,2*1.6 cables.


Specifications of SC - Aircraft Nut Type Quick Assembly Connector


Parameters

Value


Parameters

Value

Insertion Loss

Average ≤0.3 DB, max ≤0.5 DB


Repeatability (500 Mating Times)

Average ≤0.3 DB, max ≤0.5 DB

Return Loss

≥ 45dB


Temperature cycle

Tensile strength

F>50N


Vibration test

Operating Temperature

-20 ~ +75℃


Flooding test

Storage Temperature

-40 ~ +85℃


Tensile strength

F>50N



Operation Instruction

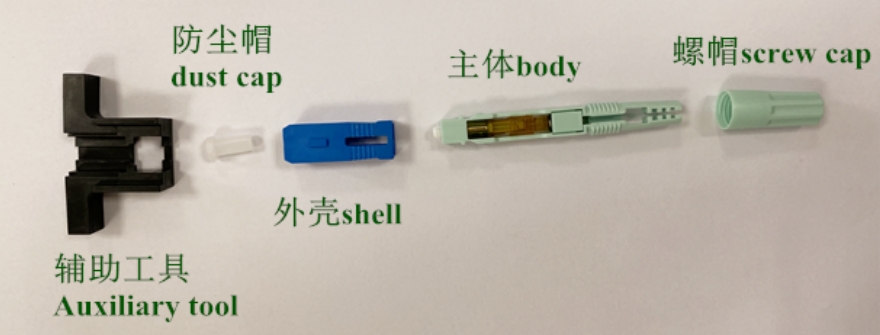

Product Components

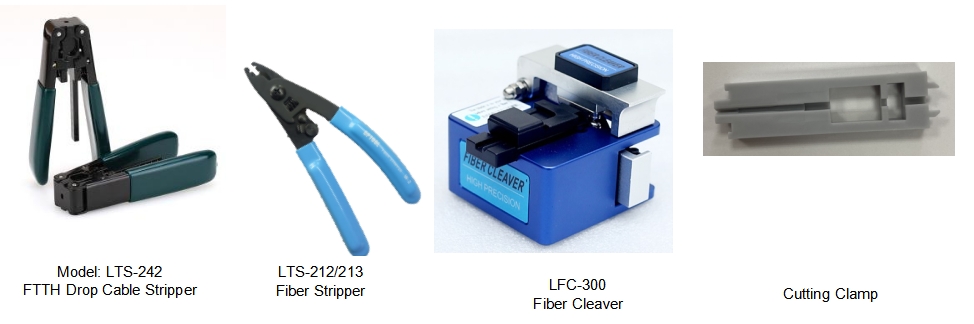

Necessory Tools




Operation Steps:

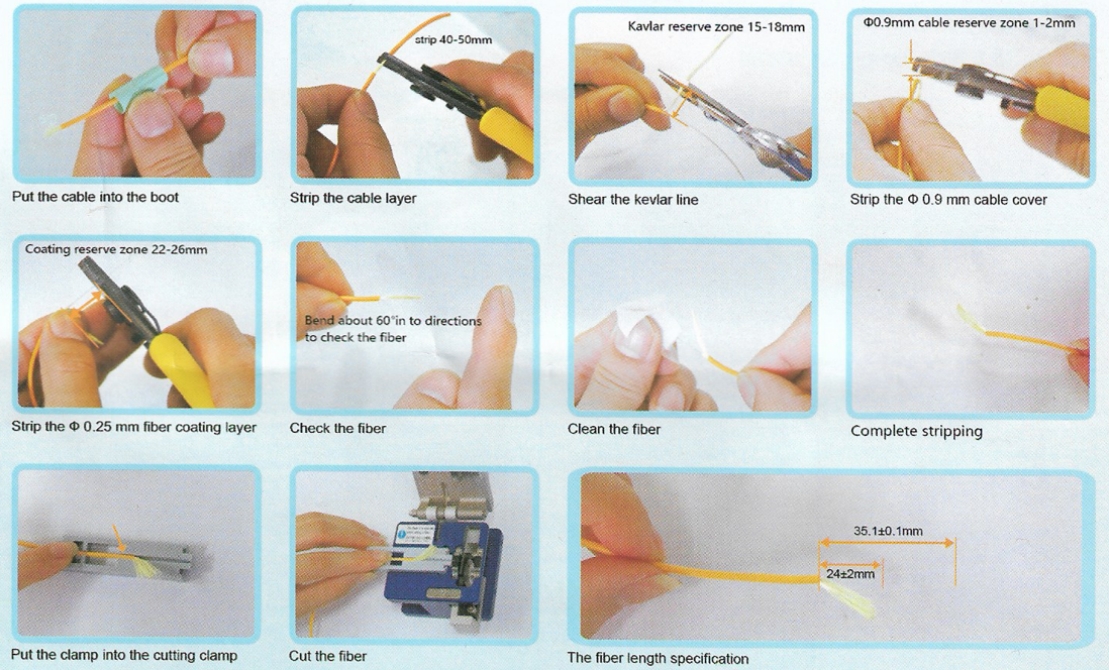

1.Process the fiber

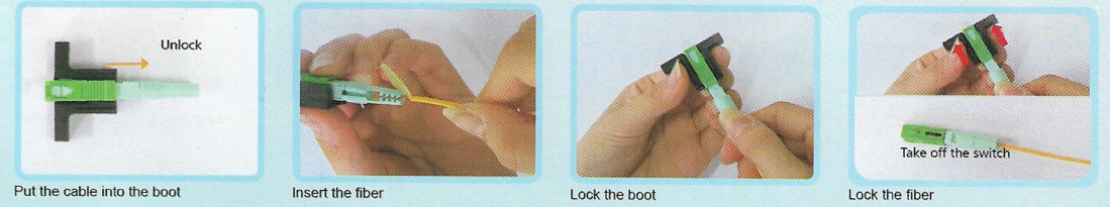

2.Assembly

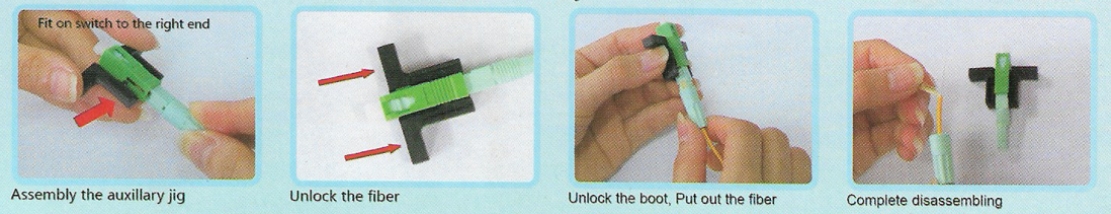

3.Disassembly







Packing:

Opp bag/pc

100pcs/inner box

Inner box size:23*21*11.3cm

1000pcs/carton

Carton size:59*44*24.5cm

Weight:8.0 Kg
