Name: SC-APC H-09 Type Quick Assembly Connector
Brand: Hangzhou Junpu Optoelectronic Equipment Co.,Ltd.

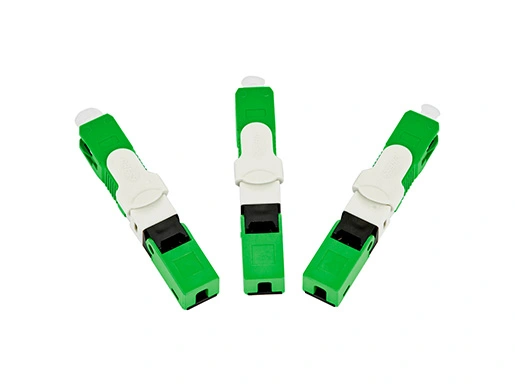

sc apc h 09 type quick assembly connector 01

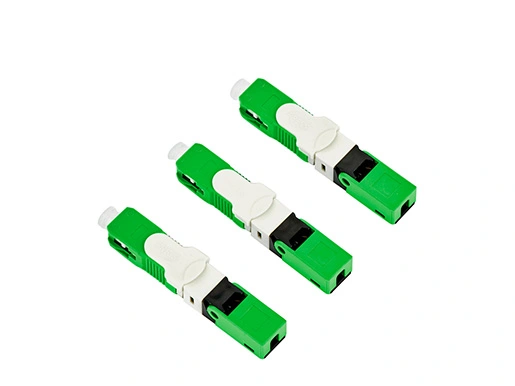

sc apc h 09 type quick assembly connector 02

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability. Applicable to 2*3,2*1.6 cables.

GET A QUOTE About SC-APC H-09 Type Quick Assembly Connector

SC-APC H-09 Type Quick Assembly Connector Specification Download

Specifications of SC-APC H-09 Type Quick Assembly Connector

Parameters	Value	Parameters	Value
Insertion Loss	≤ 0.3 dB	Repeatability (500 Mating Times)	ΔI.L. ≤ 0.3 dB
Return Loss	≥ 45dB	Temperature cycle	ΔI.L. ≤ 0.3 dB
Tensile strength	F>50N	Vibration test	ΔI.L. ≤ 0.3 dB
Operating Temperature	-20 ~ +75℃	Flooding test	ΔI.L. ≤ 0.3 dB
Storage Temperature	-40 ~ +85℃	Tensile strength	F>50N

SC-APC H-09 Type Quick Assembly Connector

Specifications of SC-APC H-09 Type Quick Assembly Connector

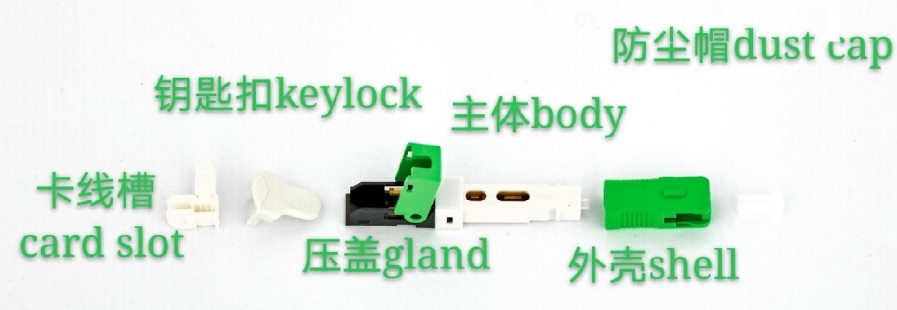

Product Components

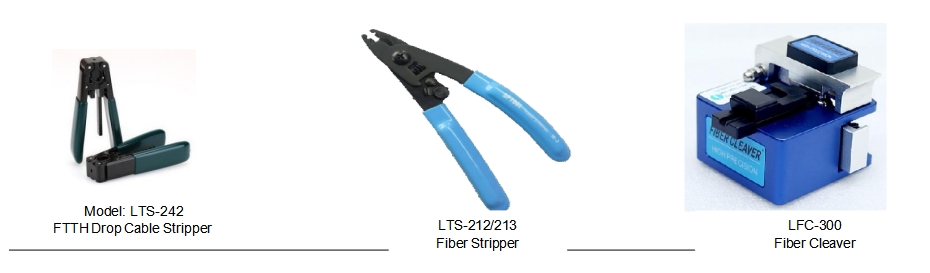

Necessory Tools
