This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting, handhole-mounting. The ambient temperature ranges from -40℃ to +65℃.
Outside dimension (LxWxH) | 460×182×120 (mm) |
Weight (excluding outside box) | 2300g-2500g |
Number of inlet/outlet ports | 2 (pieces) on each side (total 4 pieces) |
Diameter of fiber cable | Φ5—Φ20 (mm) |
Capacity of FOSC | Bunchy: 12—96(Cores) Ribbon: max. 144(Cores) |
Model Number | GJS-H015 Plastic Box |
Key Words | Horizontal Fiber Optic Splice Plastic Box |
Fiber Type | Heat-shrinkable Seal Style |
Scope | Aerial,Underground,Wall-Mounting,Wall-Mounting in Duct and Handhole |
Ambient Temperature | -40℃~+65℃ |
Box Material | Polycarbonate |
Weight | 3.05~4.6Kgs |

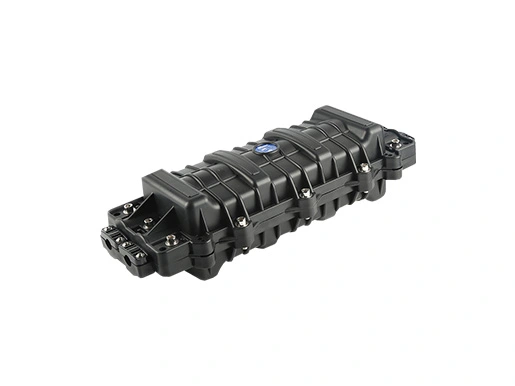

Product Name | Horizontal Fiber Optic Splice Closure Plastic Box |
The ambient tempreture ranges from -40°C to +65°C.
Holds up to 96 fibers.
Easy to re-enter.
Cable entry/exit ports.
Pressure testing valve and earth deriving device.
Intergrated seal, air tight and water proof.
Ideal for cable repair.
RoHS compliant.
