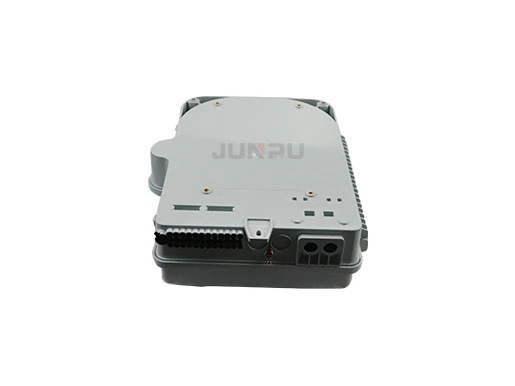

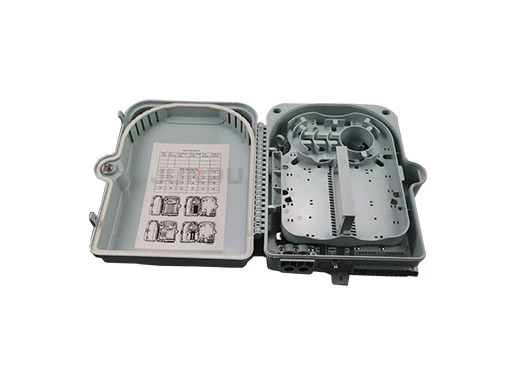

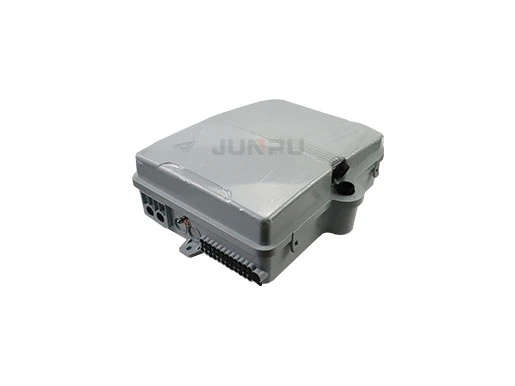

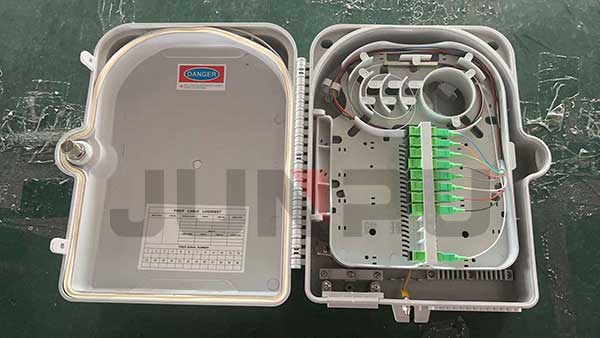

FODB-24B 24 Core Outdoor Fiber Termination Box

FODB-24B 24 Core Outdoor Fiber Termination Box

FODB-24B fiber access termination box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.


Specifications of FODB-24B 24 Core Outdoor Fiber Termination Box


Model

Description

Size(Pic 1)

Max Capacity

Installation Size(Pic 2)

A*B*C(mm)

Splitter

Splice

A*B (mm)

FAT-24A

Distribution Box

320*240*100

16

24

190*298

FAT-16A

Distribution Box

320*240*100

16

16

190*298

FAT-12A

Distribution Box

225*200*65

8

12

168*210

FAT-8C

Distribution Box

225*200*65

8

8

168*210


Features of FODB-24B 24 Core Outdoor Fiber Termination Box

  • Water-proof design with IP-66 Protection level.

  • Integrated with splice cassette and cable management rods.

  • Manage fibers in a reasonable fiber radius condition.

  • Easy to maintain and extend the capacity.

  • Fiber bend radius control more than 40mm.

  • Suitable for the fusion splice or mechanical splice.

  • 1*8 and 1*16 Splitter can be installed as an option.

  • Efficient cable management.

  • 24 ports cable entrance for drop cable.


Application of FODB-24B 24 Core Outdoor Fiber Termination Box

  • Widely used in FTTH access network.

  • Telecommunication Networks

  • CATV Networks

  • Data communications Networks

  • Local Area Networks
