The speed outdoor 24port enclosure is designed to bring a high speed fibre connection and greater bandwidth closer to home and business. FTTH offers the user flexibility and the opportunity to 'future proof' end to end connectivity with the ever changing technology.
Model | FODB-24A |
Single fibre count (max) | 96 |
Splices (max) | 96 |
Heatshrink splice holders (max) | 96 |
Splice trays | 4 (4 x 24 fibre) |
Cable entry ports | 3 (14mm) |
Outlet ports | 24 (3-5mm) |
Outlet Grommets | 24 (3-5 mm) 3 (7 mm) |
3 (10 mm) | |
Adaptor holders | 24 |
Adaptor type | SC Simplex / LC Duplex |
Mounting application | Wall |
Dimensions Height Width Depth | 307mm 245mm 81mm |
Material | High Impact Plastic |
IP Rating | IP 65 |
Colour | Grey |
Indoor & outdoor use.
Compact design.
Hinged & lockable top cover.
UV & water resistant.
Cable entry access from bottom.
Inlet and outlet ports sealed with rubber grommets.

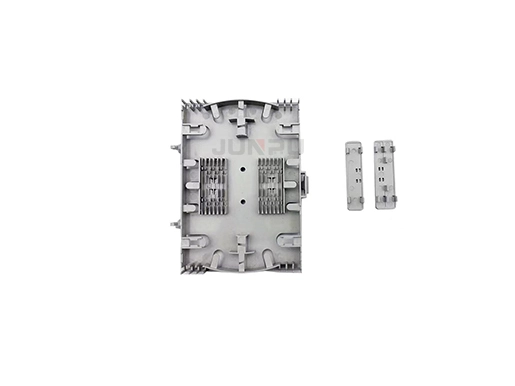

Integrated fibre splice cassettes.
Splicing & patching.
Splice protectors included.
Accommodating PLC metal tube splitter.
Wall Mount kit.
Fixing material included.
FTTx access networks – Home / Office
CATV, LAN & Optical fibre communication
