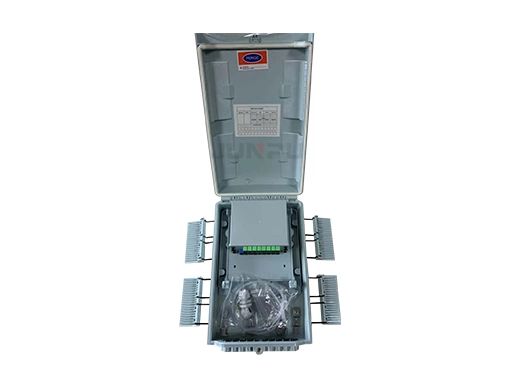

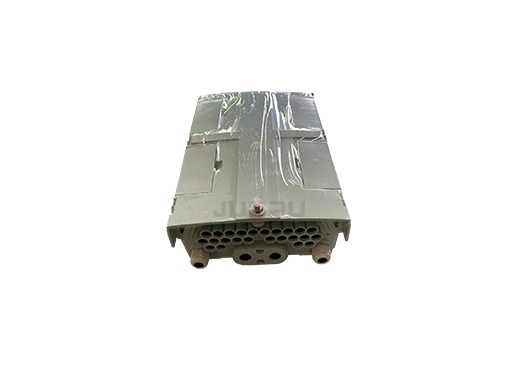

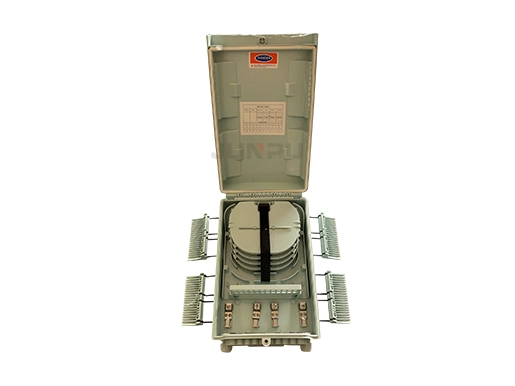

FATB-0424A 24 Core Outdoor Fiber Termination Box

FATB-0424A 24 Core Outdoor Fiber Termination Box

4 In 24 Out fiber access termination closure is able to hold up to 16subscribers and 96splicing points as closure. it is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Specifications of FATB-0424A 24 Core Outdoor Fiber Termination Box


MaterialSizeMax CapacityNos of AdaptorWightColor
ABS/PCA*B*C(MM)Splice 96 Fibers3pc of 1*8 PLC Splitter24pc of SC1.85kgGrey/black
340*220*95(4trays, 24 fiber/tray)


Features of FATB-0424A 24 Core Outdoor Fiber Termination Box

  • Water-proof design with IP-65 Protection Level.

  • Integrated with flap-up splice cassette and adaptor holder.

  • All stainless metal plate and anti-rusting bolts, nuts.

  • Fiber bend radius control more than 40mm.

  • Suitable for the fusion splicer or mechanical splice.

  • 3Pcs of 1*8 Splitter can be installed as an option.

  • Mechanical sealing structure and mid-span cable entry.

  • 24 ports cable entrance for drop cable.

  • 24 adapter for drop cable patching.


Application of FATB-0424A 24 Core Outdoor Fiber Termination Box

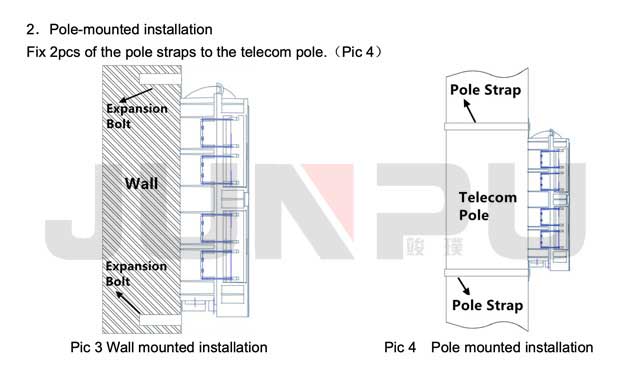

  • Wall mounting and pole mounting installation

  • FTTH pre-installation and filed installation

  • 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable


Standard Accessories of FATB-0424A 24 Core Outdoor Fiber Termination Box

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves hose clamp, cable tube, wrench, cover, holder, rubber seal for cable entrance.


Optional Accessories of FATB-0424A 24 Core Outdoor Fiber Termination Box

Pole ring.
