Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics

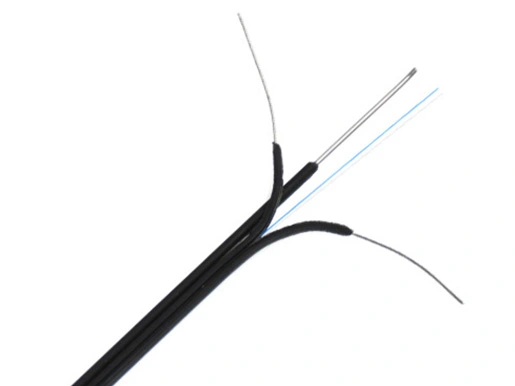

Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

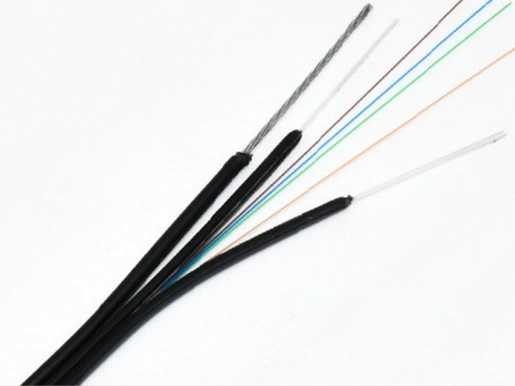

single metallic strength member makes optical cable having good tensile performance
Optical cable has simple structure, light weight and strong practicability
unique groove design, Easy peeled off and splice, simplify the installation and maintenance
Low smoke halogen-free flame-retardant sheath, pro-environment
Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | MAX | Typical value | MAX | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Model No. | Count | (mm) | (kg/km) | (N) | (N/100mm) | (mm) |
GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |

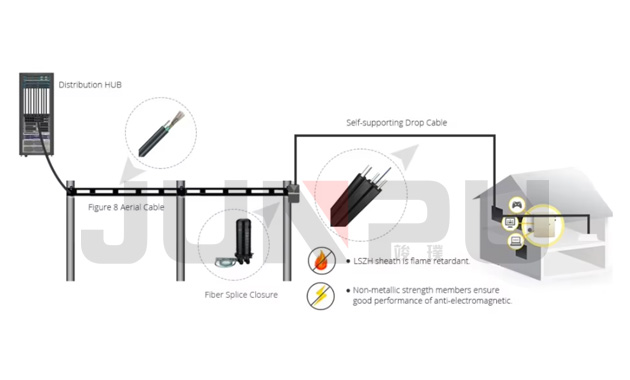

Outdoor wiring system
FTTH, terminal system
Indoor shaft, building wiring
