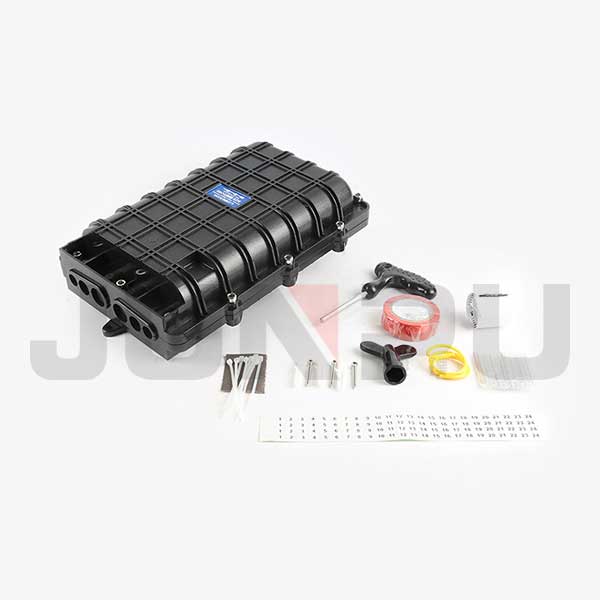

GJS-H002 Optic Fiber Splice Enclosure

GJS-H002 Optic Fiber Splice Enclosure

Specifications of GJS-H002 Optic Fiber Splice Enclosure



Outside dimension (LxWxH)

320×210×85 (mm)

Weight (excluding outside box)

2650g – 2800g

Number of inlet/outlet ports

3 (pieces) on each side

Diameter of fiber cable

Φ8—Φ20 (mm)

Capacity of FOSC

Bunchy: 12—120 (Cores)




Characteristics of GJS-H002 Optic Fiber Splice Enclosure


  • Half design with mechanical sealing structure.

  • High quality industrial plastic body material.

  • 6 round holes for cable entrance,3 in 3 out.

  • Suitable for cable diameter 8mm-20mm.

  • Support aerial,underground,pipeline,man holes,hand holes.

  • Protection level reaches IP68.

  • Replaceable high quality rubber seal for repeatedly opening.

  • Maximum capacity: 96 fibers.

  • Number of splice trays: 4 pcs x 24F.



Applications Environment of GJS-H002 Optic Fiber Splice Enclosure


  • This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

  • The scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65℃.
