GYTA53 24 core

GYTA53 24 core

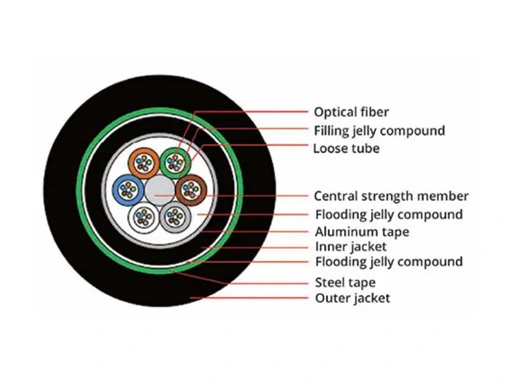

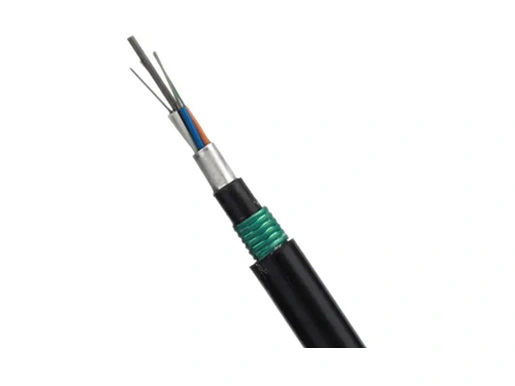

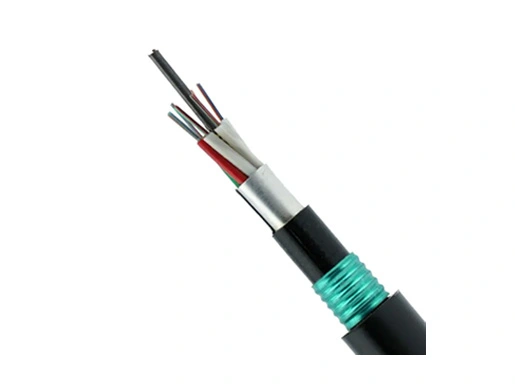

The GYTA53 cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The center of the core is a metal reinforced core. For some cores, the metal reinforced core needs to be extruded with a layer of polyethylene (PE). The loose tube (and the filling rope) is twisted around the center reinforcing core into a compact and round core, and the gap in the core is filled with a water blocking filler. After the plastic coated aluminum strip (APL) is longitudinally wrapped, a polyethylene inner sheath is extruded, and the double-coated plastic strip (PSP) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.


Specifications of GYTA53 24 core

Cable model

Number of fibers

Number of casings

Number of filled ropes

Cable diameter

mm

Cable weight

Kg/Km

Allowable tensile force long/short Term

N

Allow crushing force long/short Term

N

Bending radius static / dynamic

mm

GYTA53-2~6 cores

2~6

1

4

9.7

90

600/1500

300/1000

10D/20D

GYTA53-8~12 cores

8~12

2

3

9.7

90

600/1500

300/1000

10D/20D

GYTA53-14~18 cores

14~18

3

2

9.7

90

600/1500

300/1000

10D/20D

GYTA53-20~24

cores

20~24

4

1

9.7

90

600/1500

300/1000

10D/20D

GYTA53-26~30

cores

26~30

5

0

9.7

90

600/1500

300/1000

10D/20D

GYTA53-32~36

cores

32~36

6

0

10.2

104

1000/3000

300/1000

10D/20D

GYTA53-38~48

cores

38~48

4

1

11.0

117

1000/3000

300/1000

10D/20D


Characteristics of GYTA53 24 core

  • Has good mechanical properties and temperature characteristics.

  • The loose tube material itself has good water resistance and high strength.

  • The tube is filled with a special grease to protect the fiber.

  • Good pressure resistance and softness.

  • The following measures are taken to ensure the waterproof performance of the cable.

  • Single wire center reinforcement core.

  • The loose tube is filled with a special waterproof compound.

  • Complete cable core filling.

  • Plastic coated aluminum tape (APL) moisture barrier.

  • Double-sided coated steel strip (PSP) improves the moisture resistance of the cable.

  • Good water blocking material prevents longitudinal leakage of the cable.
