GYTA 48 core

GYTA 48 core

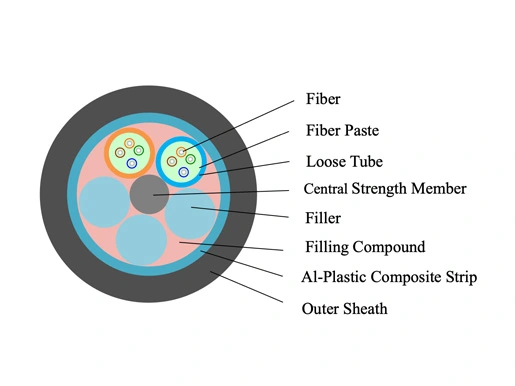

The structure of GYTA JUNPU cable is to insert 250μm fiber into the loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the core is a metal reinforced core. For some cores, a layer of polyethylene (PE) is required to be extruded outside the metal reinforced core. The loose tube (and the filling rope) is twisted around the center reinforcing core into a compact and round core, and the gap in the core is filled with a water blocking filler. The plastic coated aluminum strip (PL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Introductions of GYTA 48 core

Product name: Outdoor Fiber Optic Cable GYTA

Color: Black Fiber Optic Cable

Use scope: overhead or buried

To strengthen the steel wire: Bronze phosphating wire

Some Fiber Optic Cable: 4~288core Fiber Optic Cable

Skin material: sheath

Allow the flattening force: 1000 n/10 cm

Temperature characteristic: storage temperature 40℃~+70℃

Installation temperature: 20℃~+70℃


Specifications of GYTA 48 core

Cable model

Number of fibers

Number of casings

Number of filled ropes

Cable diameter

mm

Cable weight

Kg/Km

Allowable tensile force long/short Term

N

Allow crushing force long/short Term

N

Bending radius static / dynamic

mm

GYTA-2~6 Core

2~6

1

4

9.7

90

600/1500

300/1000

10D/20D

GYTA-8~12 Core

8~12

2

3

9.7

90

600/1500

300/1000

10D/20D

GYTA-14~18 cores

14~18

3

2

9.7

90

600/1500

300/1000

10D/20D

GYTA-20~24

cores

20~24

4

1

9.7

90

600/1500

300/1000

10D/20D

GYTA-26~30

cores

26~30

5

0

9.7

90

600/1500

300/1000

10D/20D

GYTA-32~36

cores

32~36

6

0

10.2

104

1000/3000

300/1000

10D/20D

GYTA-38~48

cores

38~48

4

1

11.0

117

1000/3000

300/1000

10D/20D



Characteristics of GYTA 48 core

  • Has good mechanical properties and temperature characteristics.

  • The loose tube material itself has good water resistance and high strength.

  • The tube is filled with a special grease to protect the fiber.

  • The specially designed compact cable structure effectively prevents the casing from retracting.

  • The PE jacket has excellent UV radiation resistance.

  • The following measures are taken to ensure the waterproof performance of the cable.

  • Single wire center reinforcement core.

  • The loose tube is filled with a special waterproof compound.

  • Full core filling.

  • Plastic coated aluminum tape (APL) moisture barrier
