Items | Specifications | |
Fiber Count | 4-24 | |
Fiber Type | G.652D | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue、Orange、Green、Brown、Gray、White | |
Loose Tube | Dimension | 2.0±0.1mm |
Material | PBT | |
Color | Blue、Orange、Green、Brown | |
Filler | Dimension | 2.0±0.1mm |
Material | PP | |
Color | Natural | |
Central Strength Member | Material | FRP |
Dimension | 2.1±0.1mm | |
Outer Sheath | Dimension | 9.9±0.5mm |
Material | PE | |
Color | Black | |
Fiber Attenuation coefficient in Cable | dB/km(1310nm) | ≤0.36dB/km |
dB/km(1550nm) | ≤0.22dB/km |

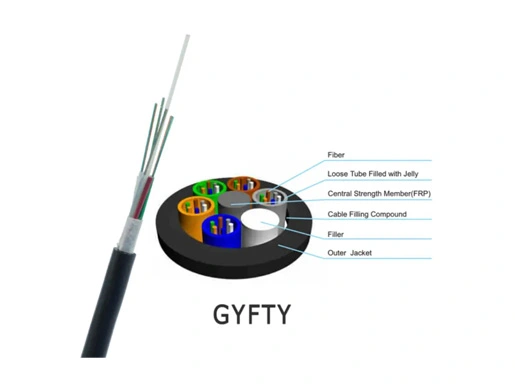

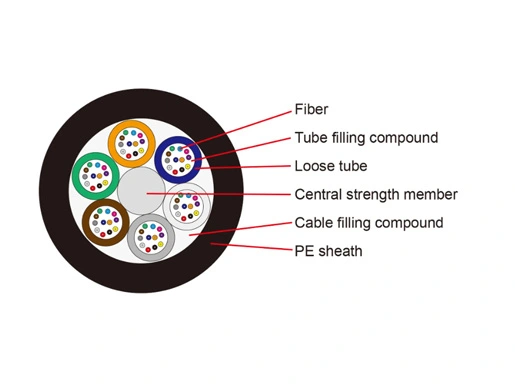

Central Strength Member (CSM): glass fiber reinforced plastic rod (FRP), with PE sheath covering when needed.
Buffer Tube: PBT plastic material, containing 6 fibers and filled with a suitable water tightness compound.
Filler Elements: nature PP plastic rods, when needed.
Stranding: loose tubes (and fillers), SZ stranded around the CSM.
Longitudinal Water Tightness: dry core with water swellable elements.
Glass yarns: anti-rodent
Ripcord(s): 1 polyester ripcord under sheath.
Outer Sheath: PE
