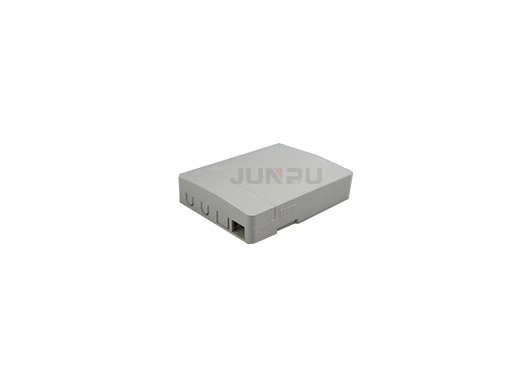

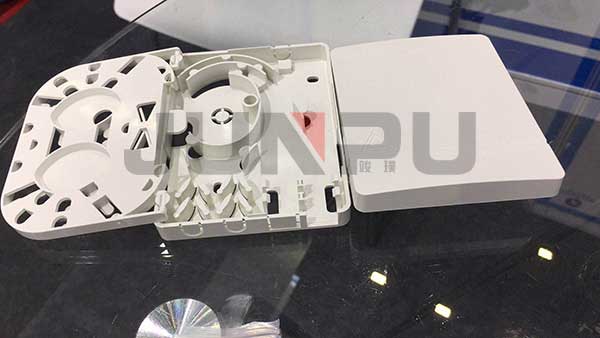

JUNPU fiber optic factory produces 2 Core Fiber Optic Rosette Box, model name is FRB-2B-1. The fiber rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with the patch cable in the FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
| Material | Size | Max Capacity | Mounting way | Weight | Color | Scope of applicatin | |
| PC+ABS | 105x82x21mm | SC 2 ports | LC 4 ports | Wall mounting | 0.4kg | White | 30x2.0mm drop cable or indoor cable |
Dust-proof design with IP-45 Protection level.

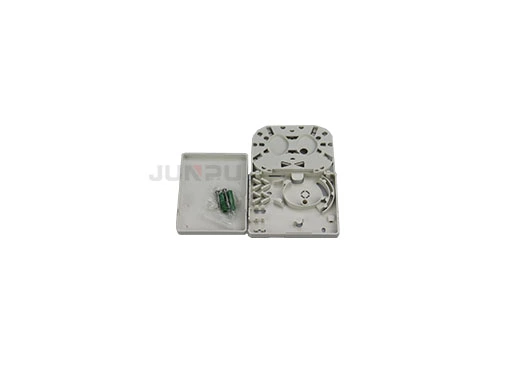

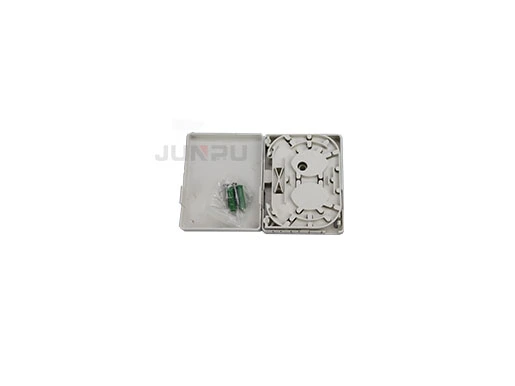

Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice. Embedded type surface, easy for installation and removal.

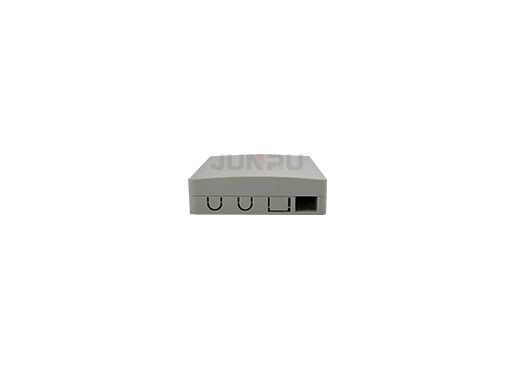

2 ports cable entrance for patch cable.
Widely used in FTTH access networks.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
